12V 5A Smart Fast Portable Battery Charger

SON-1205D

AGM/GEL Battery Charger

Features:

Three -stage charging method for the effcient(constant current,constant voltage,trickle)PWM charge mode

With battery -line detection,short circuit,overcurrent,overvoltage and reversepolarity protection and other function.

The display of rechargeable battery charging process directly reflects faciliate users to quickly underst and the current state of the battery.

INQUIRE NOW

SEND ENQUIRY

Specifications

12v 5a Car battery charger
Model	SON-1205D
Input Voltage	100V-240V
Output Voltage	12V
Rated Frequency	47-63HZ
Charger Current	5A
Charger Mode	Three-Phase
Power factor	≥0.85
Full load efficiency	≥ 87%
Mechanical shock and quake-proof degree	Agree with the SAEJ1378 requirements
Temperature range	-30−+90℃

Video description

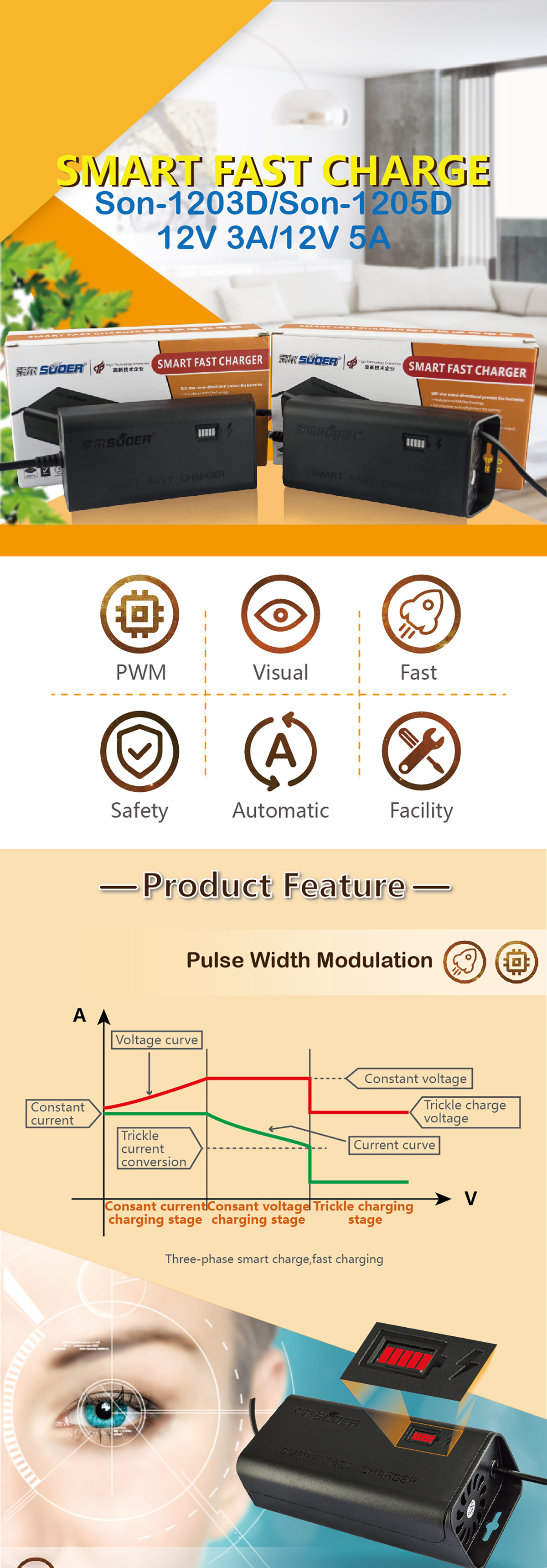

Three-phase charging mode

Constant current mode: When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.

Constant voltage mode: Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.

Floating charge mode: When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.

12V 5A Smart Fast Portable Battery Charger

SON-1205D

Features:

SEND ENQUIRY

Specifications

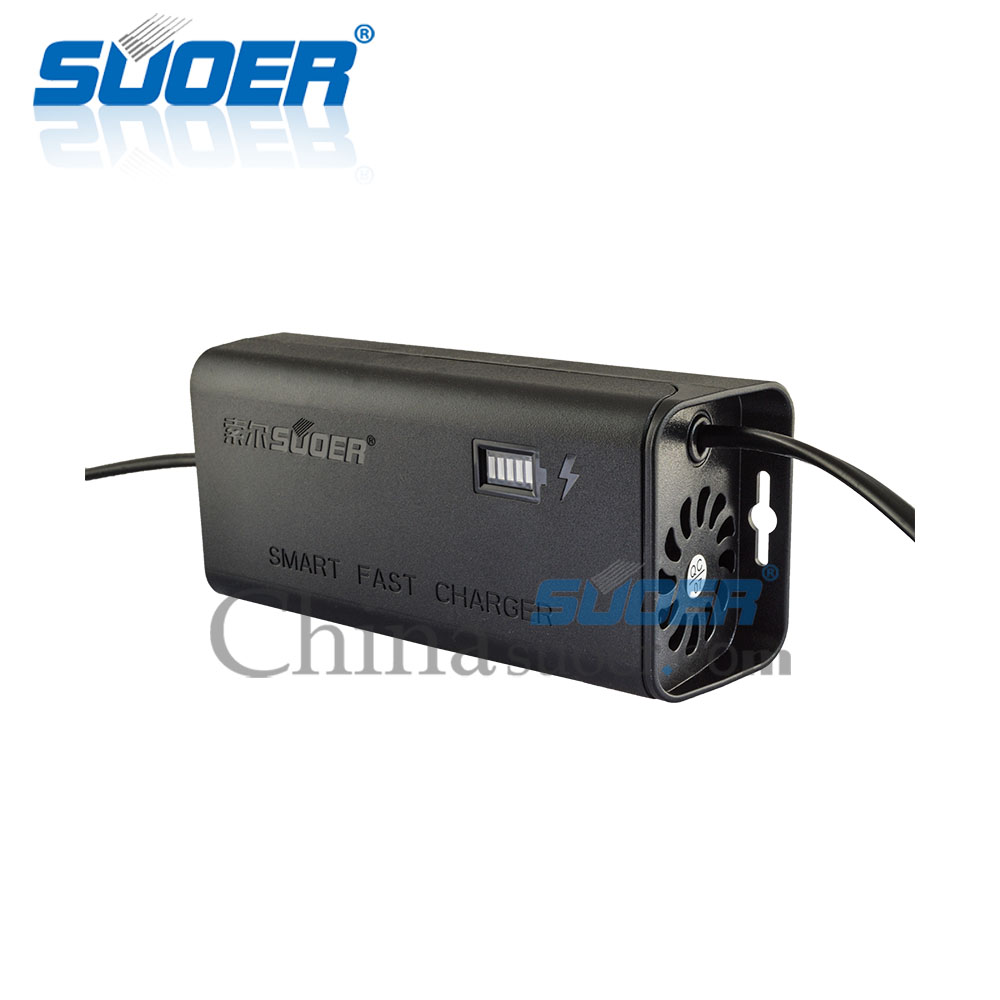

Product Photos
