48V 8.9A Fast Electric Bike Car Battery Charger

SON-4880D

Products

Features:

Adopt PWM three-step fast charging mode

Applicable for 48V/60V/72V electric viecles:Electric tricycles ,Electric cars ,Electric lift trucks ,Electric pallet trucks ,Forklift trucks, Golf carts,Electric sightseeing cars ,Electric tour buses and electric cars, and small generator set,etc.

Input voltage AC 220V±20%

LED screen displays voltage out, current, capacity, parameter and status.

Output charging current:48V/13A,60V/11A,72V/9A

INQUIRE NOW

SEND ENQUIRY

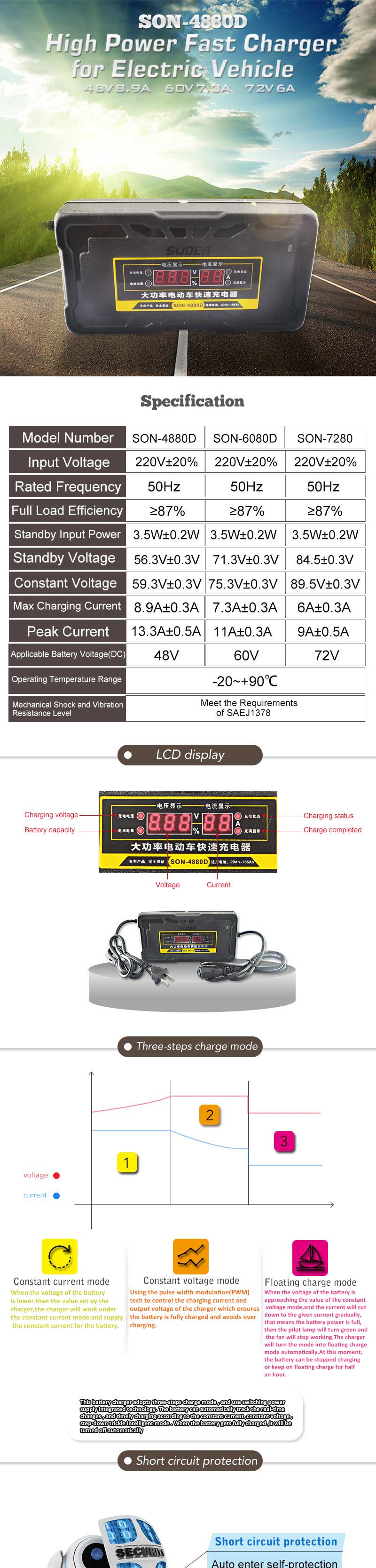

Specifications

High-power Fast Charger for Electric Car
Model Number	SON-4880D	SON-6080D	SON-7280
Input Voltage	220V±20%	220V±20%	220V±20%
Rated Frequency	50Hz	50Hz	50Hz
Full Load Efficiency	≥87%	≥87%	≥87%
Standby Input Power	3.5W±0.2W	3.5W±0.2W	3.5W±0.2W
Standby Voltage	56.3V±0.3V	71.3V±0.3V	84.5±0.3V
Constant Voltage	59.3V±0.3V	75.3V±0.3V	89.5V±0.3V
Max Charging Current	8.9A±0.3A	7.3A±0.3A	6A±0.3A
Peak Current	13.3A±0.5A	11A±0.3A	9A±0.5A
Applicable Battery Voltage(DC)	48V	60V	72V
Operating Temperature Range	-20~+90℃
Mechanical Shock and Vibration Resistance Level	Meet the Requirements of SAEJ1378

Video description
1.This battery charger adopts three-steps charge mode , and use switching power supply integrated technology. The battery can automatically track the real-time changes , and timely charging according to the constant current ,constant voltage ,step-down trickle intelligent mode . When the battery gets fully charged ,it will be turned off automatically.

2.With short circuit protection ,when the power is bad in short circuit ,the charger will protect automatically .

3.With fast charging speed , low battery dehydration rate,not overcharging

4.This product is a dedicated battery charger for electric vehicle.

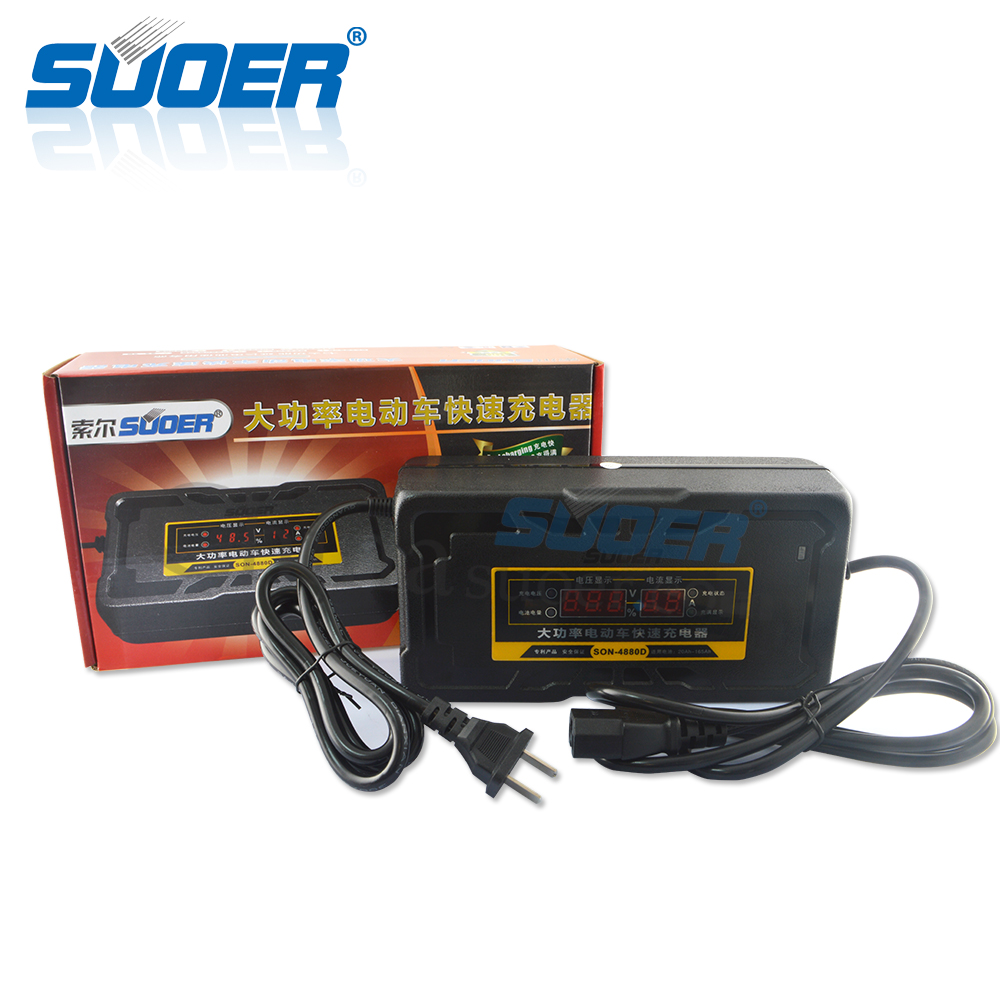

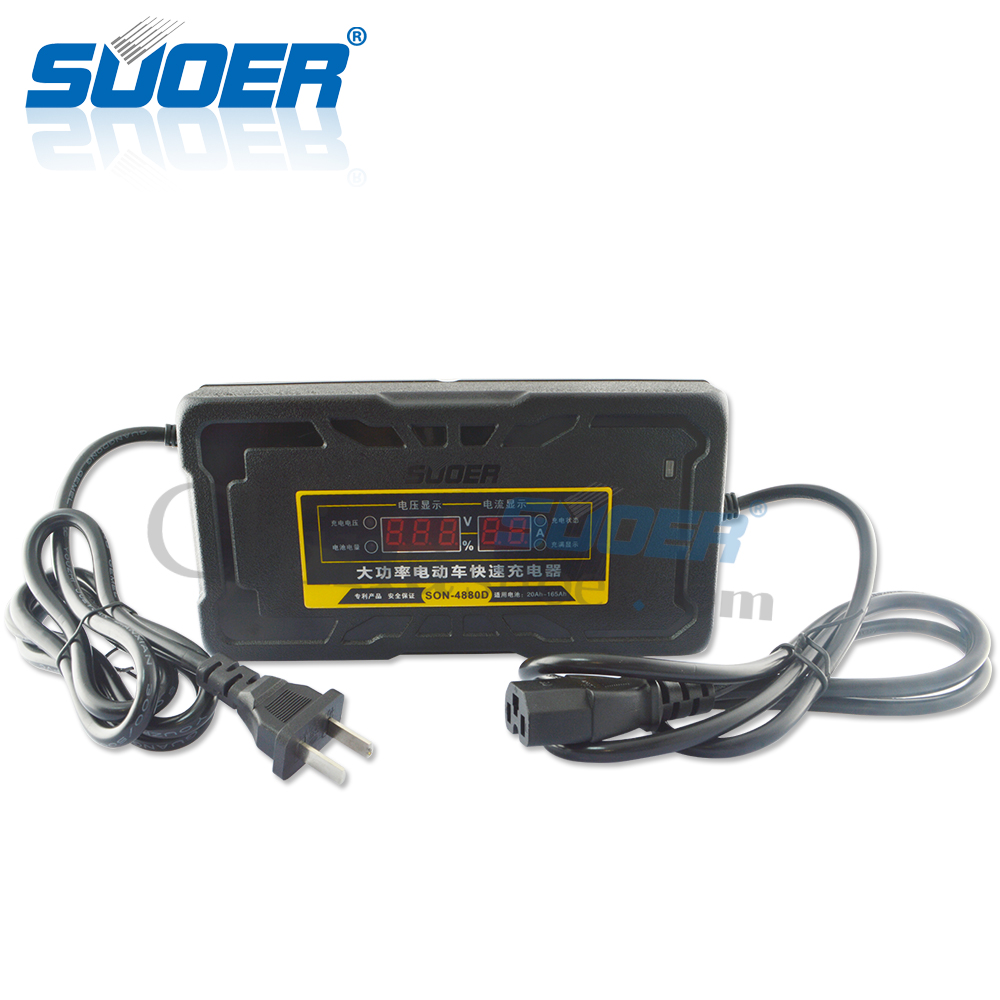

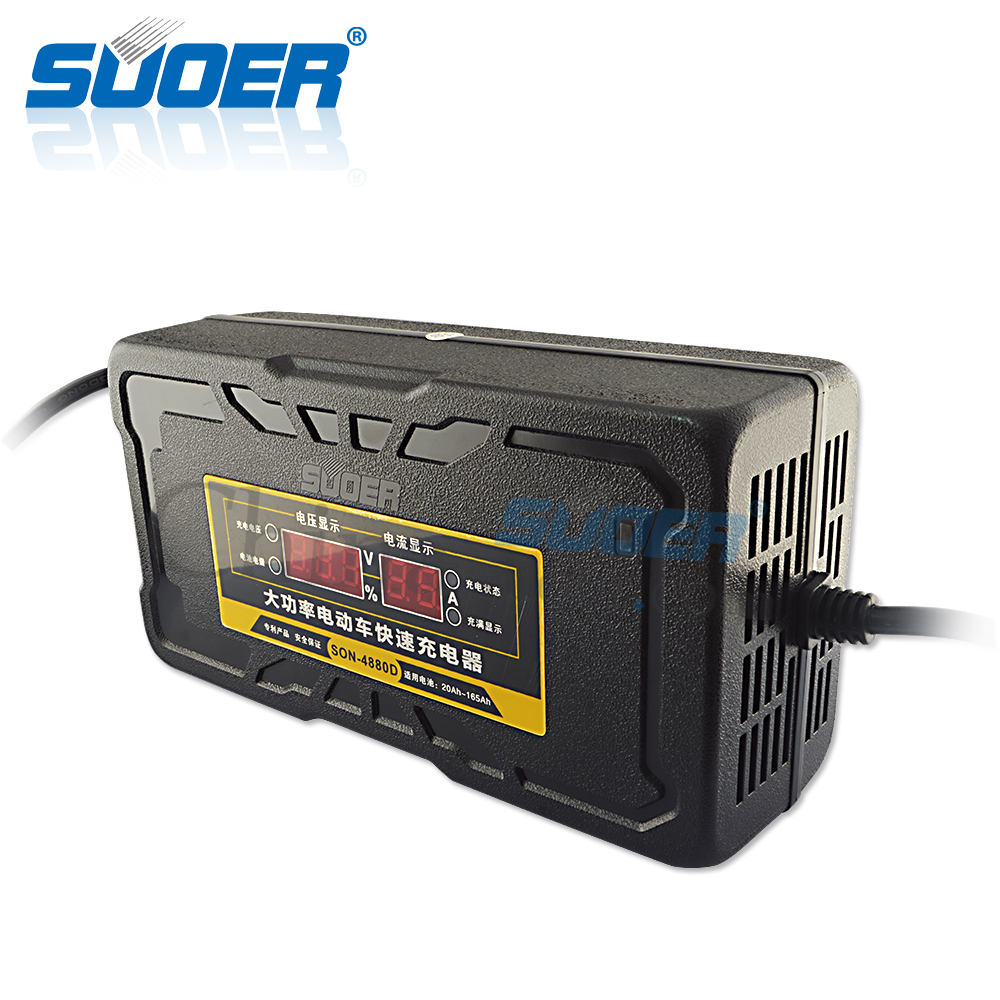

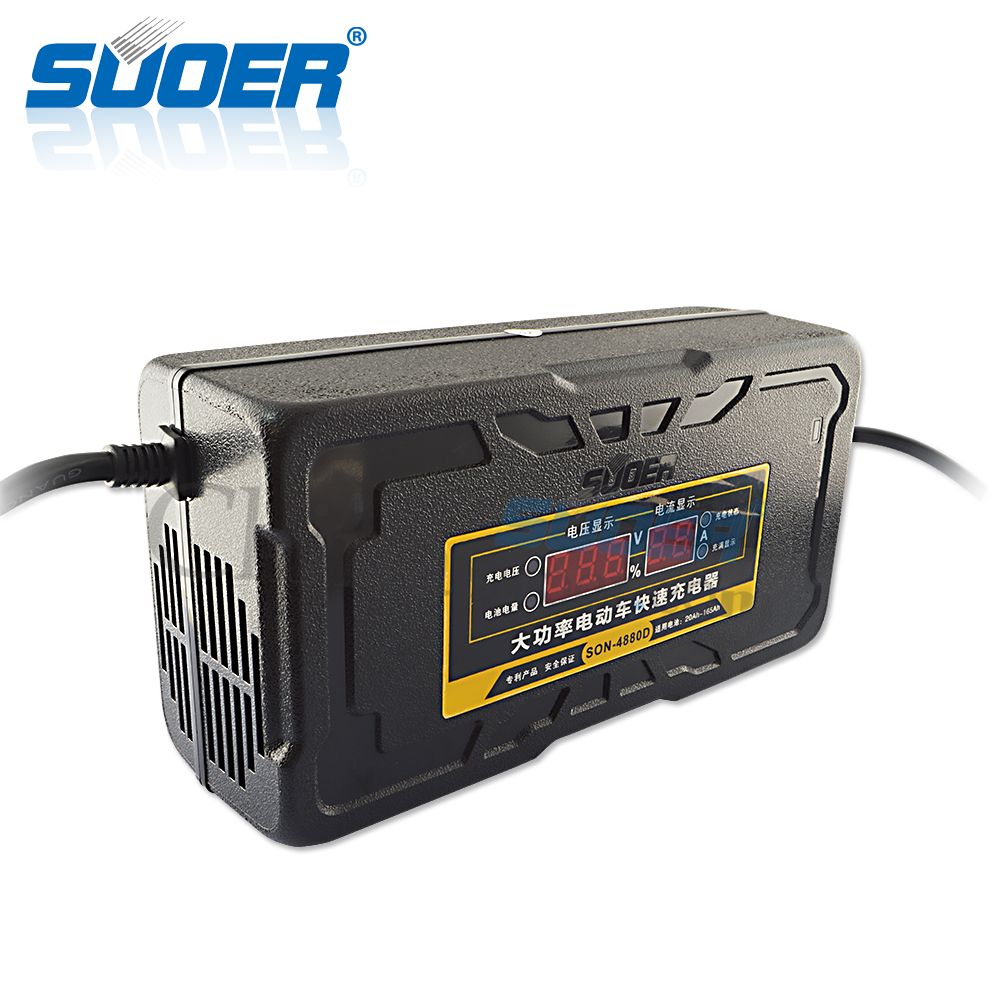

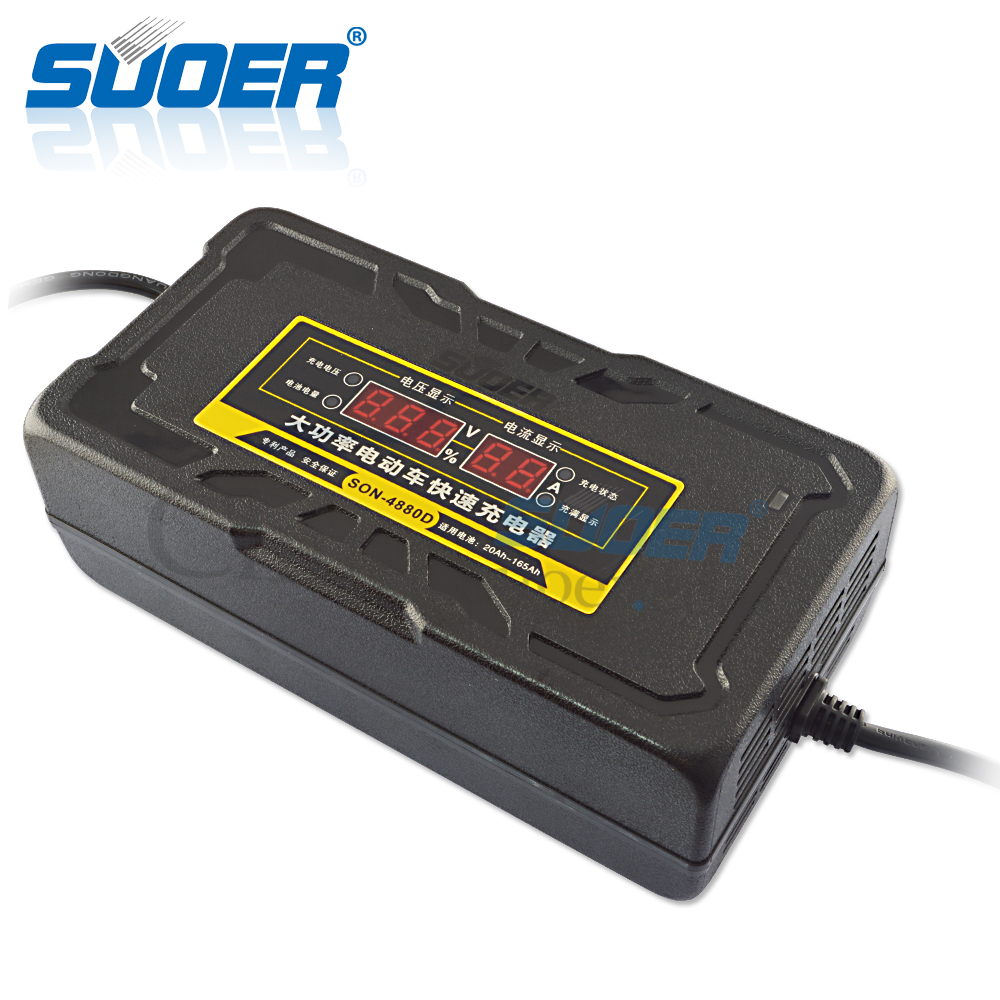

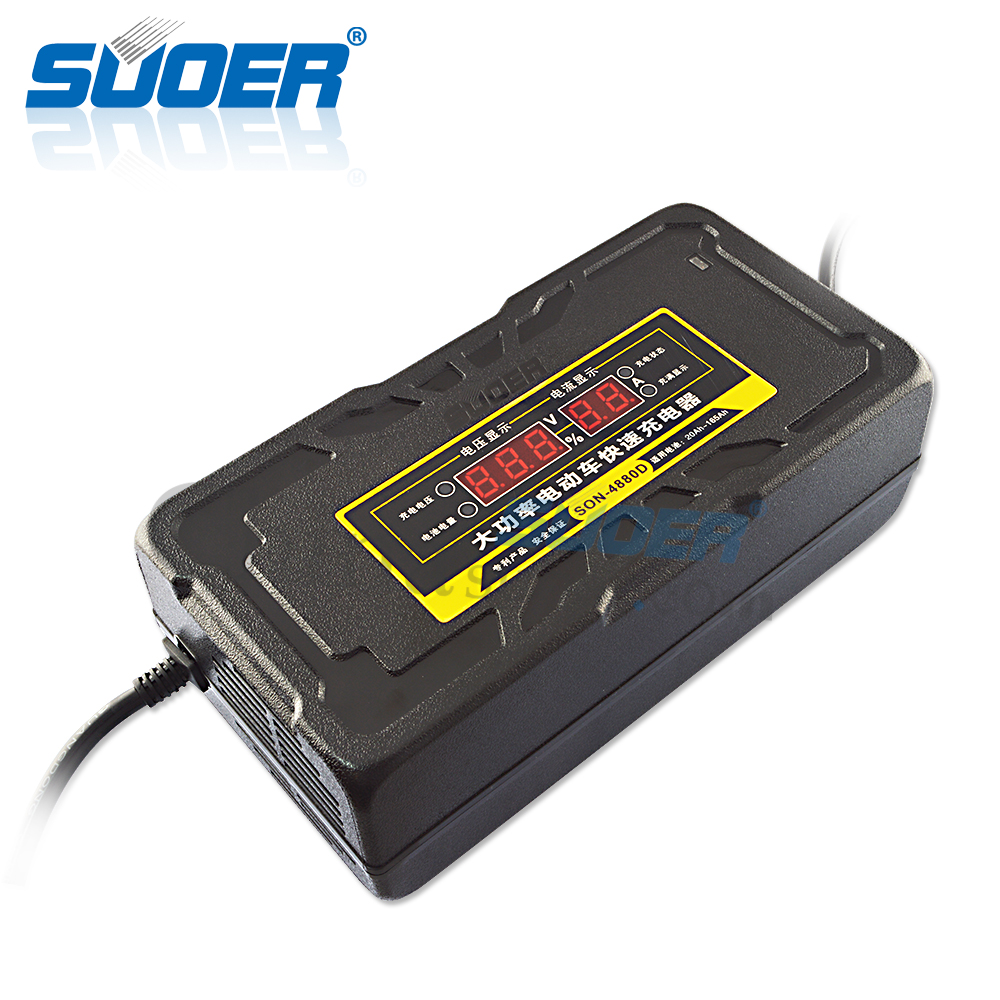

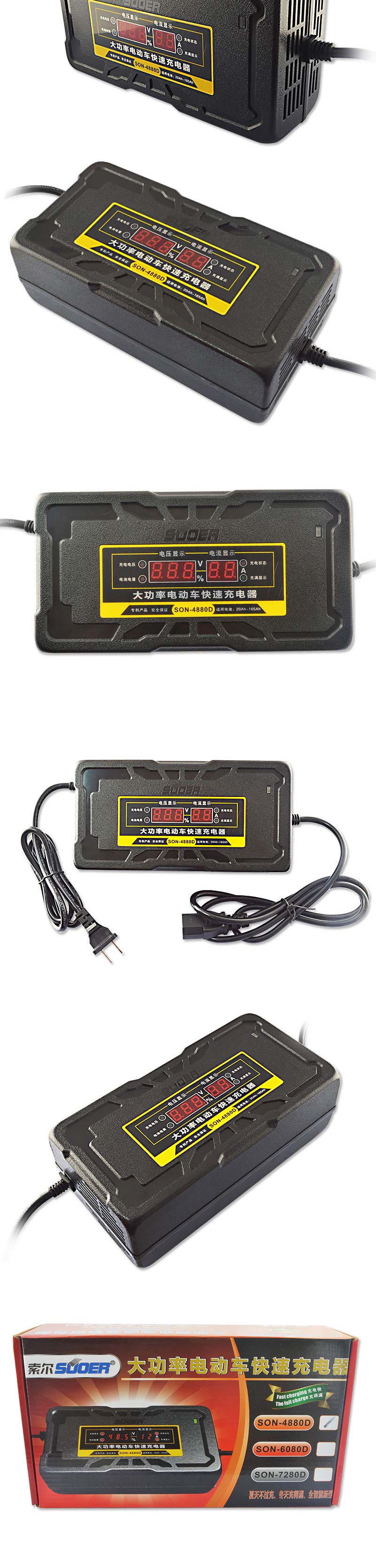

Product Photos
