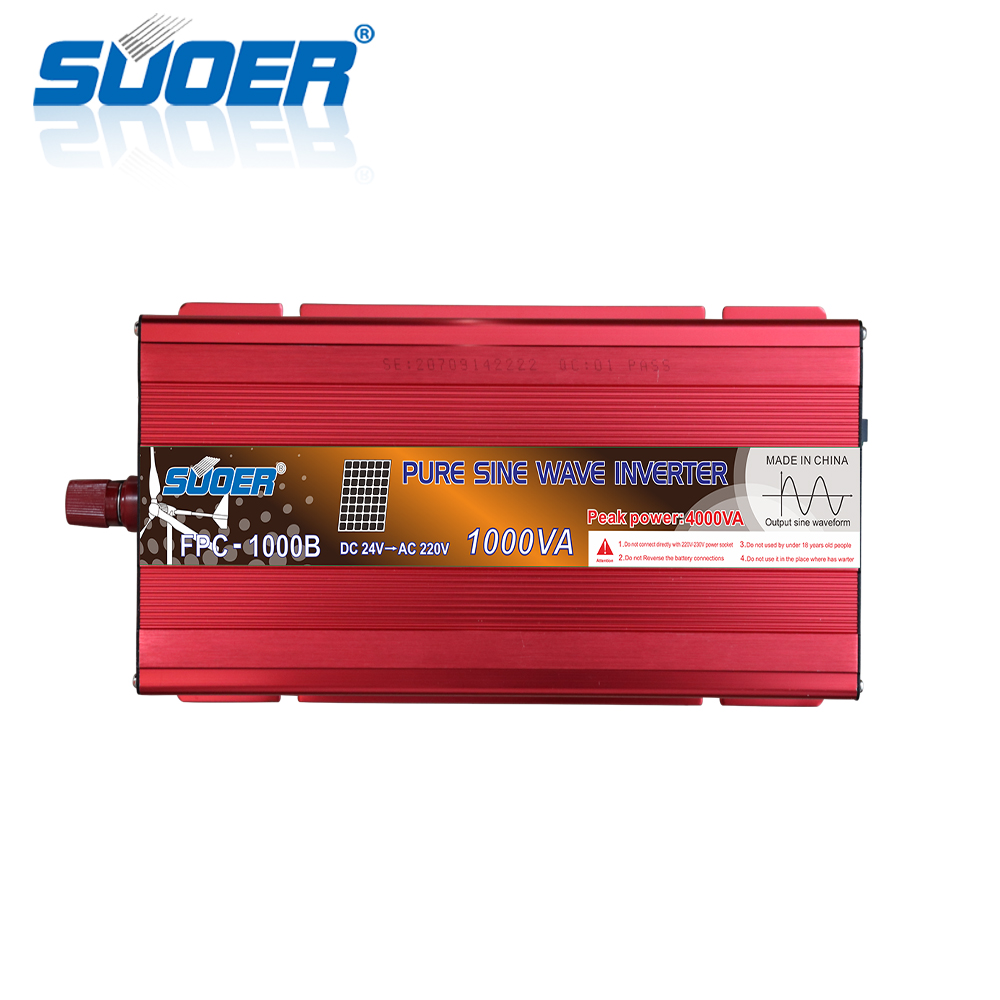

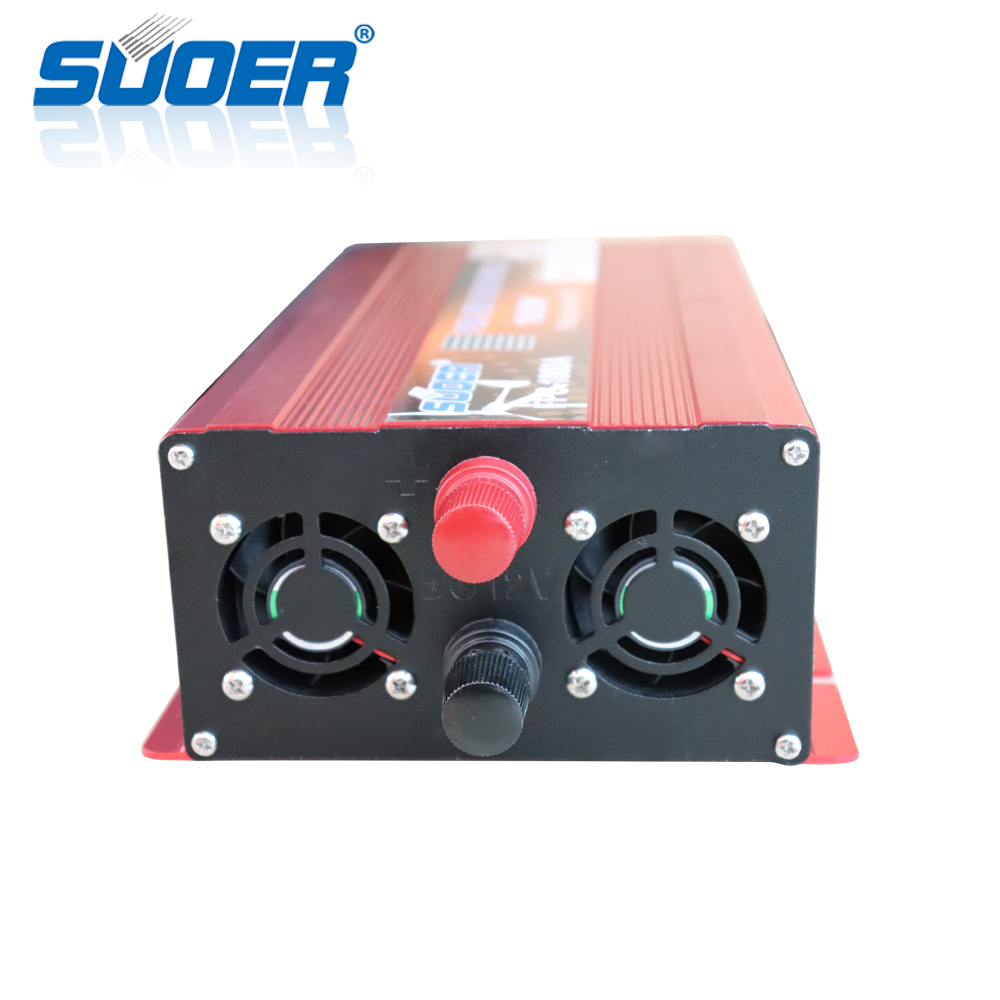

FPC-1000B

Suoer wholesale inverter 1000 watt 220v 24v dc to ac manufacturer pure sine wave inverter

FPC-1000B

Sine Wave Inverter

Features:

High conversion efficiency, smart soft start function

Multiple safe protections

Input and output are completely independent

Smart, light,and portable,designed for home use

Universal socket, suitable for all kinds of plugs

Pure sine waveform output

Applicable for resistive/sensitive loads

High-procision voltage stability technology

Aerospace-grade silence technology

100% pure sine wave output waveform: designed for sensitive loads(resistive load)

With the technology of CPU centralized control and SMD inside

True sine wave output (Total Harmonic Distortion(THD) < 3%)

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model FPC-1000A FPC-1000B FPC-1000F
Peak power 2000W(1S)
Rated power 1000W
Output waveform Pure sine wave
Output voltage 220V/230±5V
Harmonic distortion <3%(Impedance load)
Output frequency 50Hz(or 60Hz)
Standby current <0.9A <0.4A <0.3A
Conversion efficiency 80%-85%
Rated voltage 12V 24V 48V
Maximum input current 120A 60A 30A
Input voltage range 9V-16V 18V-32V 38V-62V
Under voltage protection 9.5V±0.5V 19.9V±0.2V 40.2V±0.2V
Under voltage tip 10.2V±0.5V 20.9V±0.2V 42.2V±0.2V
Under pressure recovery 12.5V±0.5V 24.7V±0.2V 48.2V±0.2V
Over voltage protection 15V±0.5V 30.2V±0.2V 60.4V±0.2V
Over voltage recovery 14.8V±0.5V 29.8V±0.2V 60.1V±0.2V
High temperature protection Buzzer/LED warning
Output short circuit protection Buzzer/LED warning
Output overload Smart control
Load power factor 0.98
USB Output 5V 1A
Battery reverse protection No
Cooling way Temperature control
Working temperature -20~60°C
Storage temperature -20~80°C
Working humidity 10~90%(No condensation)
Size/CTN 44.5*39.5*32.5cm
G.W./CTN 14.5kg
Packing 4Pcs/CTN


Video Tutorial

This solar power inverter is extraordinarily designed for home use,which can convert DC 12V/24V of portable power supply to AC 110V/220V/230V and it works for almost all the household electrical resistive appliances such as MP3/MP4 player,cell phone, laptop, emergency light, electric blanket, electric shaver, electric cooker,digital camera, digital video,CD/DVD player,XBOX/PS4 game player, ordinary electric lamps, bulb,fluoresent light, rice cooker,electric iron,desktop computer, graphoscope,fax machines, printers, LCD TV, electric fans, cell phone chargers, electric iron , drinking fountain,hair dryer and so on.(Note:Only pure sine wave inverter can run sensitive electric appliances that are including refrigerator, washing machine,microwave oven, induction cooker, electric drill, compressor, air conditioner, mercury lamp, sodium lamp and so on)
