SUOER solar energy system 5kw10kw 15kw off grid solar power system for Europe

off grid solar energy system for Europe

SUOER solar energy system 5kw10kw 15kw off grid solar power system for Europe

Off Grid Solar System

Features:

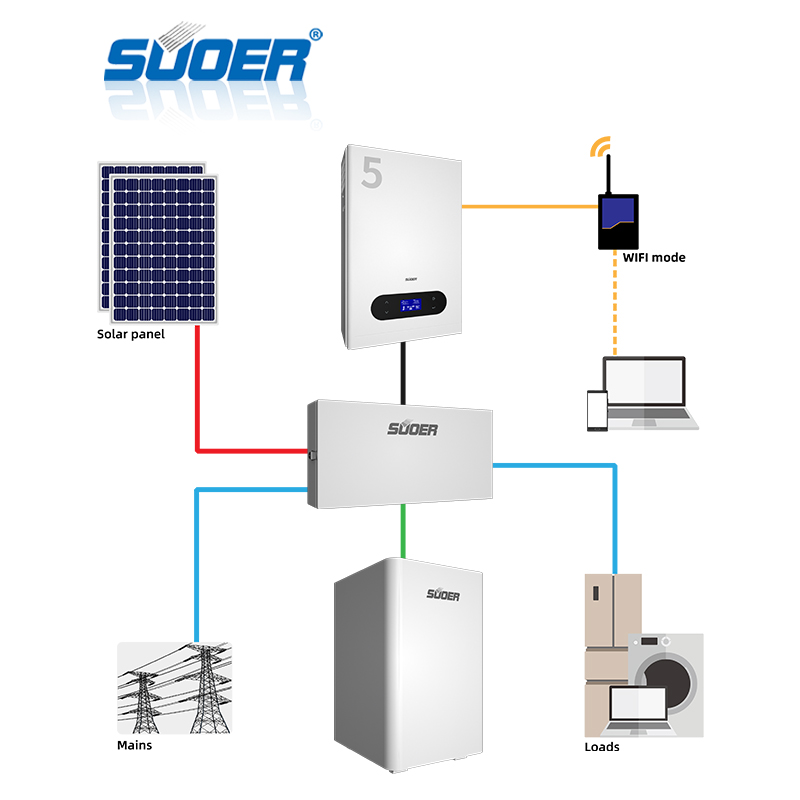

Home Hybrid Energy Storage System
Features
• Can be connected to single-phase AC, 48V battery DC and 500V photovoltaic DC, and converted into single-phase 230V AC output
• AC input/PV input lightning protection function: Class II, In=20KA
• AC input/output protection function: overload/short circuit/leakage
• Compliant with CE LVD and EMC directives and EU ROHS directives
• Application: Household use of hybrid energy storage and power supply
INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Brand Name
SUOER
Model Number
Solar Home System
Application
Home
Controller Type
MPPT
Load Power (W)
3KW, 8KW, 5kW, 10KW
Output Voltage (V)
230VDC
Output Frequency
50Hz
Work Time (h)
24 Hours
Certificate
CE/ROHS
Product name

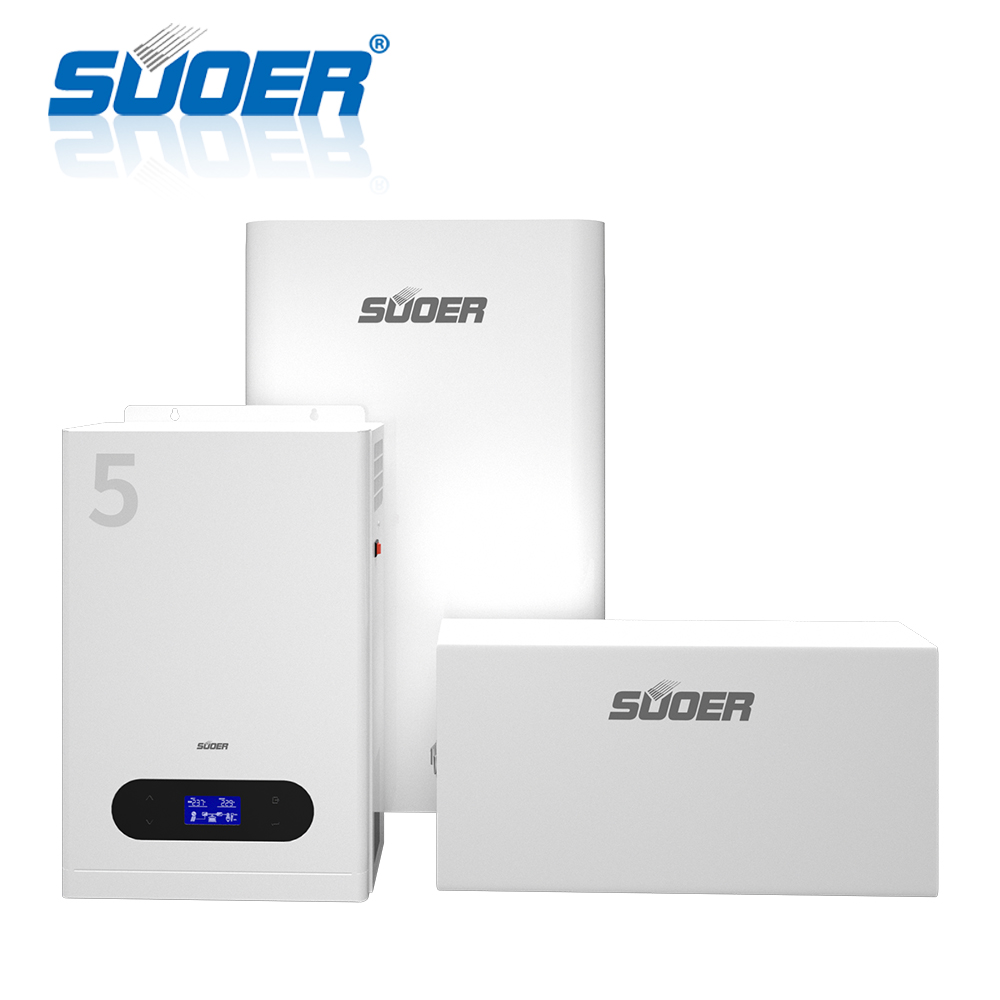

Off-Grid Home Hybrid Solar System
Application
Home hybrid energy storage
Off-grid inverter
VMS series
Energy storage battery cabinet
51.2V300AH
AC and DC distribution box
Standard
Off-grid inverter Size
300*400*100mm
Energy storage battery cabinet Size
502*832*602mm
AC and DC distribution box Size
600*500*200mm
Server
4G terminal/serial port

SUOER solar energy system 5kw10kw 15kw off grid solar power system for Europe

Off-Grid Inverter
AC input rated voltage: 230Vac
AC input voltage range: 90-280Vac (170-280Vac full power output)
AC input rated frequency: 50/60Hz
AC input maximum current: 30Aac
AC output rated voltage: 230Vac±5% MPPT tracking voltage range: 240-450Vdc (full power input)
AC output rated frequency: 50Hz
AC output rated power: 5000W
Maximum charging current: 80A Maximum discharge current: 104A
PV maximum input power: 4000W
PV array open circuit voltage: 500Vdc


Energy Storage Battery Cabinet
Battery Type: Lithium Iron Phosphate Battery
Rated battery voltage: 51.2VDC
Float voltage: 56.4VDC
Battery overvoltage protection value: 58VDC
Battery under-voltage protection value: 42VDC
Battery capacity: 100AH×3 groups
Maximum charging current: 100A
Maximum discharge current: 100A
Communication interface: RS485
Capacity indication 4 lights LED: 25%-50%-75%-100%
Charging working temperature: 0℃~60℃
Discharge working temperature: -20℃~60℃
Working humidity: 10%~95%RH


AC And DC Distribution Box
AC input circuit breaker: 32A/2P×1
AC input lightning protection: 1+1, In=20KA
AC output circuit breaker: 32A/2P×1
Battery access circuit breaker: 125A/2P×1
PV input circuit breaker: 16A/2P×1
Photovoltaic input lightning protection: 2+1, In=20KA

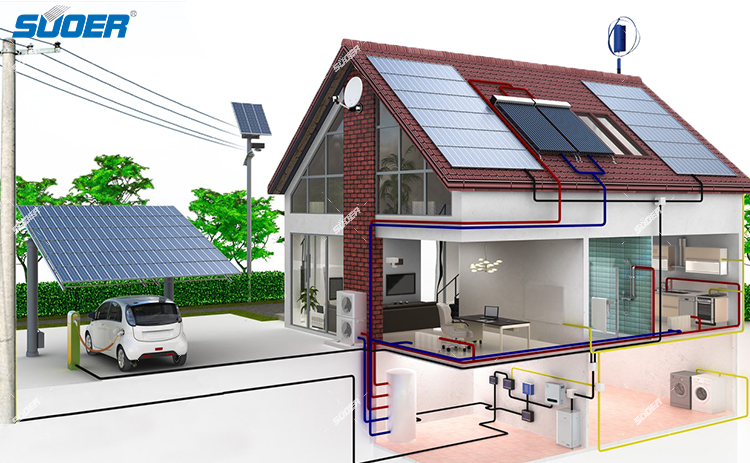

SUOER - Home Solar System
SUOER brand solar energy storage home system is suitable for European and American households, providing 3kw, 5kw, 10kw, 20kw, 30kw and other off-grid solar energy systems, which can effectively solve the energy crisis and get rid of the plight of insufficient power.

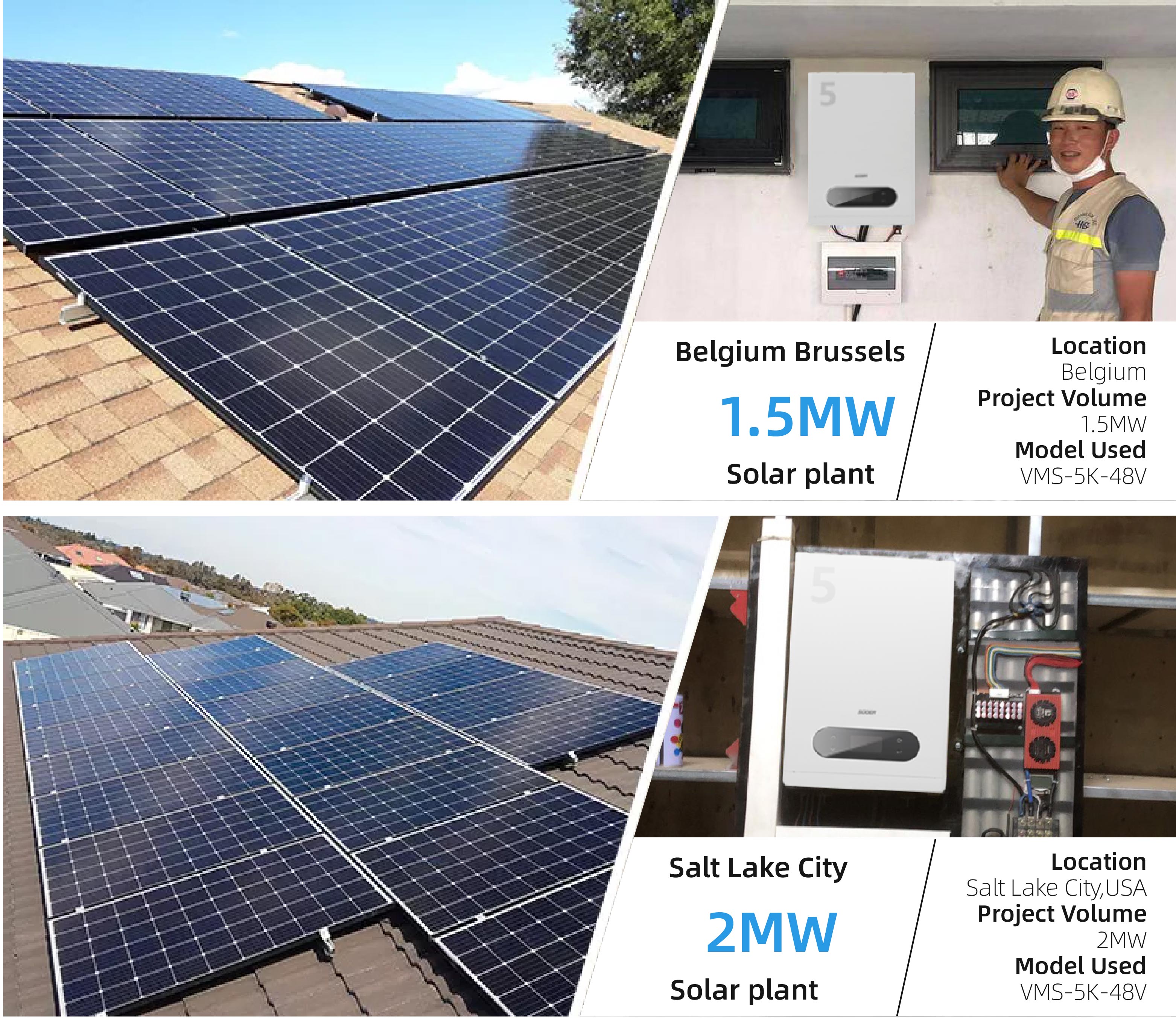

Solar System Project Case
Project -1:Belgium Brussels; 1.5MW Solar Plant; Project Volume 1.5MW; Model Used: VMS-5K-48V
Project -2:Salt Lake City; 2MW Solar Plant; Project Volume 2MW; Model Used: VMS-5K-48V
