MPS-5K-48

Suoer 12V 24V 48V 1000VA to 5000VA Pure Sine Wave Hybrid inverter With Solar Controller

MPS-5K-48

High Frequency Hybrid Inverter

Features:

Perfect sine waveform output (Specially designed to start up inductive loads such as refrigerators, motors, pumps, compressors and laser printers as well as electronic loads like TVs, Computers, power tool, etc.)

Built-in PWM(50A)/MPPT(25A-80A) solar charge controller.

Built-in AC charger 30A-60A

Selectable AC input voltage:170V-280V,90V-280V @50Hz/60Hz Auto Sensing

Cold start functionality(Be able to give output with full load connected without AC mains present.)

AC and solar input priority can be manually configurated.

Compatible to AC mains input and generator voltage input.

Transformerless design provides reliable power conversion in compact size.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

MODEL MPS-1K-24 MPS-3K-24 MPS-5K-48
Rated Power 1000VA/800W 3000VA/2400W 5000VA/4000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC ± 5%
Surge Power 2000VA 6000VA 10000VA
Efficiency(Peak) 90%-93% 93%
Tran sferTime 10 ms (For Pers on al Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 24 VDC 24 VDC 48 VDC
Floating Charge Voltage 27VDC 27 VDC 54 VDC
Overcharge Protection 31 VDC 31 VDC 60 VDC
Maximum Charge Current 10A/20A 20A or 30A 10A/20A/30A/40A/50A/60A
SOLAR CHARGER
Maximum PV Array Power 600 W 600W 1500W 3000 W
MPPT Range @ Operating Voltage 30VDC~ 66VDC 30VDC~ 66VDC 30VDC-115VDC 60VDC~ 115VDC
Maximum PV Array Open Circuit Voltage 75 VDC 75 VDC 145 VDC 145VDC
Maximum Charging Current 25A 25A 60A 60A/80A
Maximum Efficiency 98%
Standby Power Consumption 2W
PHYSICAL
Dimension, DxWxH (mm) 128x272x355 140x295x540
Net Weight (kgs) 7.4 8 10 11.05/13.5
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0° C-55° C
Storage Temperature -15° C-60° C
Product specifications are subject to change without further notice.
MODEL MPS-1K-24 MPS-3K-24 MPS-5K-48
In verter Power 800W 2400W 4000W
Pmax. generated from solar charger 25Amp 600W 25Amp 600W 60Amp 1500W 60A/80Amp 3000W/4000W
Best Panel Configuration 500Wp (250Wpx2pcs) 500Wp (250Wpx2pcs) 1500Wp (250Wpx6pcs) 3000Wp (250Wpx16pcs)

Video Tutorial

Equipped with MPPT solar charge controller to maximize and regulate DC power from the solar arrary for the charging the battery bank.Transformer-less design provides reliable power conversion in compact size and with high efficiency.With aluminum housing,Integrated interface system,It's light and handy,making installation easier.It's the ideal inverters for small PV plants,or individually for small houses,both indoors and outdoors.

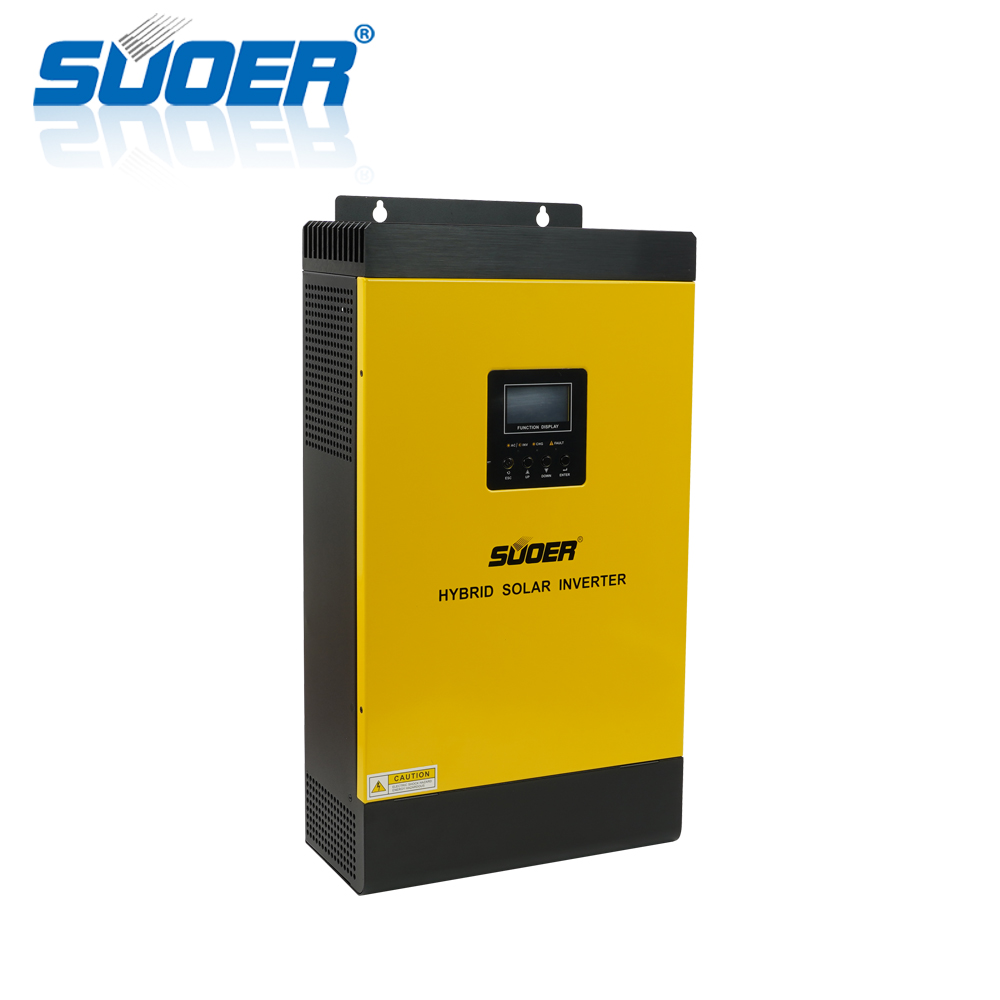

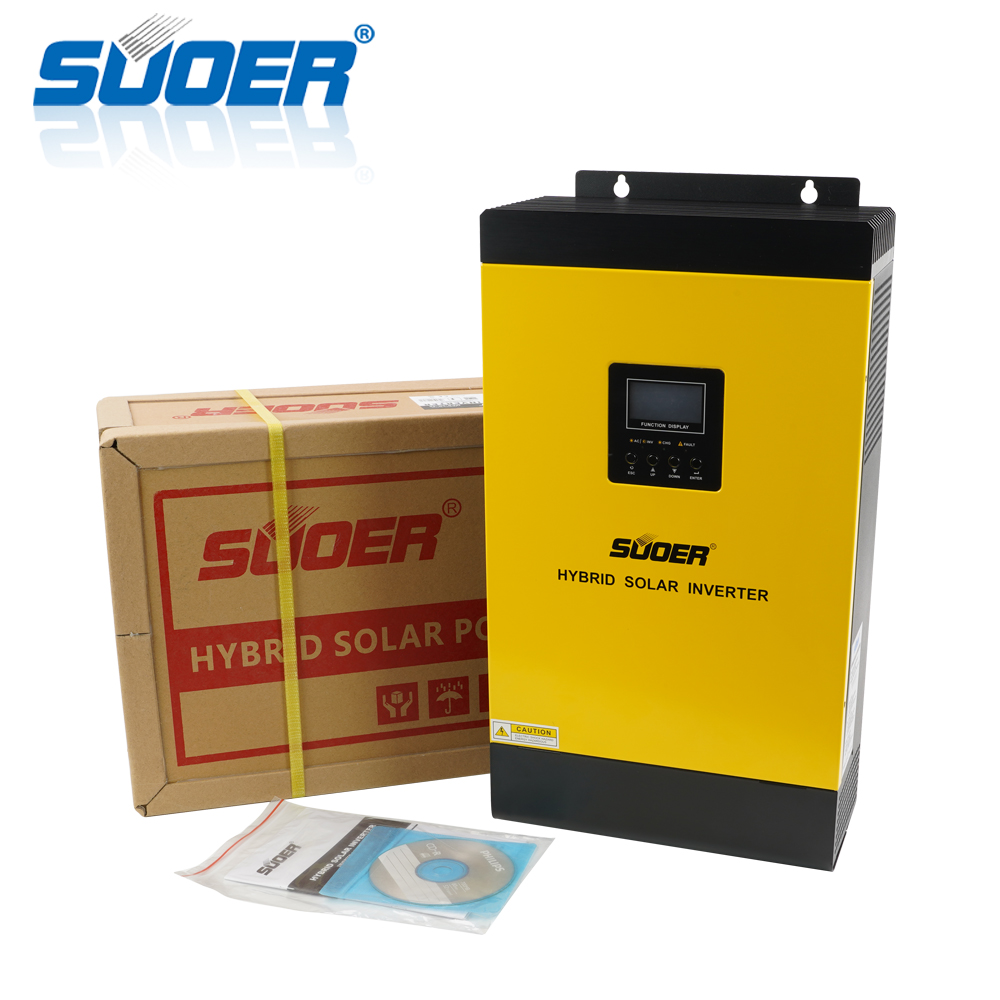

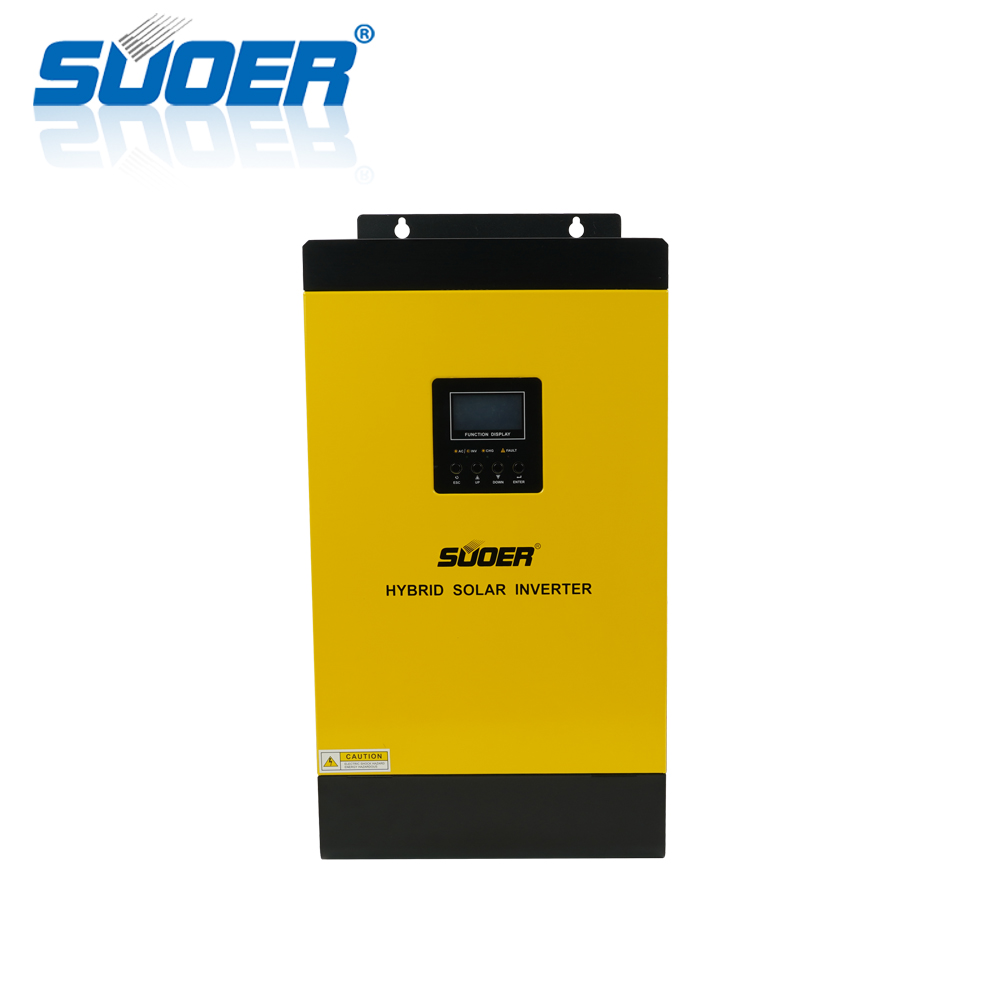

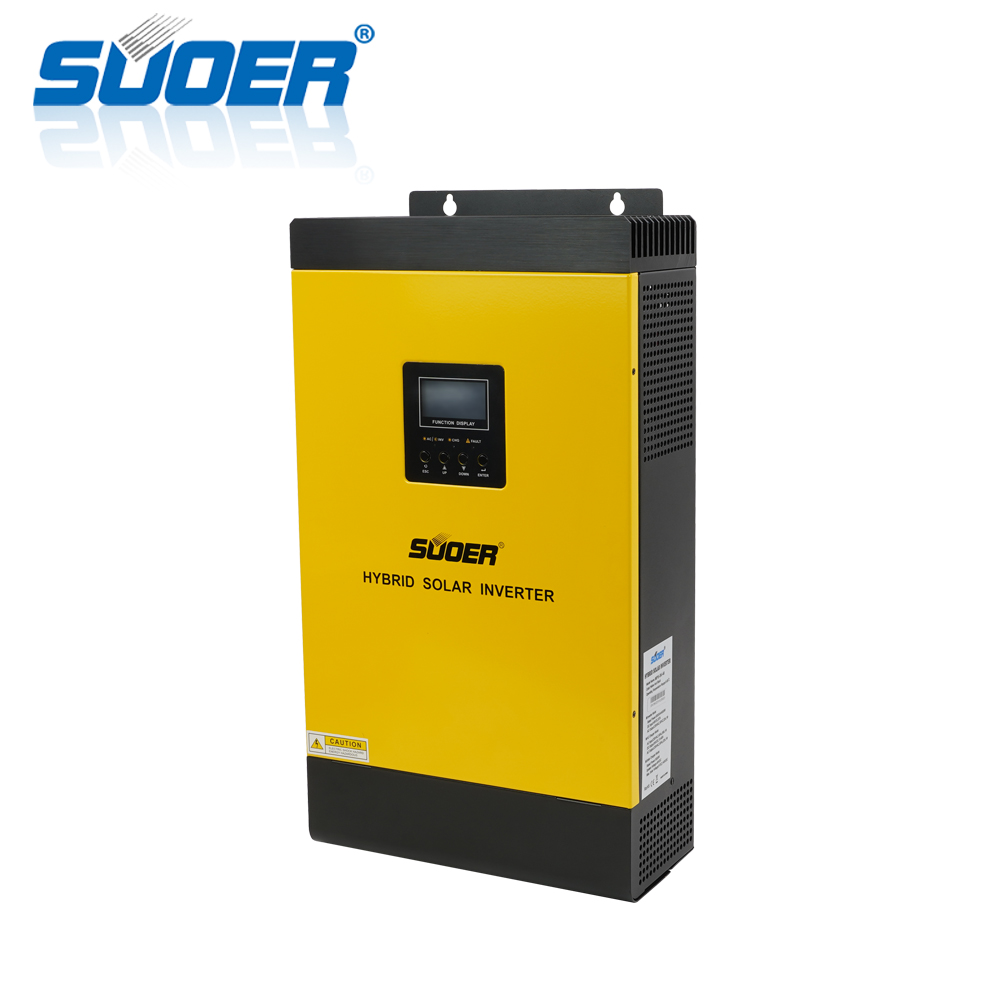

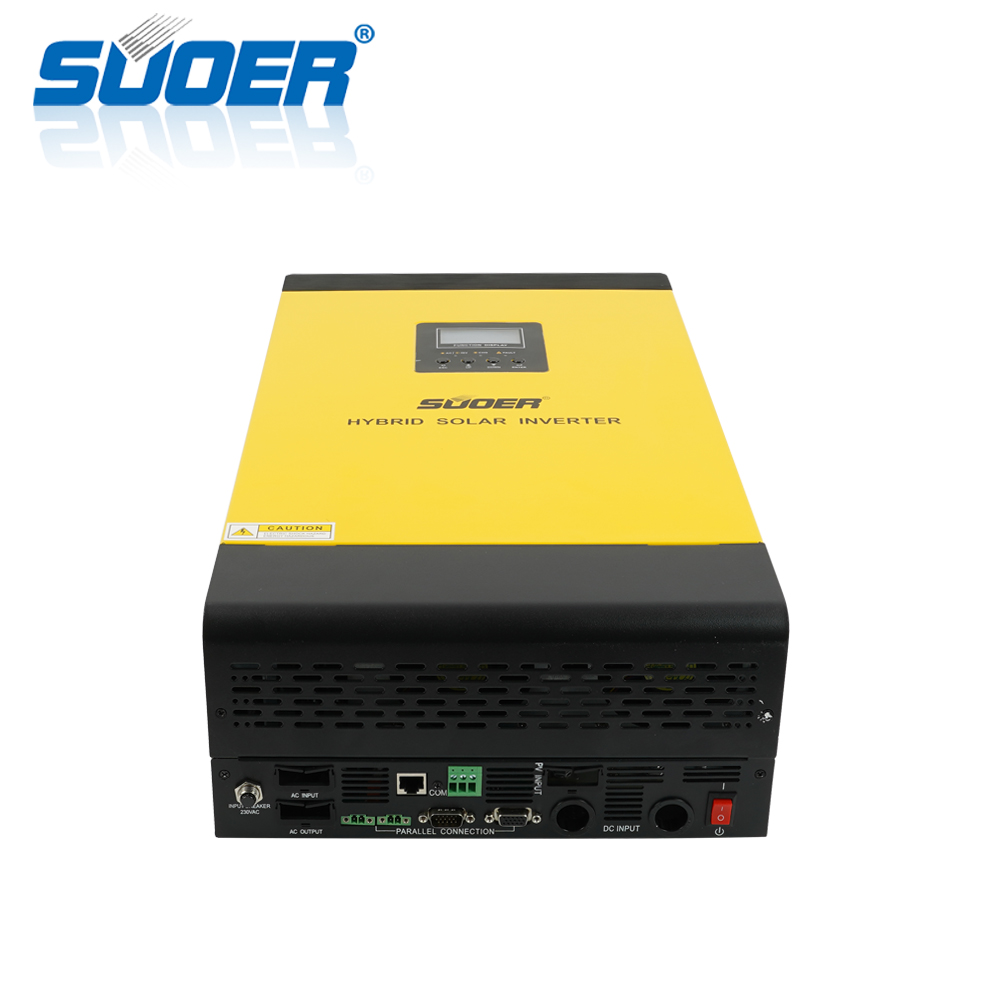

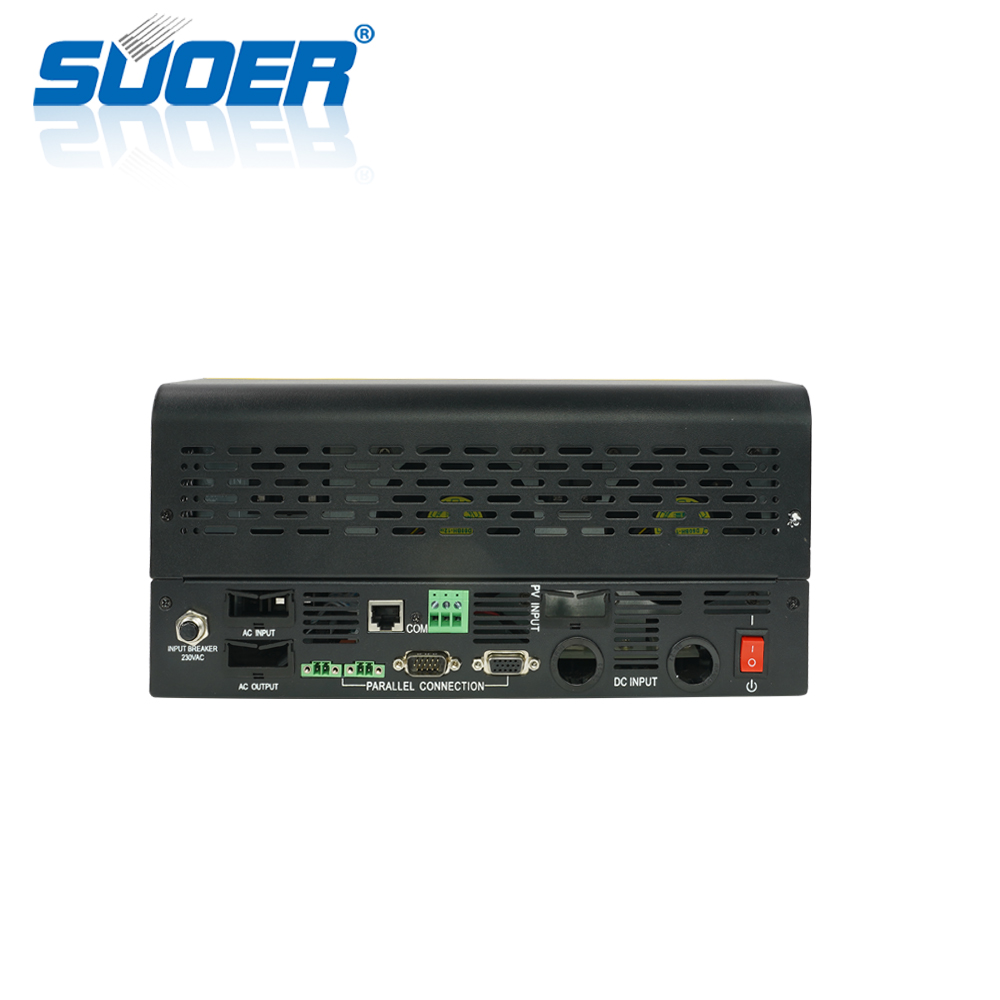

Product Photos
