Off Grid Hybrid Inverter
Main features:
Solar Hybrid Inverter VMS- series:
1.High efficiency pure sine wave inverter(PF=1)
2.Wide PV input range (120Vdc-500Vdc)80A MPPT SCC; Intelligent 3 stage 60Ä/80À AC charger
3.Surges to 2X continuous power for 5 seconds for motor loads
4.Intelligent functionality enables utility and solar input prioritization
5.Wide utility input range(90Vac-280Vac)for unreliable grid even
6.In the most challenging environments
7.Auto restart while AC is recovering
8.Monitor, troubleshoot,or communication withUSB/RS232
9.System configures,quickly into compact,wall-mounted system
10.Working without batteries in sun day
11.WIFI/GPRS Monitoring function(optional)

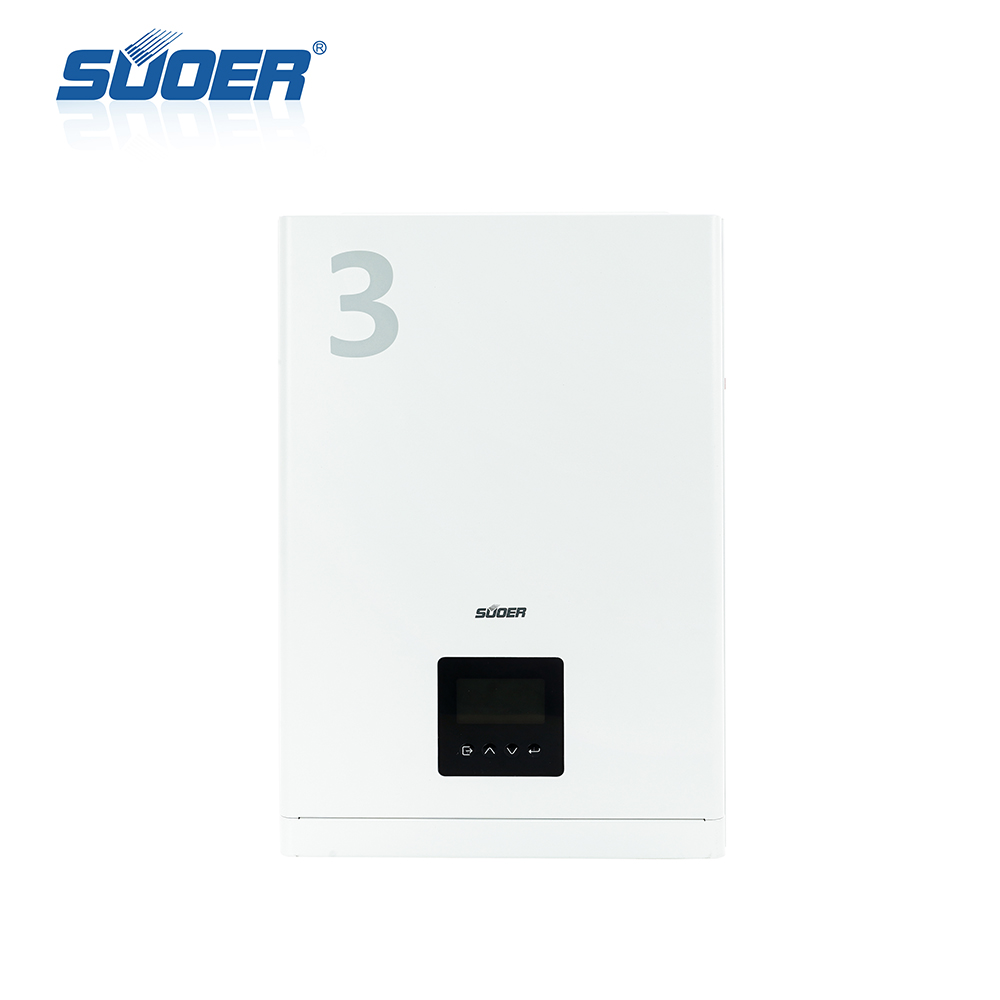

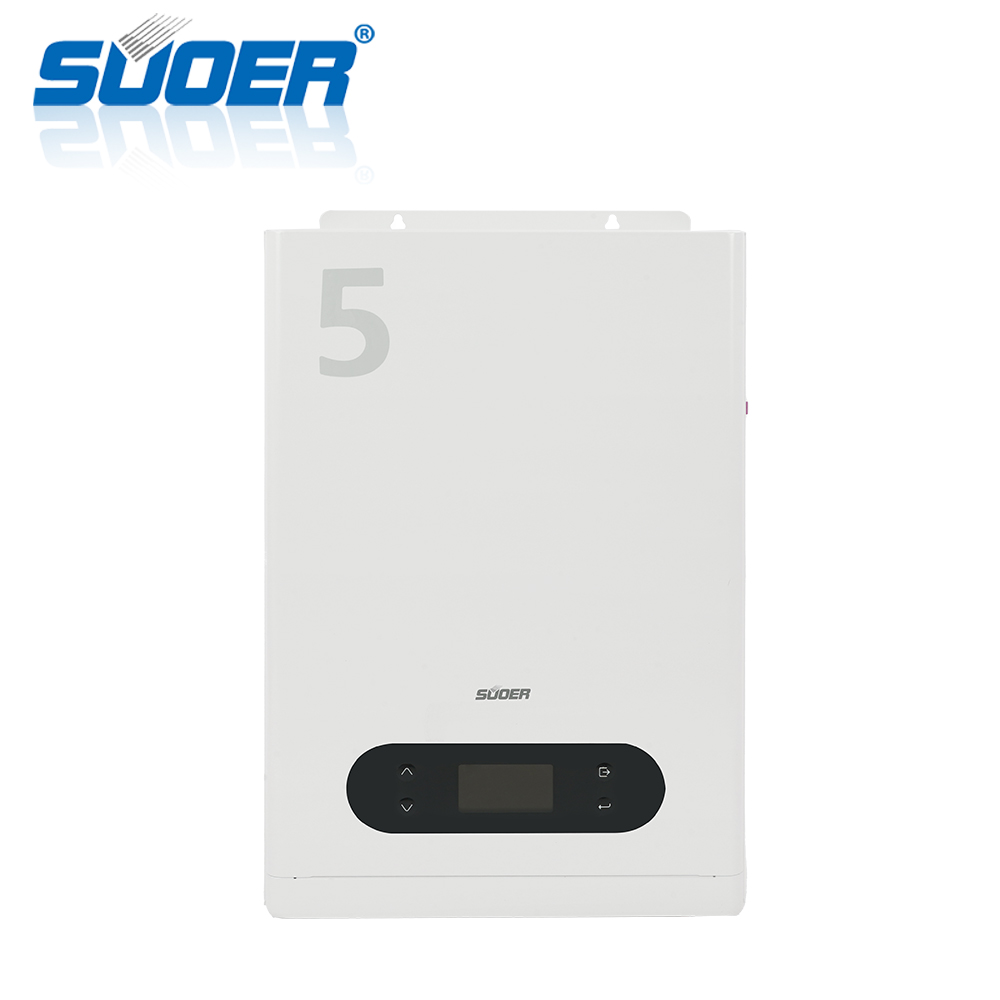

MODEL | VMS-3K-24 | VMS-5K-48 | ||
Rated Power | 3200VA/3200W | 5000VA/5000W | ||
INPUT | ||||
Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt.Mode) | 230VAC ± 5% | |||
Surge Power | 6000VA | 10000VA | ||
Efficiency(Peak) PV to INV | 97% | |||
Efficiency(Peak) Battery to INV | 94% | |||
Transfer Time | 10 ms (For Pers on al Computers) 20 ms (For Home Appliances) | |||
Waveform | Pure sine wave | |||
BATTERY & AC CHARGER | ||||
Battery Voltage | 24 VDC | 48 VDC | ||
Floating Charge Voltage | 27 VDC | 54 VDC | ||
Overcharge Protection | 33 VDC | 63 VDC | ||
Maximum Charge Current | 80A | 60A | ||
SOLAR CHARGER | ||||
Maximum PV Array Power | 4000W | |||
MPPT Range @ Operating Voltage | 120-450VDC | |||
Maximum PV Array Open Circuit Voltage | 500VDC | |||
Maximum Charging Current | 80A | |||
Maximum Efficiency | 98% | |||
PHYSICAL | ||||
Dimension, DxWxH (mm) | 100*300*440 | |||
Net Weight (kgs) | 9 | 10 | ||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |||
Operating Temperature | 0° C-55° C | |||
Storage Temperature | -15° C-60° C |
