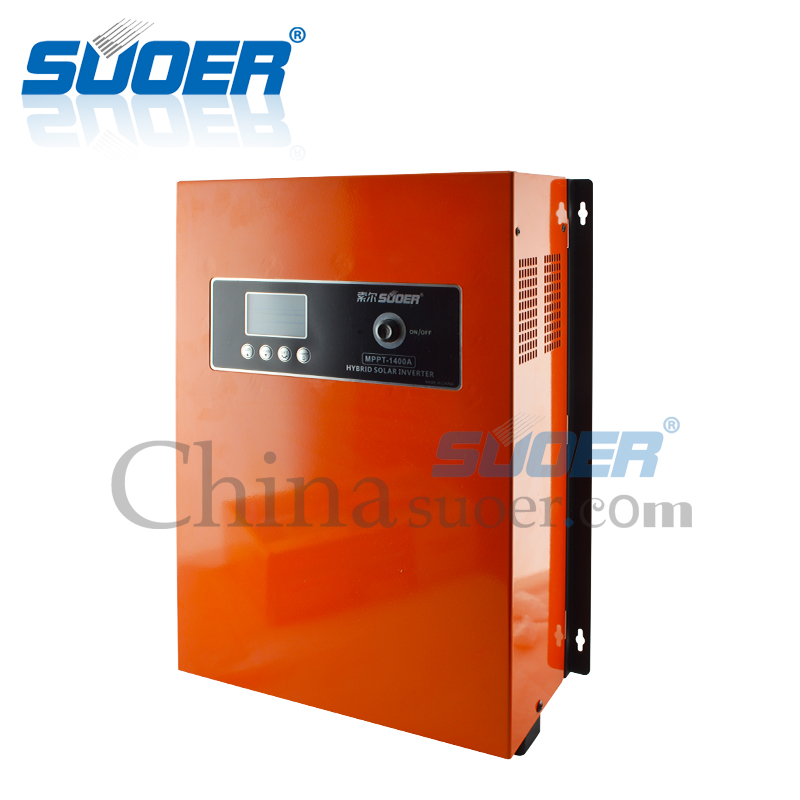

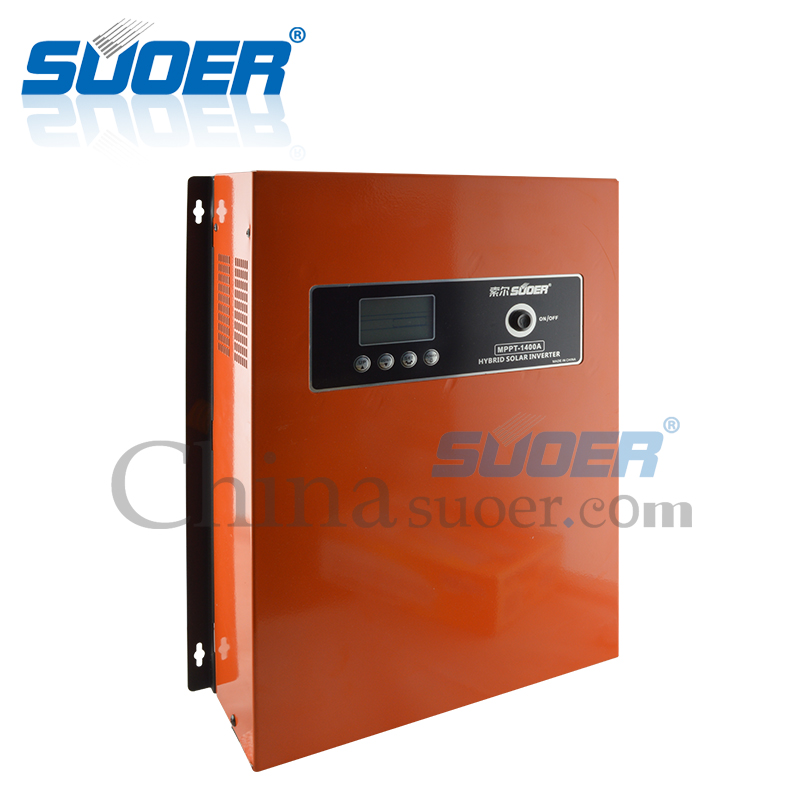

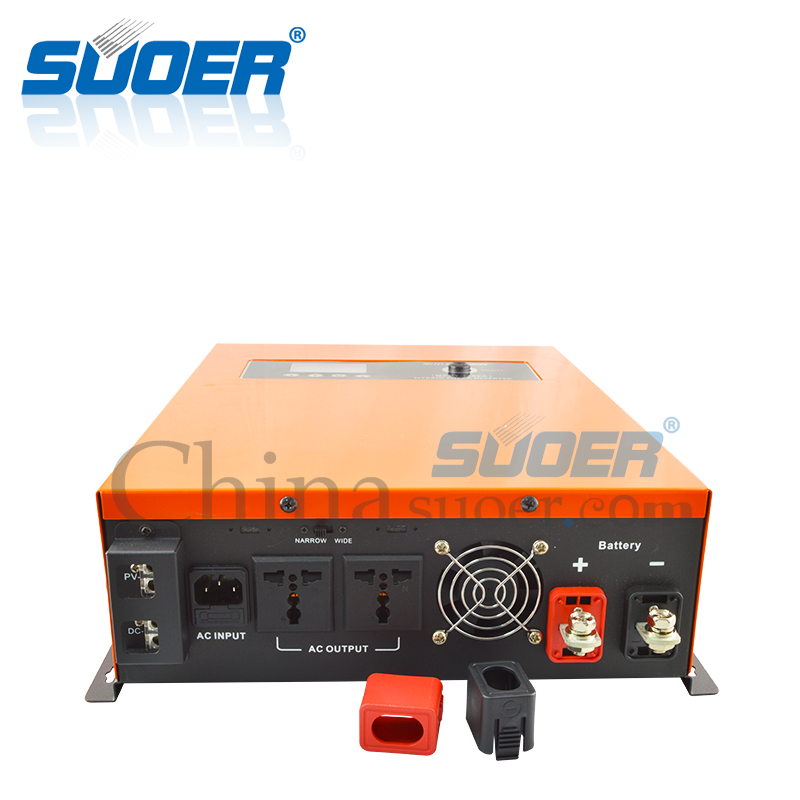

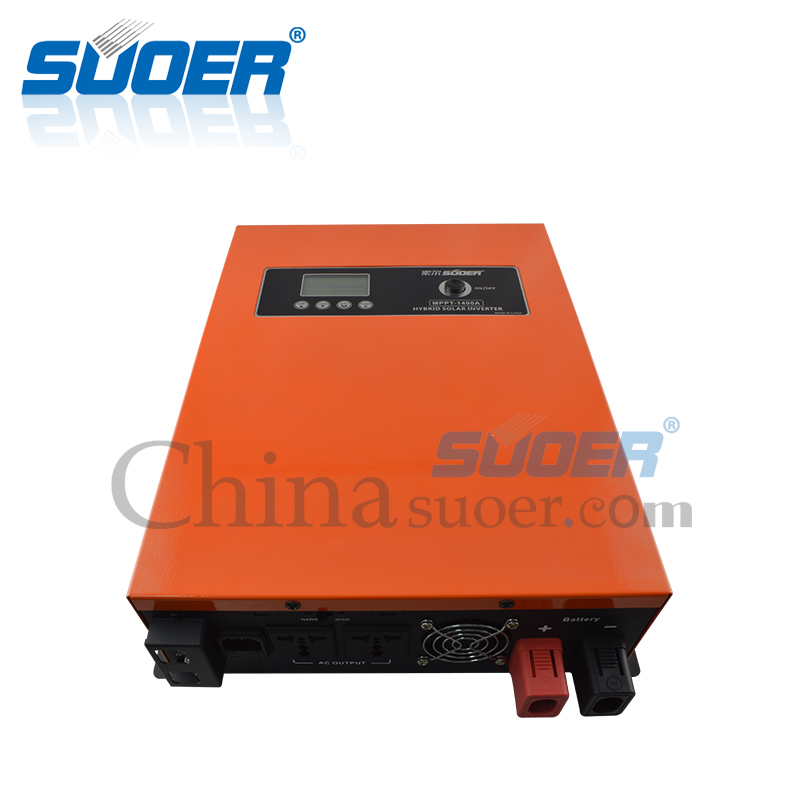

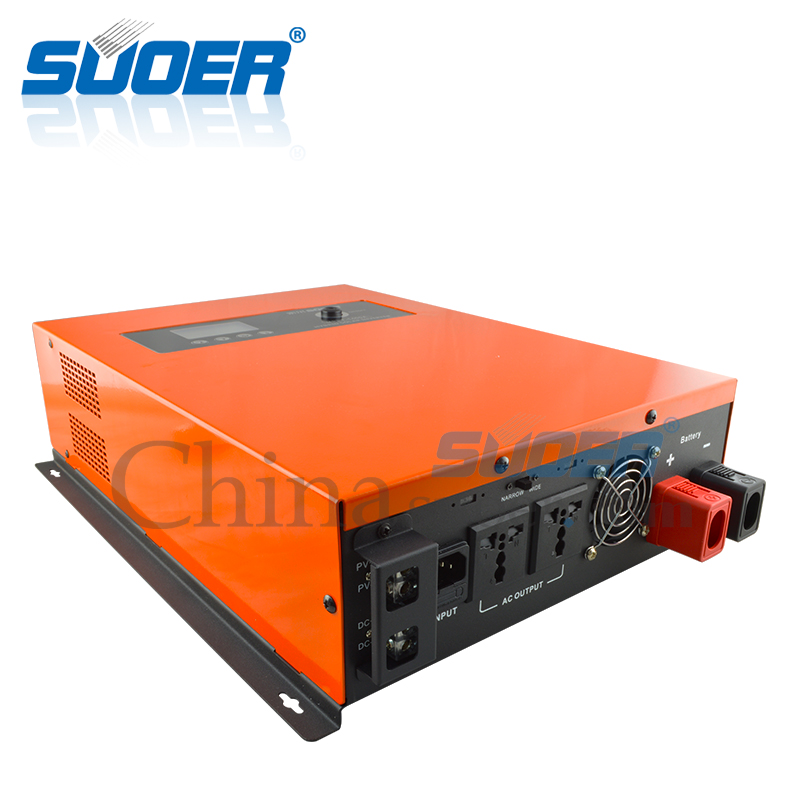

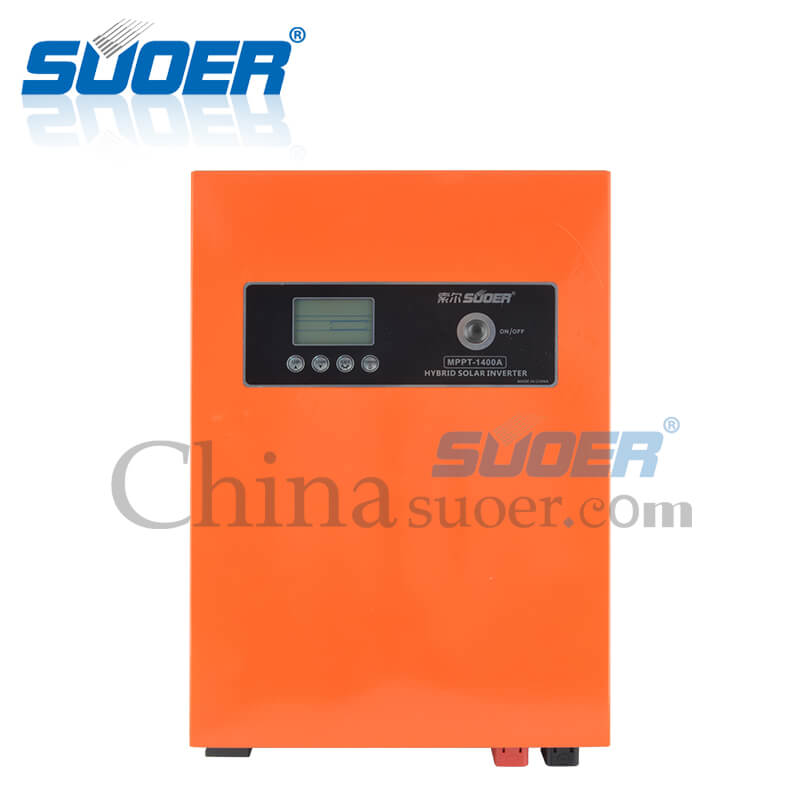

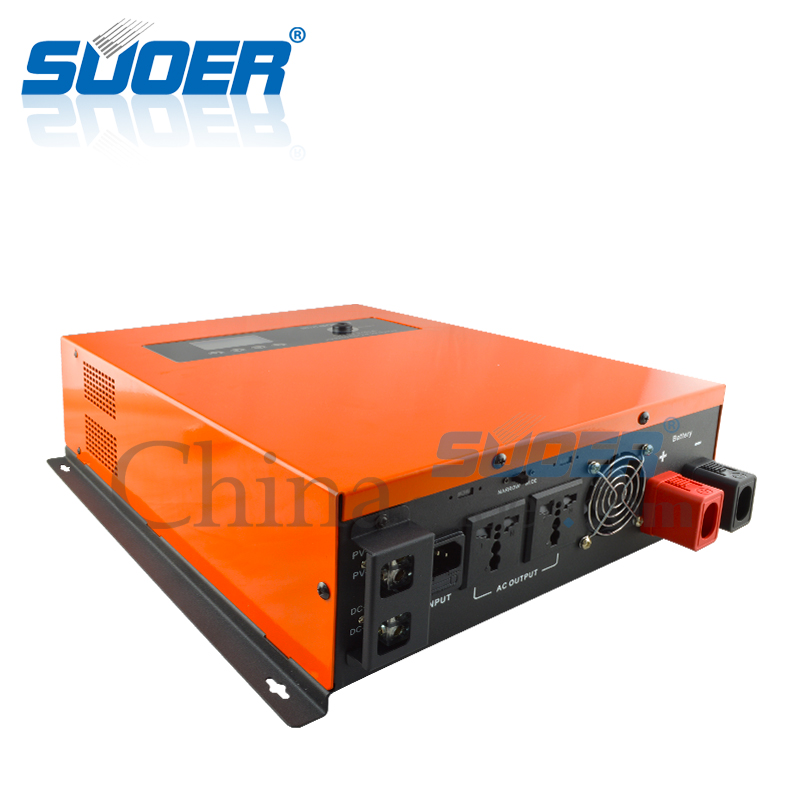

You are here: Home > Products > Modified sine wave inverter > MPPT-1400
Modified sine wave inverter
Advanced modified sine waveform output(Almost suitable for most of home resistive appliances
Built-in MPPT charging controller 30A
Auto switch to inverter output/mains supply acc to the AC voltage range(<15ms)
Input voltage range of mains:170V-280V or 90V-280V
Auto identification of output frequency:50Hz or 60Hz
LCD+LED screen display(Output power,Output voltage,battery capacity)
Overcharge protection,Overload protection,Over-voltage protection,Short circuit protection,Low battery protection
Model | MPPT-1400 | FPC-T1800CA | |
Capacity | VA/W | 1400VA/800W | 1800VA/900W |
Battery | VDC | 12V | 12V |
Input | Norminal Voltage | 230V | 230V |
Voltage Range | 170-280VAC(narrow range) | 170-280VAC(narrow range) | |
90-280VAC(wide range) | 90-280VAC(wide range) | ||
Output | Voltage | 230VAC | 230VAC |
Voltage Regulation(Bat.model) | +10%˜-18% | +10%˜-18% | |
Frequency | 50Hz or 60Hz | 50Hz or 60Hz | |
Frequency Regulation(Bat.model) | ±1Hz | ±1Hz | |
Output Waveform | Modified Sine Wave | Modified Sine Wave | |
Battery &Charger | Charger current | 15Amp or 20Amp Selectable±2A | 15Amp or 20Amp Selectable±2A |
Overcharger protection | 15V | 15V | |
Thansfertimet | Typical | <15ms | <15ms |
Efficiency | AC to AC | >95% | >95% |
DC to AC | >80% | >80% | |
Display Indicator | Ac model | Display output power ,output voltage | Display output power ,output voltage |
Battery model |
The mark will flicker every 1 second |
The mark will flicker every 1 second | |
Battery charging model | Display output power ,output voltage | Display output power ,output voltage | |
Fault | Display fault | Display fault | |
Audible alarm | Low battery at battery model | Sounding every 2seconds | Sounding every 2seconds |
Overload | Sounding every 0.5seconds | Sounding every 0.5seconds | |
Fault | Display fault | Display fault | |
Protection | Full protection |
Discharge,overcharge,overload, over temperature protection |
Discharge,overcharge,overload,over temperature protection |
Physical | Dimension | 54.5*20*42cm | |
Net weight(kgs) | 7.5kg | ||
Enviroment | Operation enviroment | 0-50℃~90% relative humidity(non-condensing) | 0-50℃~90% relative humidity(non-condensing) |
Storage enviroment | -15 to 55,5% to 90% relative humidity(non-condensing) | -15 to 55,5% to 90% relative humidity(non-condensing) | |
Noise level | Less than 50db | Less than 50db |
This hybrid high frequency photovoltaic inverter built in MPPT charge controller and mains charger. High-speed chip centralized control, overload protection, over current protection, high temperature protection, short circuit protection, battery high and low voltage protection. LCD display shows the machine operation and setup parameters. Using high quality components to ensure product quality and high performance. The inverter’s output waveform is pure sine wave.
