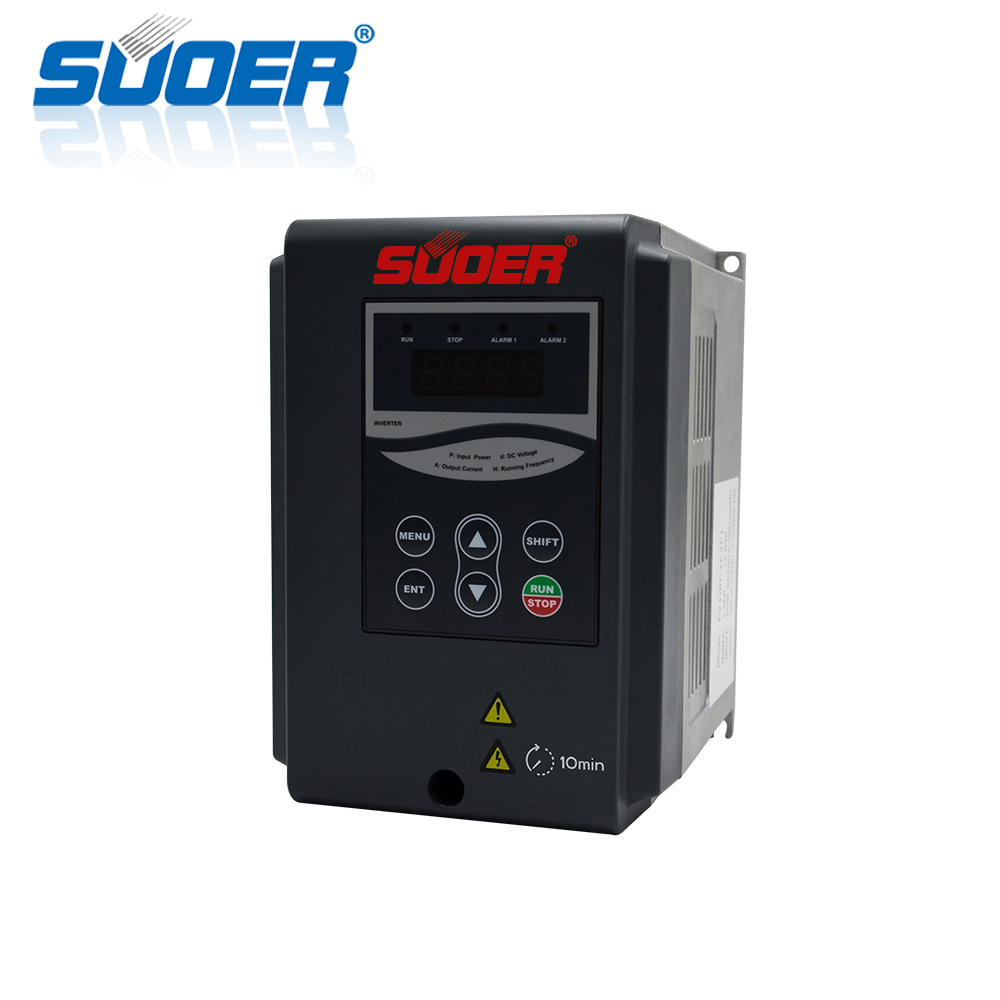

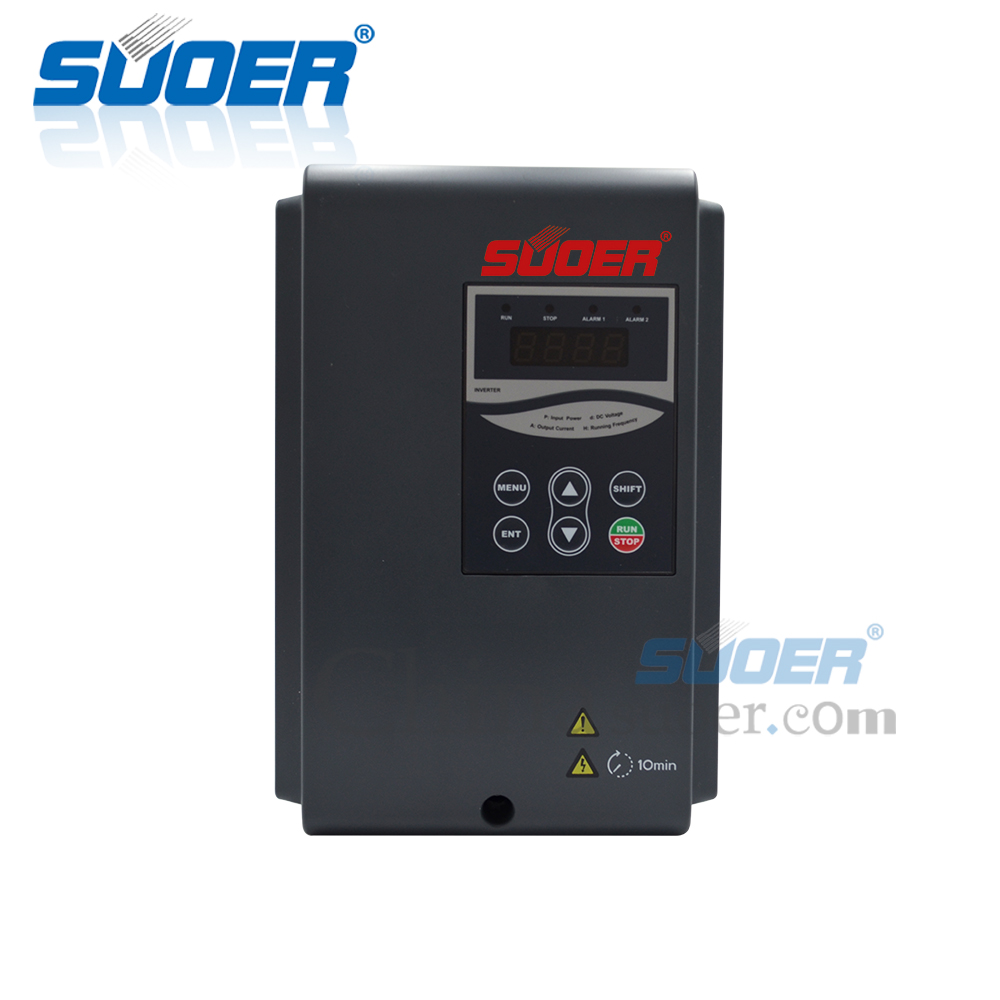

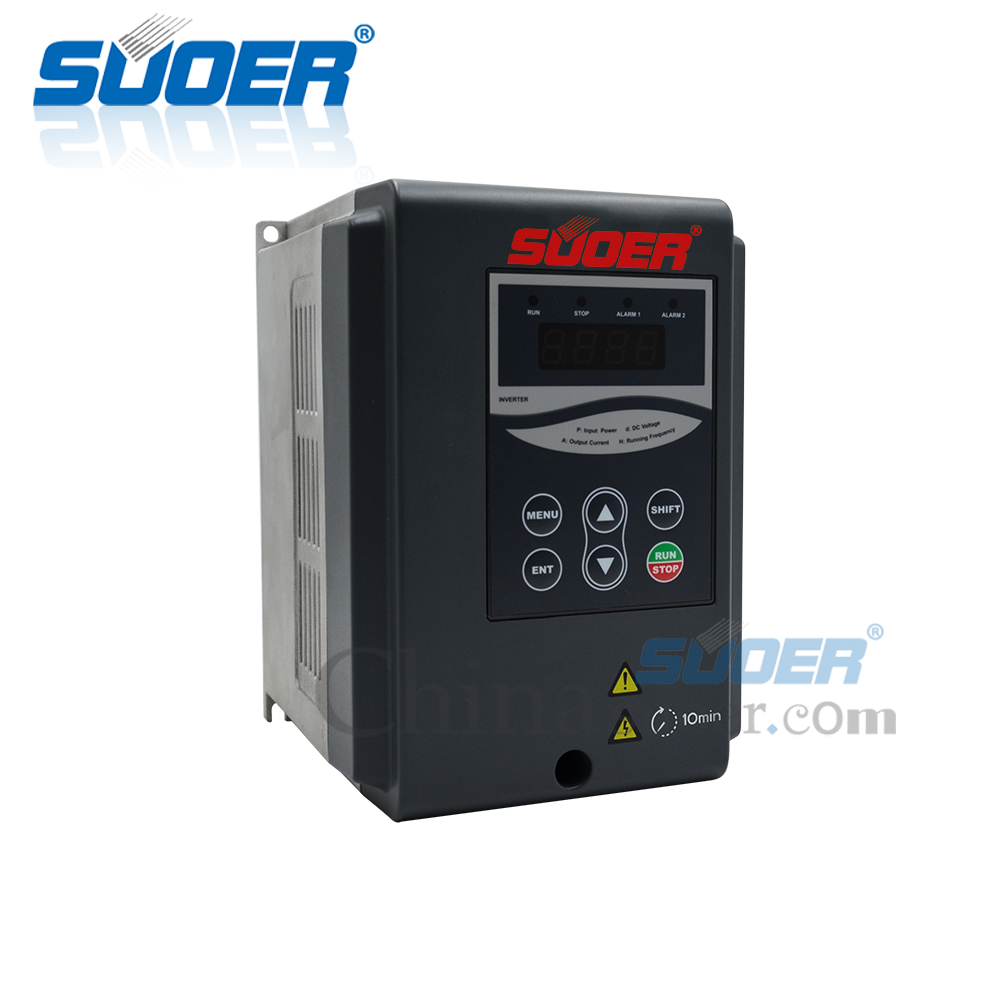

Solar Pump Controller/VFD
Inbuilt MPPT tracking facility to get maximum power output from the solar Array with up to 99% efficiency
Automatic regulation of pump flow
Self-adaptation to the drive used in the installation
No fuel Required
Highly reliable and durable
Irrigation possible at Remote locations
Compatible with solar PV arrays
Conventional grid electricity can be alternative
Applied only to IEC three phase 220V/380V AC asynchronous motors
Standard RS485 interface equipped for each solar pump controller
Android/iOS/PC monitoring APP supported
Eco-friendly energy source
Model | PV100-2K2P1 | PV100-4KP3 | PV100-5K5P3 | PV100-7K5P3 | PV100-11KP3 |
Input Data | |||||
PV source | |||||
Max input voltage(Voc)[V] | 450VDC | 800VDC | |||
Recommended voltage,at MPPT | 280~360VDC | 500VDC~700VDC | |||
Recommended PV array power(kw) | 2.7~3.5 | 4.8~6.4 | 6.6~8.8 | 9~12 | 13.2~17.6 |
Altemate AC Generator | |||||
Input Voltage | 220VAC single phase | 380V AC(±15%)three phase | |||
Max amps(RMS)[A] | 23 | 10.5 | 14.6 | 20.5 | 26 |
Power and VA capability(KVA) | 4 | 5.9 | 8.9 | 11 | 17 |
Output Data | |||||
Output power rate(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 |
Output voltage | 220VAC three phase | 380V AC(±15%)three phase | |||
Max amps(RMS)[A] | 9.6 | 9 | 13 | 17 | 25 |
Frequency | 0-50Hz/60Hz | ||||
Protection | |||||
Surge protection | Integrated | ||||
Overvoltage protection | Integrated | ||||
Undervoltage protection | Integrated | ||||
Locked pump protection | Integrated | ||||
Open circuit protection | Integrated | ||||
Short circuit protection | Integrated | ||||
Overheated protection | Integrated | ||||
Dry run protection | Integrated | ||||
Communication | |||||
Communication Port | Standard isolater RS-485, Modbus protocol | ||||
General data | |||||
Ambient Temperature Range | -20℃~60℃, >45℃,Derating as required | ||||
Cooling Method | Fan cooling | ||||
Ambient Humidity | ≤95%RH | ||||
Dimensions(H*W*D)[mm] | 186*130*154.8 | 241*162*180.2 | 360.5*182*195.4 | ||
Gross weight(kg) | 2.8 | 4.2 | 9 | ||
Standard Warranty(month) | 18 | ||||
Certificates | IEC/EN 61800-5-1,IEC/EN 61800-2:2004,IEC/EN 61800-3:2004.CE |

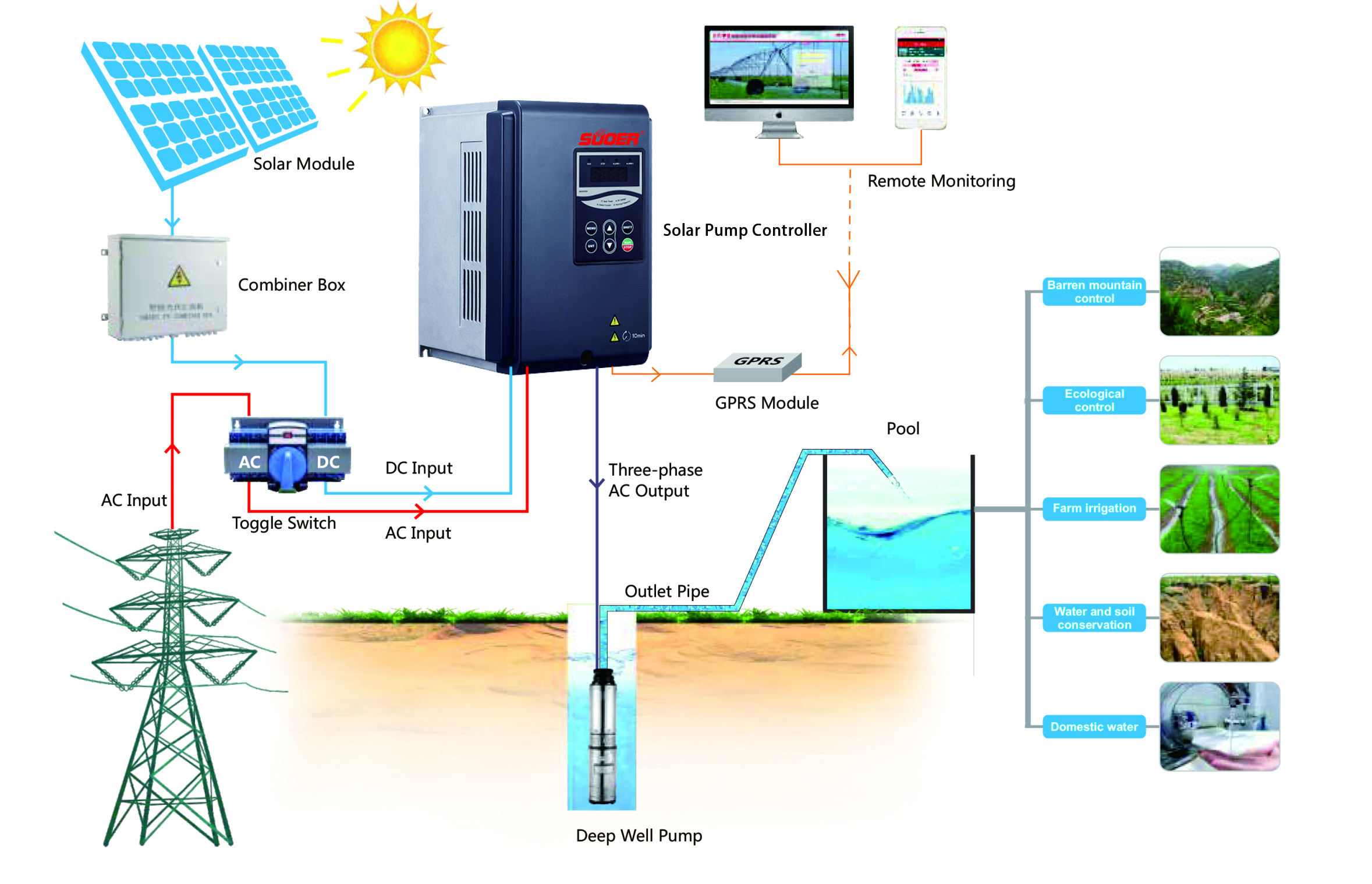

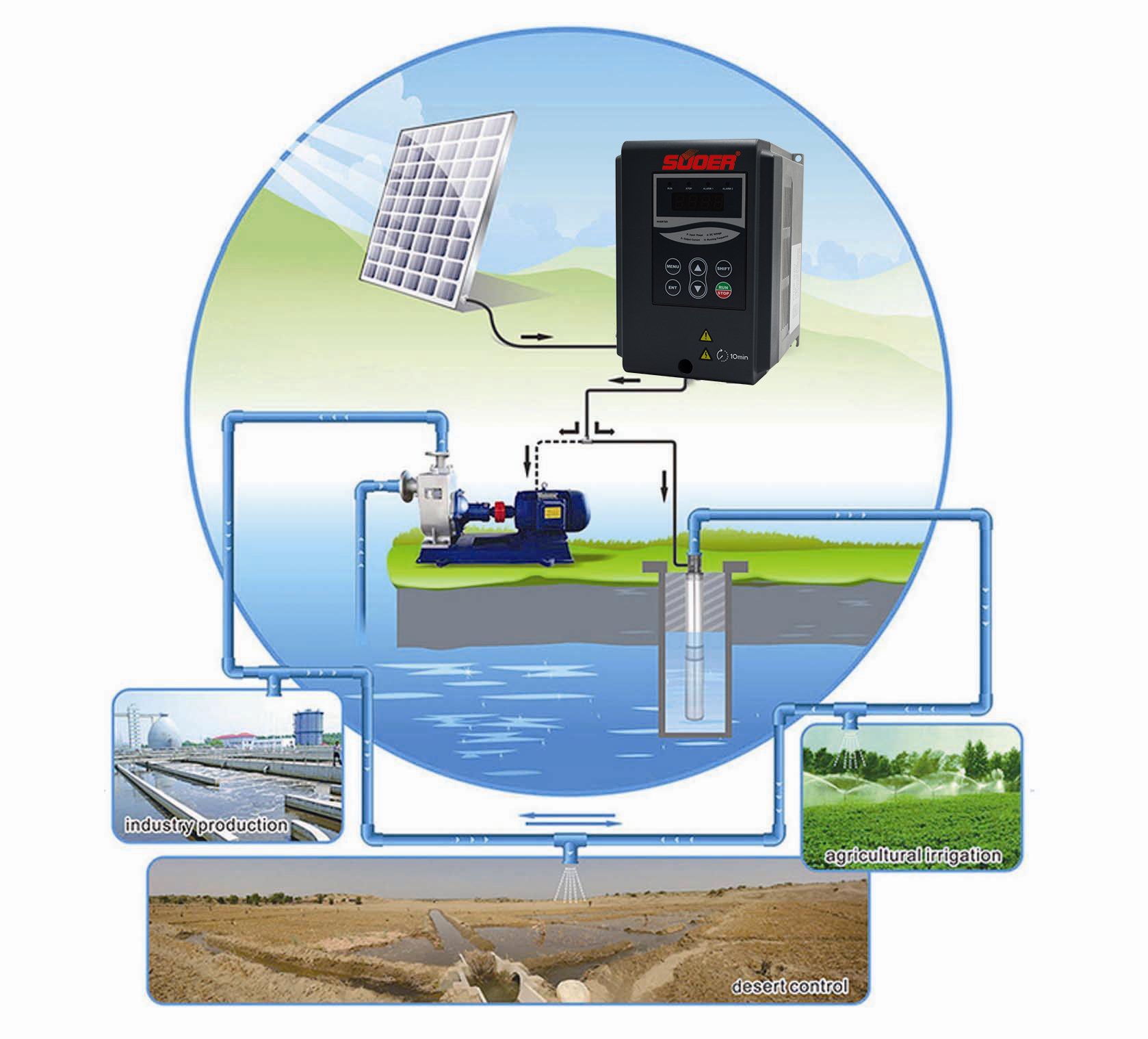

Solar pumping system, is constituted by solar module array, combiner box, liquid level switch, solar pump,etc. It aims at providing solutions for the region that suffers water shortage, no power supply or uncertain power supply. Solar AC Pump Controller is specifically designed to replace the diesel generator or conventional electric energy for water pump. Ideal for both remote and urban applications, the Solar Pump Controller can be used for monoblock as well as submersible pump.
