ST-C1210

12V/24V 10A Solar Panel Charge Controller

ST-C1210

PWM Solar Controller

Features:

Clock timing function

Built-in two 5V 1A USB interfaces

Ultra Low Power Consumption

Built-in IR self-learning infrared remote control to control the DC loads

Direct liquid crystal display(LCD)

Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)

Light control mode,Time control mode

Reverse protection,short circuit protection

Designed for 12V/24V solar power system

Hanging style design makes it convenient to install

Available in 10A/20A/30A

Simple options,automatic memory retention of users' settings

Convenient charging voltage switching,save complex Menu settings,automatic memory user settings

Built-in charging current limiting protection,without having to worry about solar panels power up too much damage control and battery system.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

pwm solar controller ST-C1210       ST-C1220 ST-C1230
to adapt to the battery 12V/24V,battery<16V:12V,Battery>18V:24V
Maximum charging voltage 12V:18-24V Standard specifications solar panels(24V battery*2)
Maximum charging current 10A 20A 30A
Maximum charging voltage Low:14.2V,Default:14.5V,High:15.2V
The largest output current 12A 24A 35A
Low voltage protection voltage 10.5V(24 battery*2)
Low pressure recovery voltage 12.5V(24 battery*2)
Load overload automatic recovery 30S
Double USB output 5V 2.1A
Load relating to open time 0-24 hours can choose
Infrared remote control distance >5m
Pieces/CTN 40pcs 40pcs 40pcs
Weight/CTN 14.05kg 14.3kg 21kg
Dimensions/CTN 52*27*40cm 52*27*40cm 54*27*44cm

Video Tutorial

There are several common working mode of PWM solar controller:

Button Mode (Manual switching load)

Light Controlled Mode (Load switch is controlled by solar panels photosensitive control and timing control)

Light control turn on delay off mode

Circulation model (With Clock Fuction)

0-24 hours optical mode,switch,wireless remote control mode,etc load mode optional

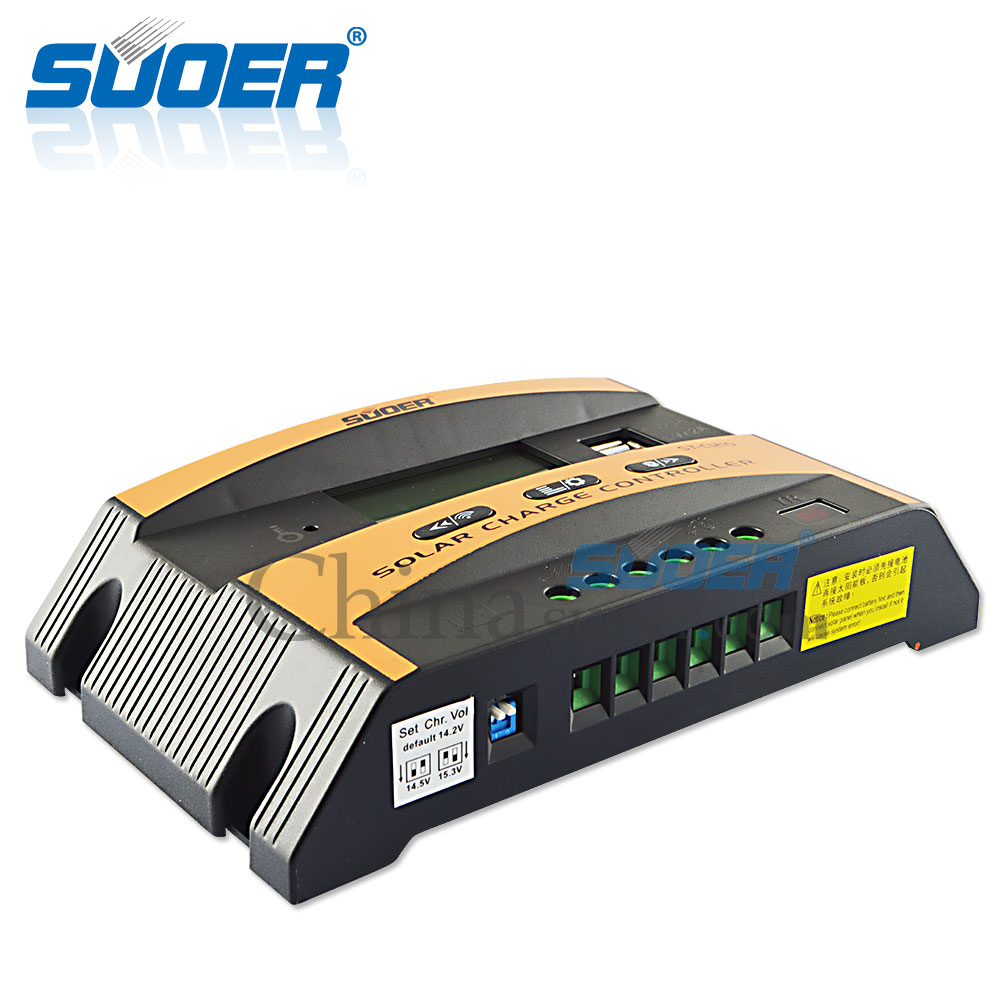

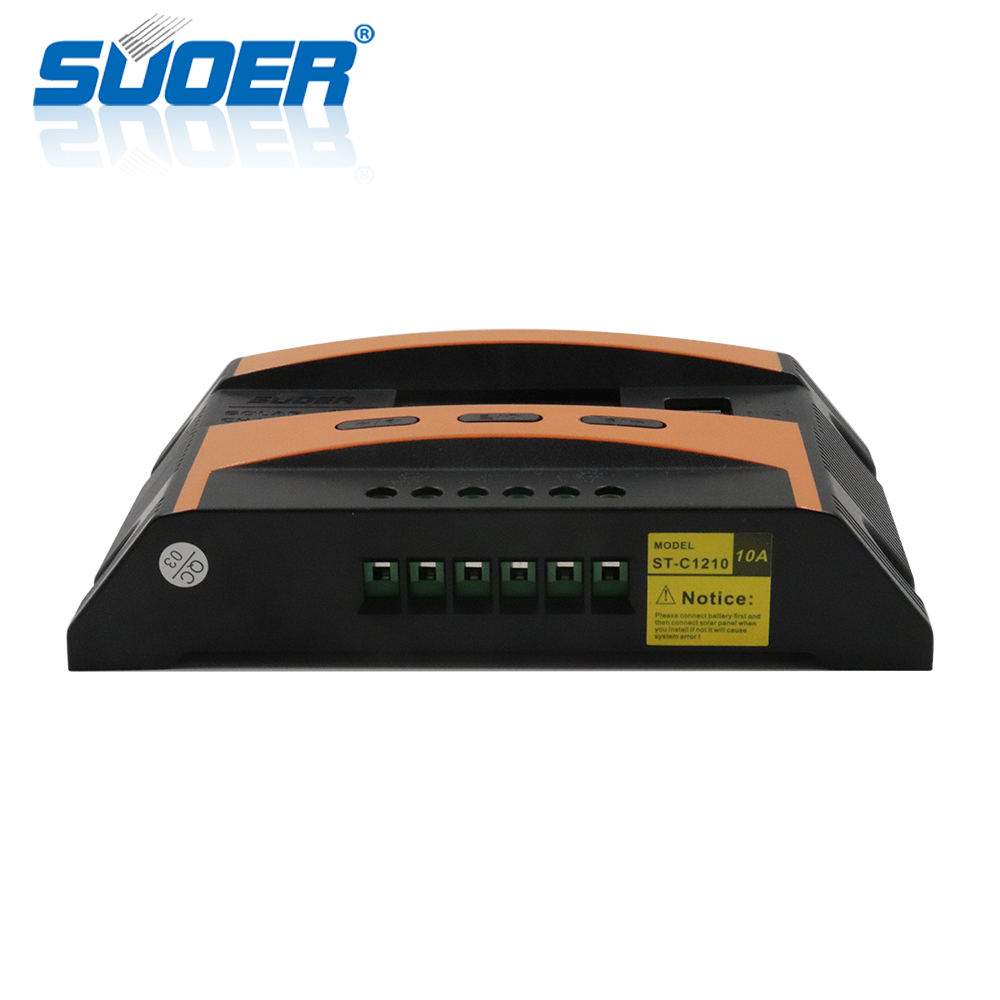

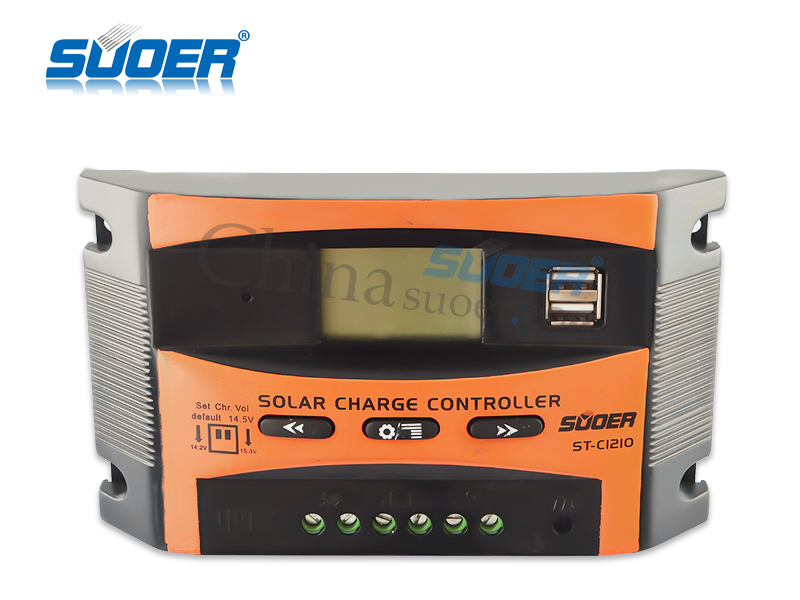

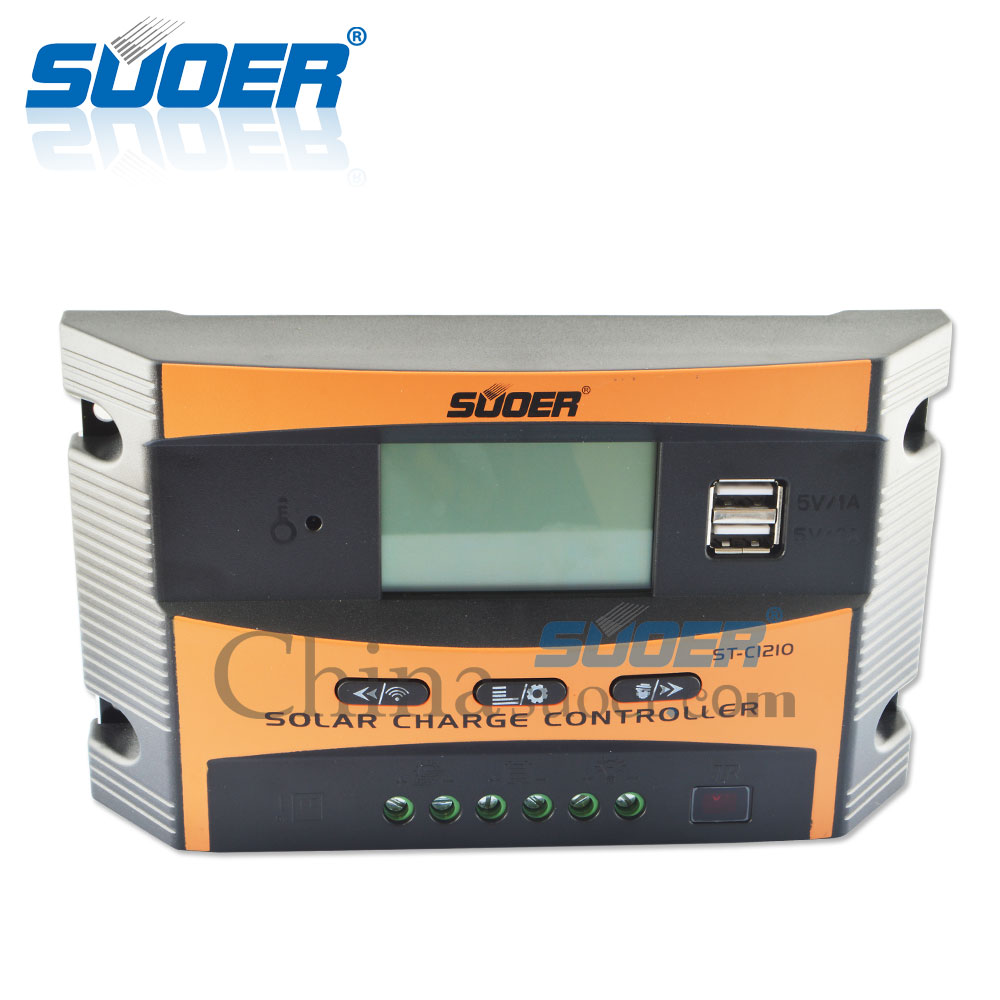

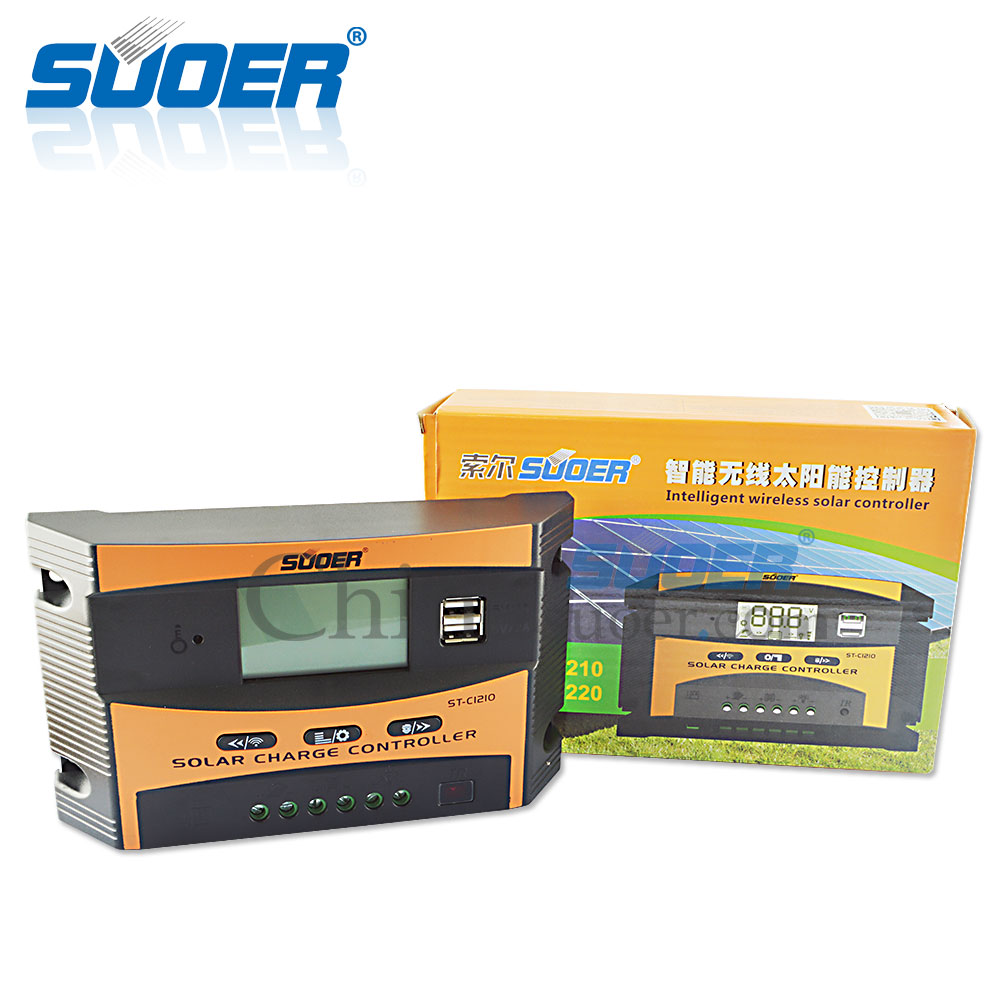

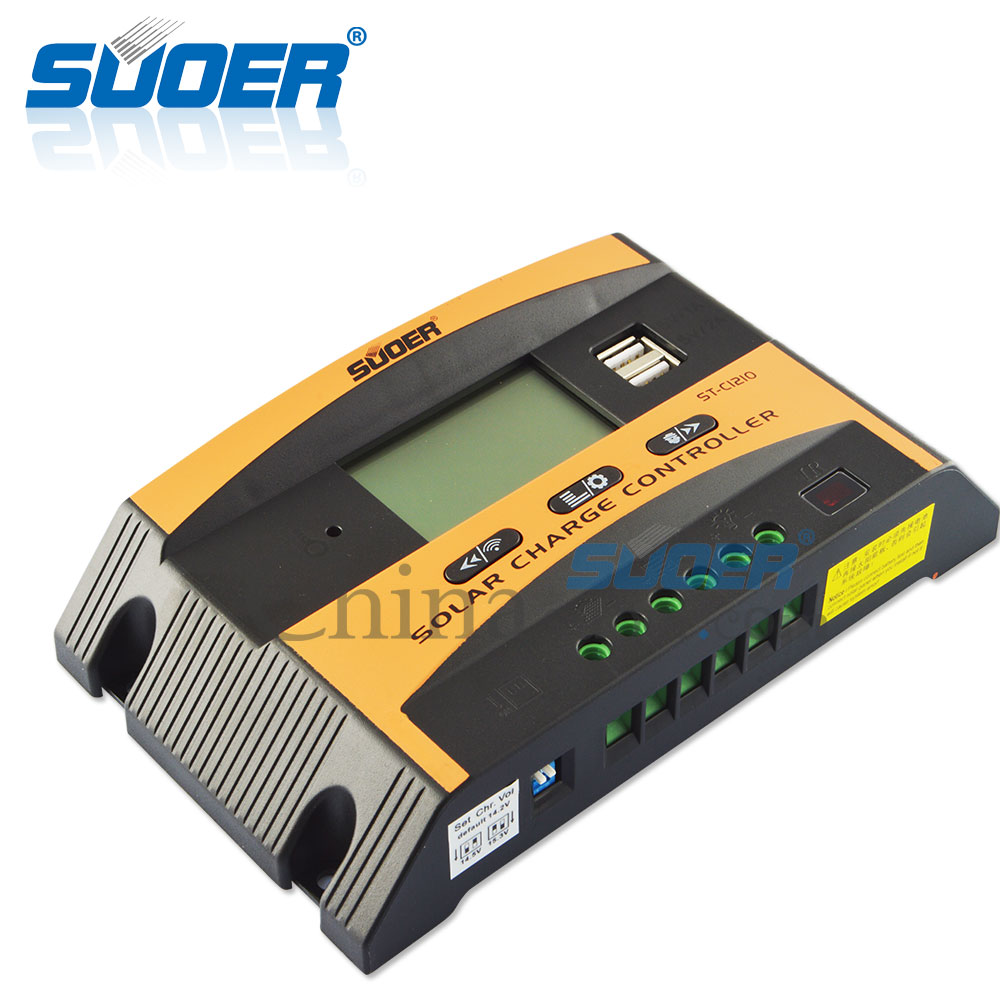

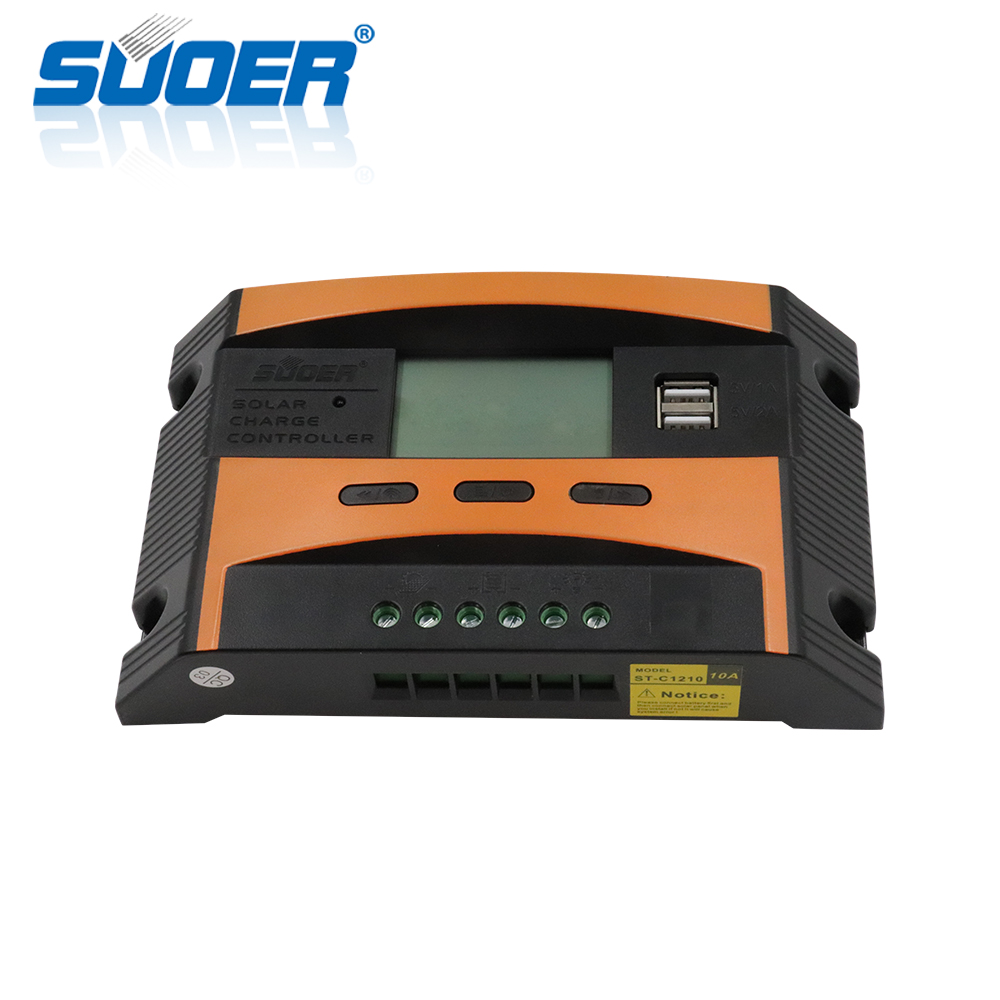

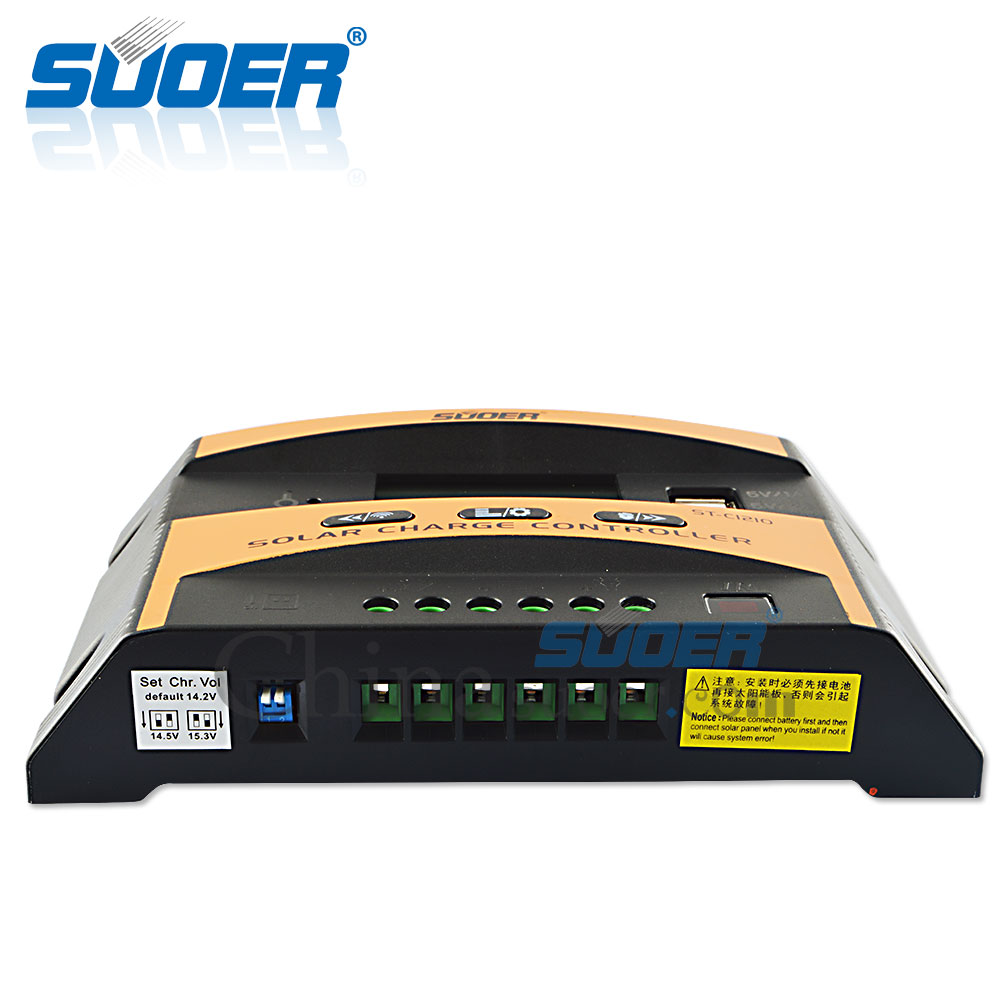

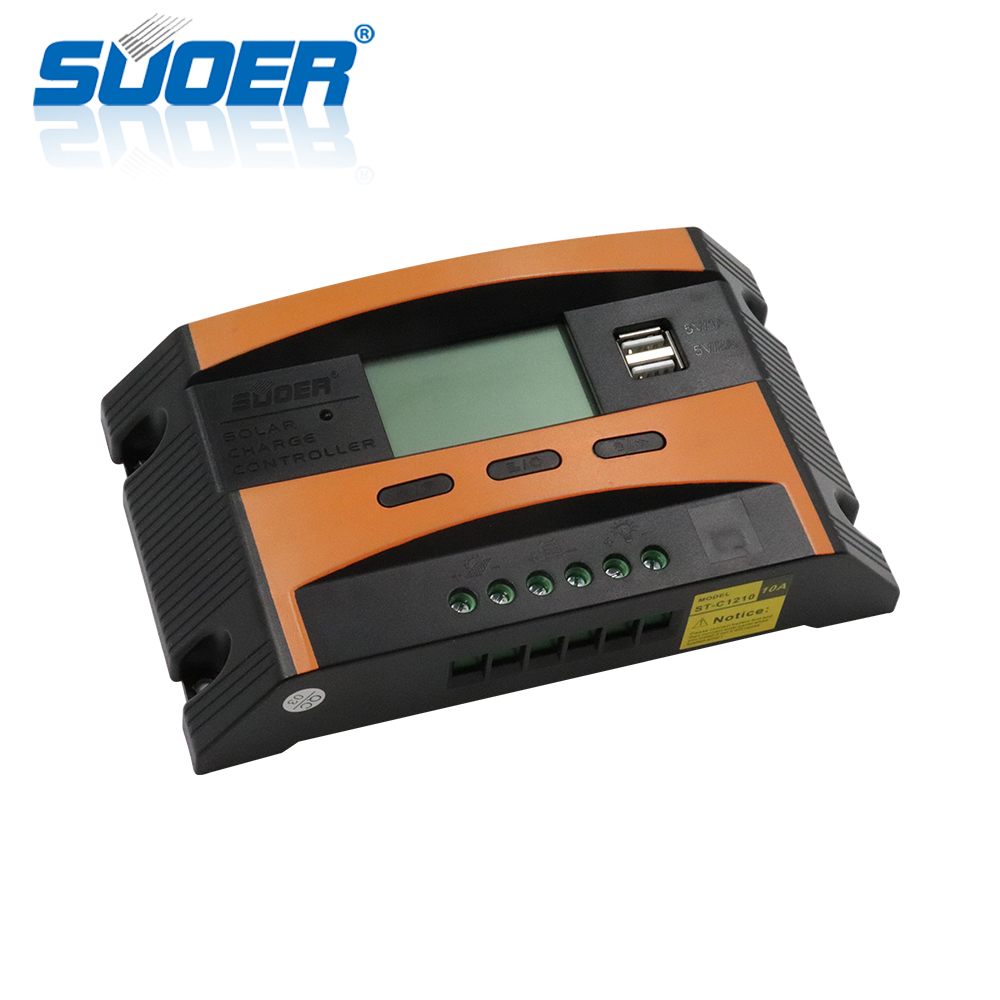

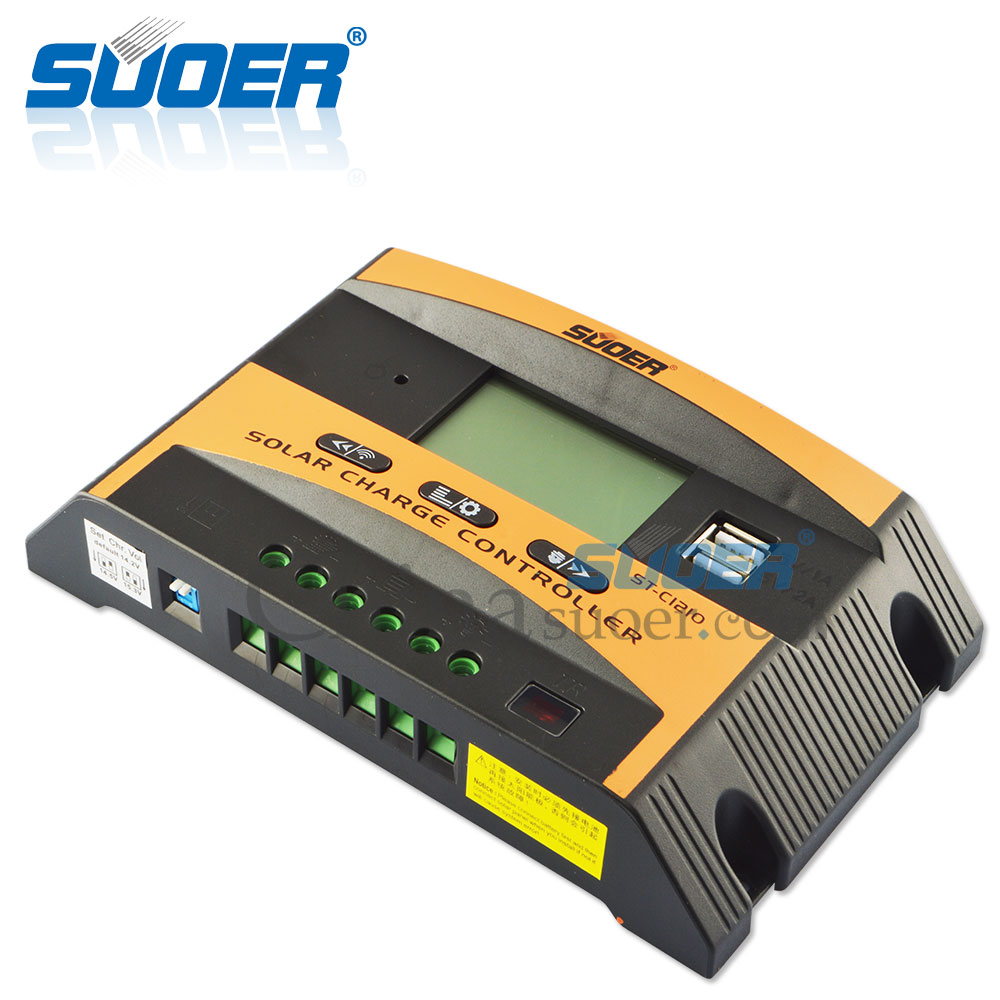

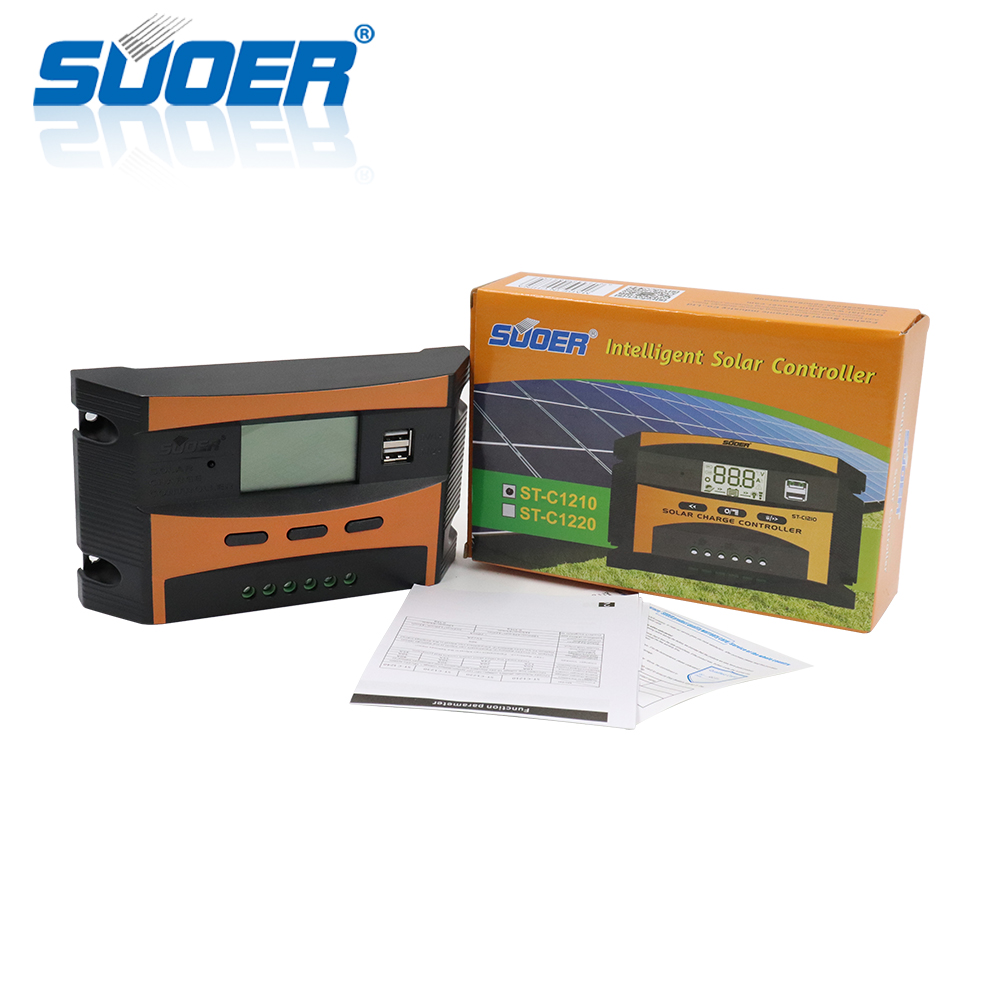

Product Photos
