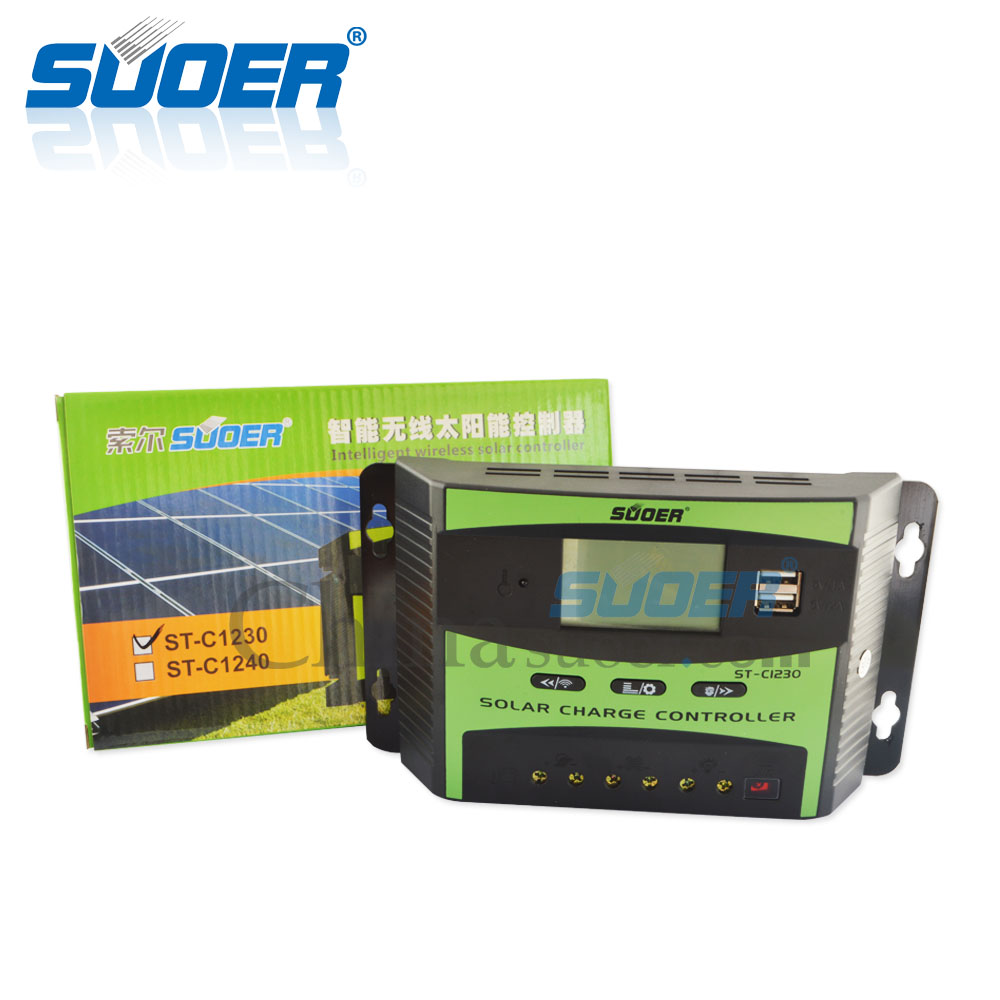

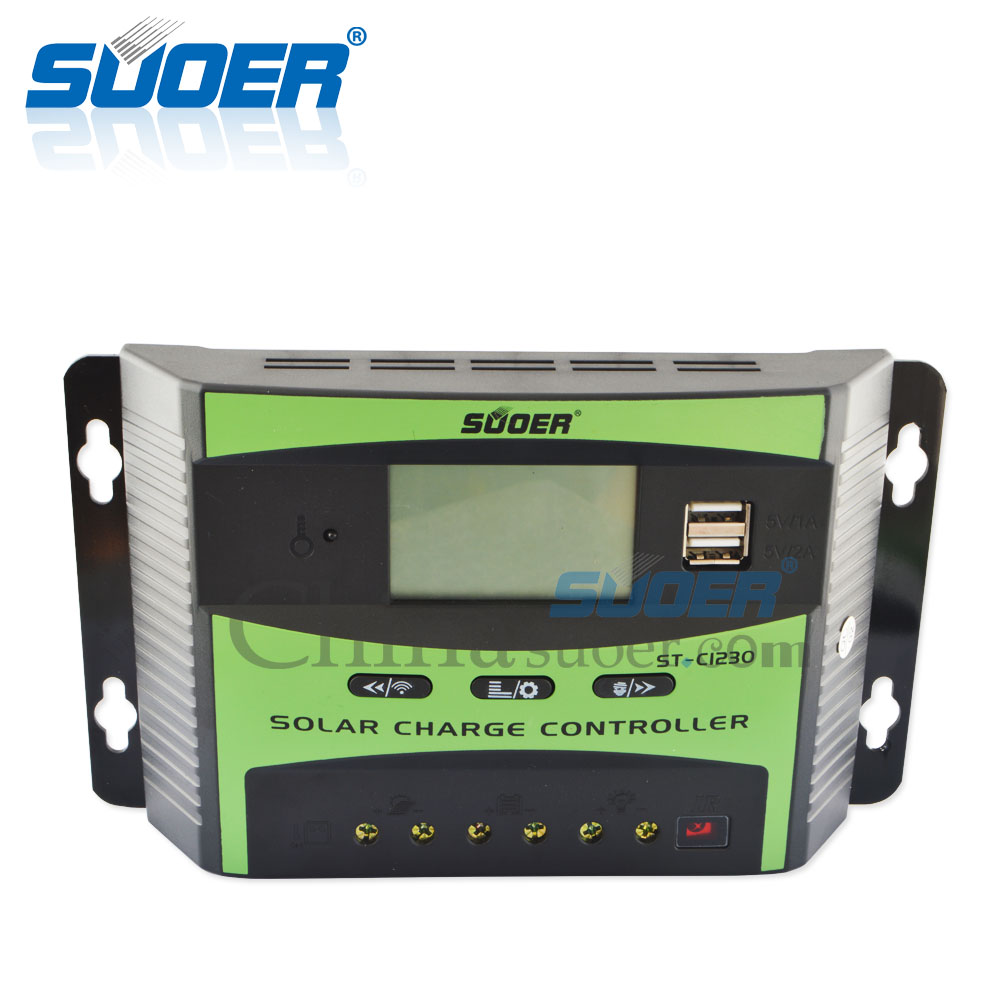

12V 24V 30A Solar Panel Controller

ST-C1230

PWM Solar Controller

Clock timing function

Built-in two 5V 1A USB interfaces

Ultra Low Power Consumption

Built-in IR self-learning infrared remote control to control the DC loads

Direct liquid crystal display(LCD)

Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)

Light control mode,Time control mode

Reverse protection,short circuit protection

Designed for 12V/24V solar power system

Hanging style design makes it convenient to install

Available in 10A/20A/30A

Simple options,automatic memory retention of users' settings

Convenient charging voltage switching,save complex Menu settings,automatic memory user settings

Built-in charging current limiting protection,without having to worry about solar panels power up too much damage control and battery system.

INQUIRE NOW

pwm solar controller	ST-C1210	ST-C1220	ST-C1230
to adapt to the battery	12V/24V,battery<16V:12V,Battery>18V:24V
Maximum charging voltage	12V:18-24V Standard specifications solar panels(24V battery*2)
Maximum charging current	10A	20A	30A
Maximum charging voltage	Low:14.2V,Default:14.5V,High:15.2V
The largest output current	12A	24A	35A
Low voltage protection voltage	10.5V(24 battery*2)
Low pressure recovery voltage	12.5V(24 battery*2)
Load overload automatic recovery	30S
Double USB output	5V 2.1A
Load relating to open time	0-24 hours can choose
Infrared remote control distance	>5m
Pieces/CTN	40pcs	40pcs	40pcs
Weight/CTN	14.05kg	14.3kg	21kg
Dimensions/CTN	522740cm	522740cm	542744cm
