New design 5kw 10kwh home energy storage system

5kw 10kwh home energy storage system

New design 5kw 10kwh home energy storage system

Energy Storage System

Features:

Home Hybrid Energy Storage System
Features
• Can be connected to single-phase AC, 48V battery DC and 500V photovoltaic DC, and converted into single-phase 230V AC output
• AC input/PV input lightning protection function: Class II, In=20KA
• AC input/output protection function: overload/short circuit/leakage
• Compliant with CE LVD and EMC directives and EU ROHS directives
• Application: Household use of hybrid energy storage and power supply
INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model
SEM-103
Battery capacity
SEM-103/10KWH
SEM-103/15KWH
SEM-103/20KWH
SEM-103/25KWH
System parameter




MPPT voltage range (V)
90-450
MPPT Voc voltage (V)
500
Number of MPPT routes
2
MPPT peak power (KW)
10
AC input voltage range (V)
90-280 (90-170 power limiting)
Maximum AC input current
60
Input frequency (Hz)
50/60
Input maximum power (KW)
10
Rated DC voltage (V)
51.2
DC voltage range (V)
43.2-58.4
Energy storage




Battery type
Lithium iron phosphate
Battery capacity
51.2V100AH/5.12KWH*2
51.2V100AH/5.12KWH*3
51.2V100AH/5.12KWH*4
51.2V100AH/5.12KWH*5
Battery operating voltage range (V)
42-58
Maximum discharge current (A)
180
Maximum charging current (A)
120
Battery expansion port
200A×1
Expanding the capacity of battery cabinets
-
51.2V100AH/5KWH
51.2V200AH/10KWH
51.2V300AH/15KWH
Output




Phase number
single-phase
Rated value of inverter output (V)
230±5%
AC output power (KW)
10
Output frequency (Hz)
50/60
Communication efficiency
0.99
Photovoltaic MPPT efficiency
0.96
DC inverter efficiency
/
Number of AC output channels
/
Number of USB output channels
/
Protection function




Photovoltaic input short circuit protection
Yes
Photovoltaic input overvoltage/undervoltage protection
Yes
Photovoltaic input lightning protection
Yes
AC input short circuit protection
Yes
AC input overvoltage/undervoltage protection
Yes
Battery input short circuit protection
Yes
AC output short circuit protection
Yes
AC output leakage protection
Yes
AC output overvoltage/undervoltage protection
Yes
AC output overload protection
Yes
Over temperature protection
Yes
Additional features




Photovoltaic power generation metering
Voltage, power, electrical degree
Municipal electricity metering
Voltage, power, electrical degree
Inverter output electricity metering
Voltage, power, electrical degree (optional)
display
7-inch color touch screen
communication
Wireless: WIFI+Bluetooth
Wired: RS232 (RJ45)
Cloud Data Platform - Web Page
Yes
Cloud Data Platform APP
Yes
Environment




working temperature
-10℃-40℃
Working humidity
0%-95%RH
altitude
4000m (derating above 2000m)

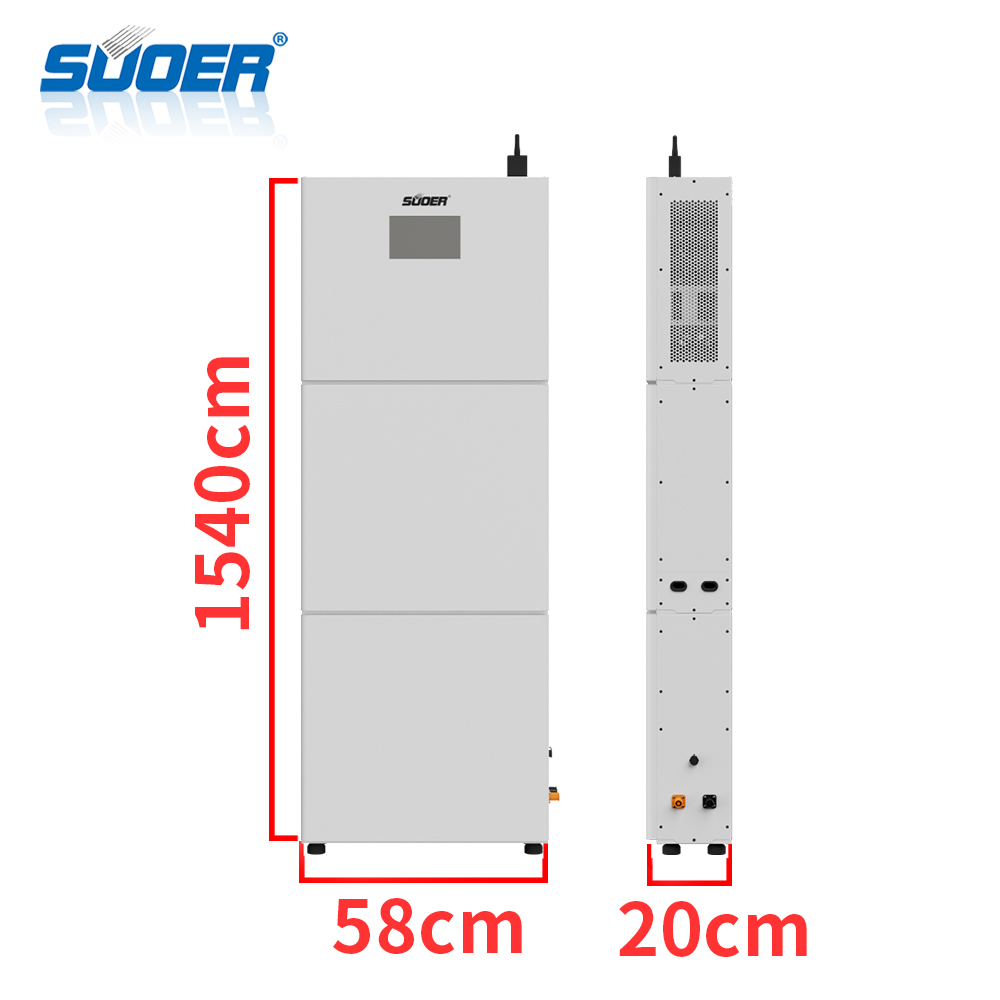

Size and weight




size(Height x width x depth, mm)
1580×580×200
Integrated machine: 1580x580x200
Battery cabinet:
550x580x200
Integrated machine: 1540x580x200
Battery cabinet:
1090x 580x200
Integrated machine: 1540x580x200
Battery cabinet:
1630x580x200
Weight (kg)
Case: 47; Battery: 41; Inverter: 15
Installation method
Fixed on the ground against the wall
Cooling method
Forced air cooling
Protection level
IP20
Meets standards




CE
EN/IEC 62040-1:2019/A11:2021 EN 62109-1:2010 EN 62109-2:2011
Battery:EN/IEC 62619 UN38.3 MSDS
ROHS
Yes
Yes
Yes
Yes
