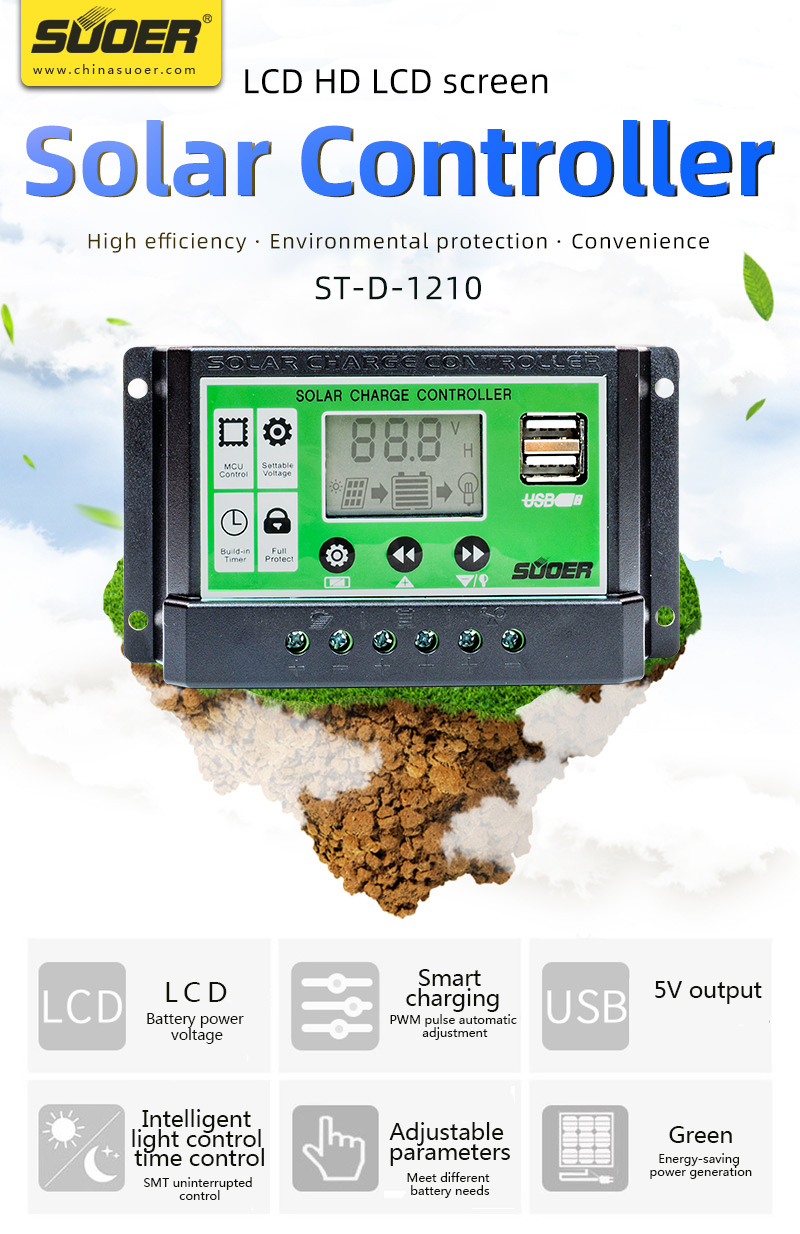

10A Solar PWM Charge Controller

10A Solar PWM Charge Controller with LCD Display Smart 12V 24V Solar Charger

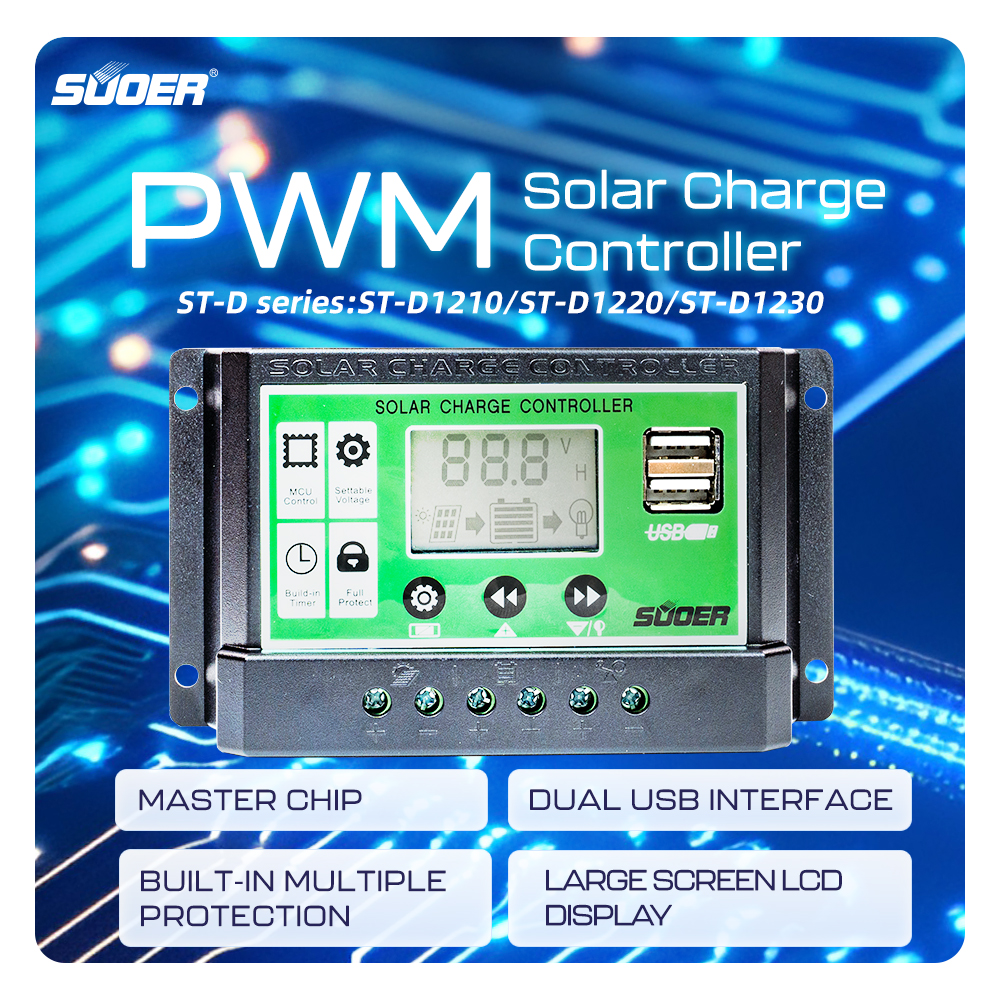

PWM Solar Controller

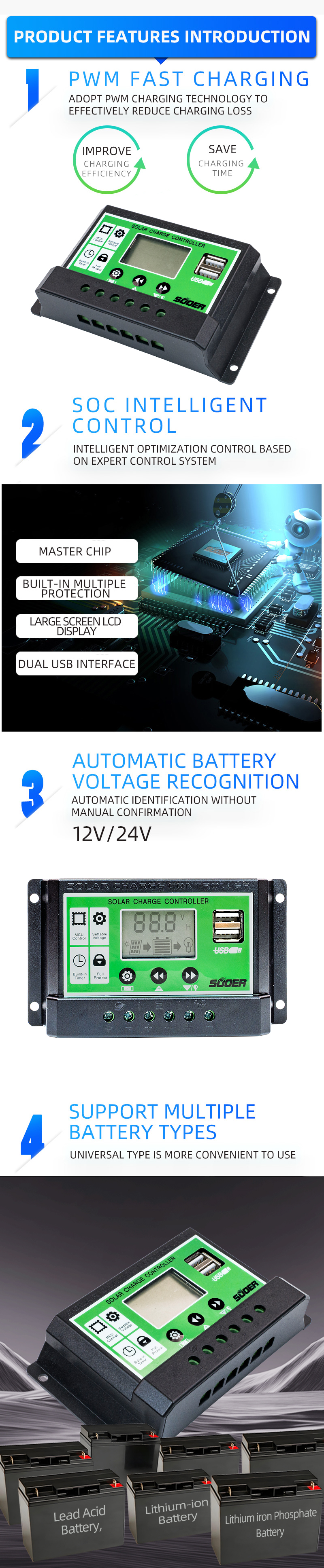

1. Clock timing function

2. Built-in two 5V 2.1A USB interfaces

3. Extreme Low Power Consumption

4. Built-in IR self-learning infrared remote control to turn the DC loads on and off

5. LCD Display with backlight

6. Adjustable charging voltage(Low:14.2V,Default:14.5V,High:15.2V)

7. Light control mode,Time control mode

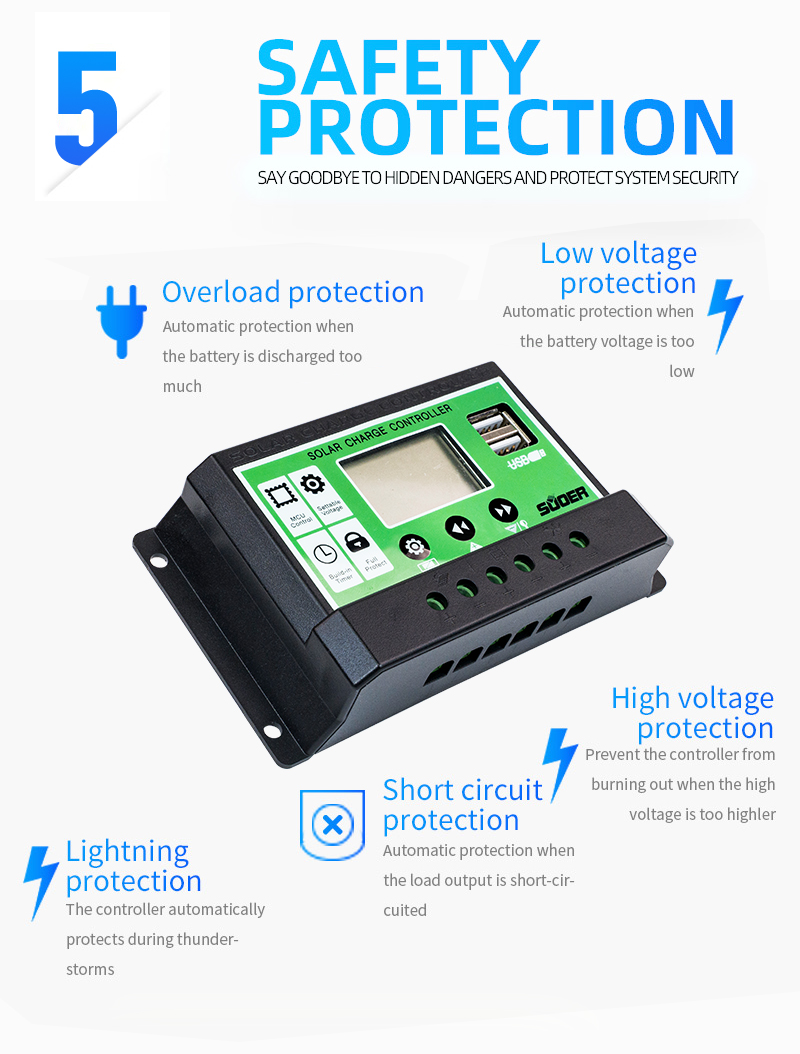

8. Reverse protection,short circuit protection

9. Designed for 12V/24V solar power system

10.Hanging style design makes it convenient to install

11.Available in 10A/20A/30A

12.Simple options,automatic memory retention of users' settings

INQUIRE NOW

Technical Parameter ST-D-series
MODEL		ST-D1210	ST-D1220	ST-D1230	ST-D1240	ST-D1250	ST-D1260
Battery voltage		12V-24VAUTO
Charge current		10A	20A	30A	40A	50A	60A
Discharge current		10A	10A	10A	30A	30A	30A
Max PV Input Power	12V	120W	180W	240W	300W	360W	420W
	24V	240W	360W	480W	600W	720W	840W
Max solar input		12V battery,the highest 23V; 24V battery when the highest 46V
Battery type		B1=Lead acid battery 12V/24Vauto B2=Lithium-ion battery (lithium battery)3 strings 3.7V=11.1V B3=Lithium iron phosphate battery 4 strings 3.2V=12.8V
Equalization		14.4V(B1) 12.6V(B2)14.6V(B3)
Discharge stop		10.7V(B01)9V(B2) 10V(B1)
Dischargereconnect		12.6(B1) 10.5V(B2)12V(B3)
Voltage of open light		Solar panel 8V(Light lights delay)
Voltage of close light		Solar panel 8V(Light off delay)
USB output		2 way USB output,5V/2.5A(MAX)
Self-consume		<10mA
Operating temperature		-35~+60C
Size/Weight		133.57035mm/165g
