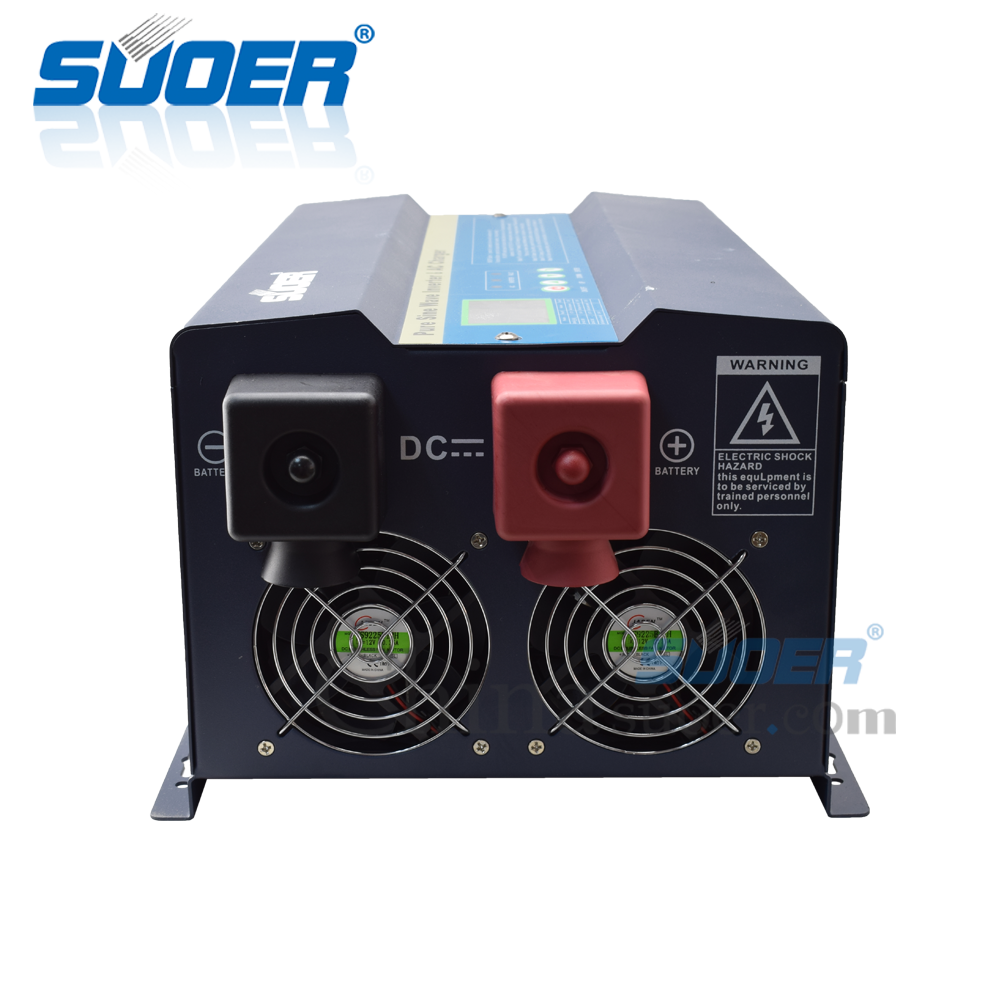

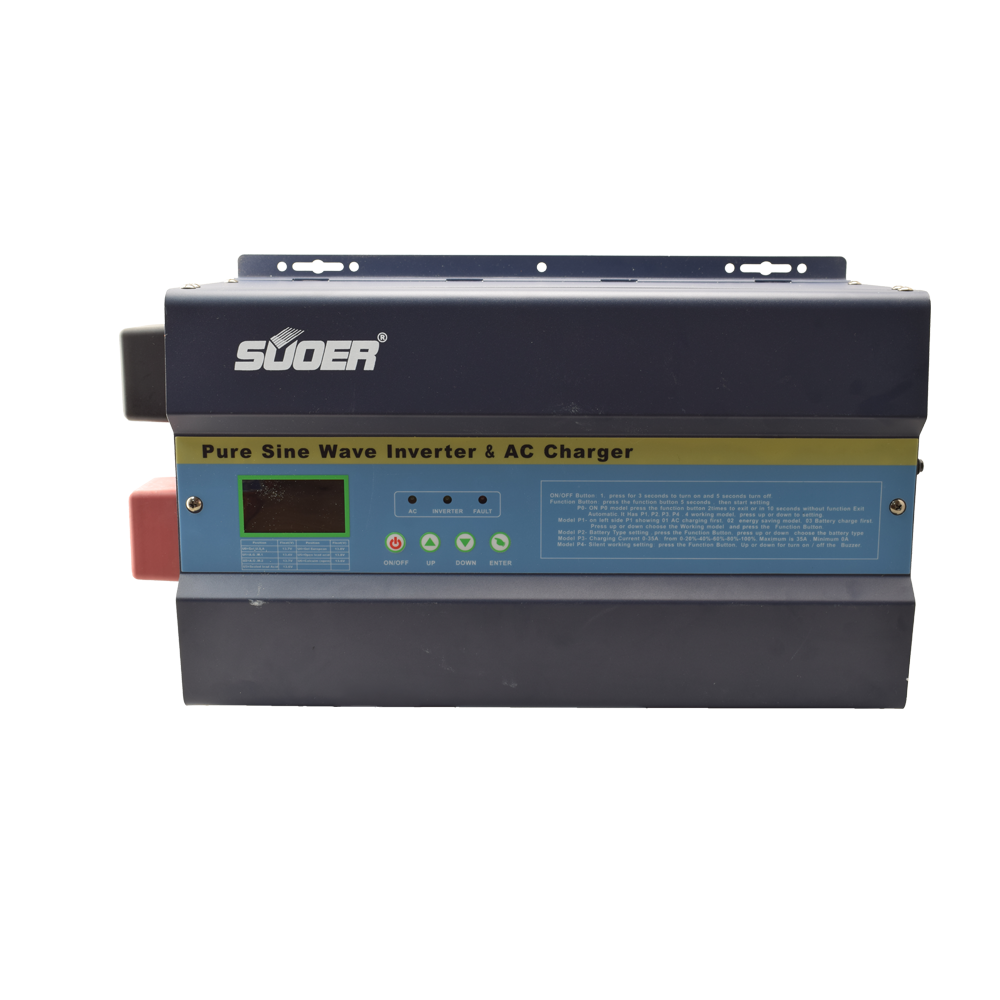

Suoer Inverter 3000w 12v/24v/48v Low Frequency Hybrid Solar Power Inverter with PWM Charger Controller

PL-3KP

Hybrid Photovoltaic Inverter

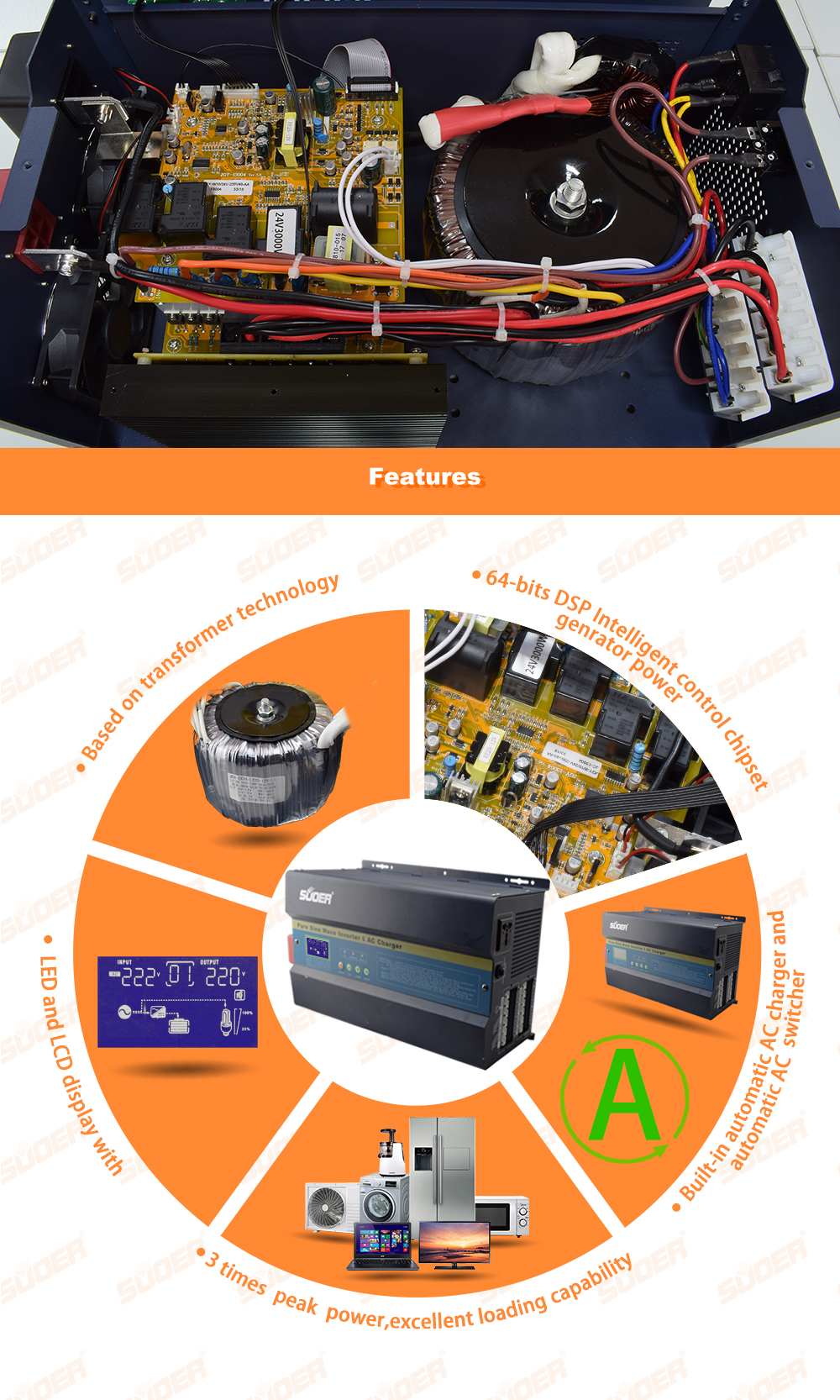

Features:

64-bits DSP Intelligent control chipset.

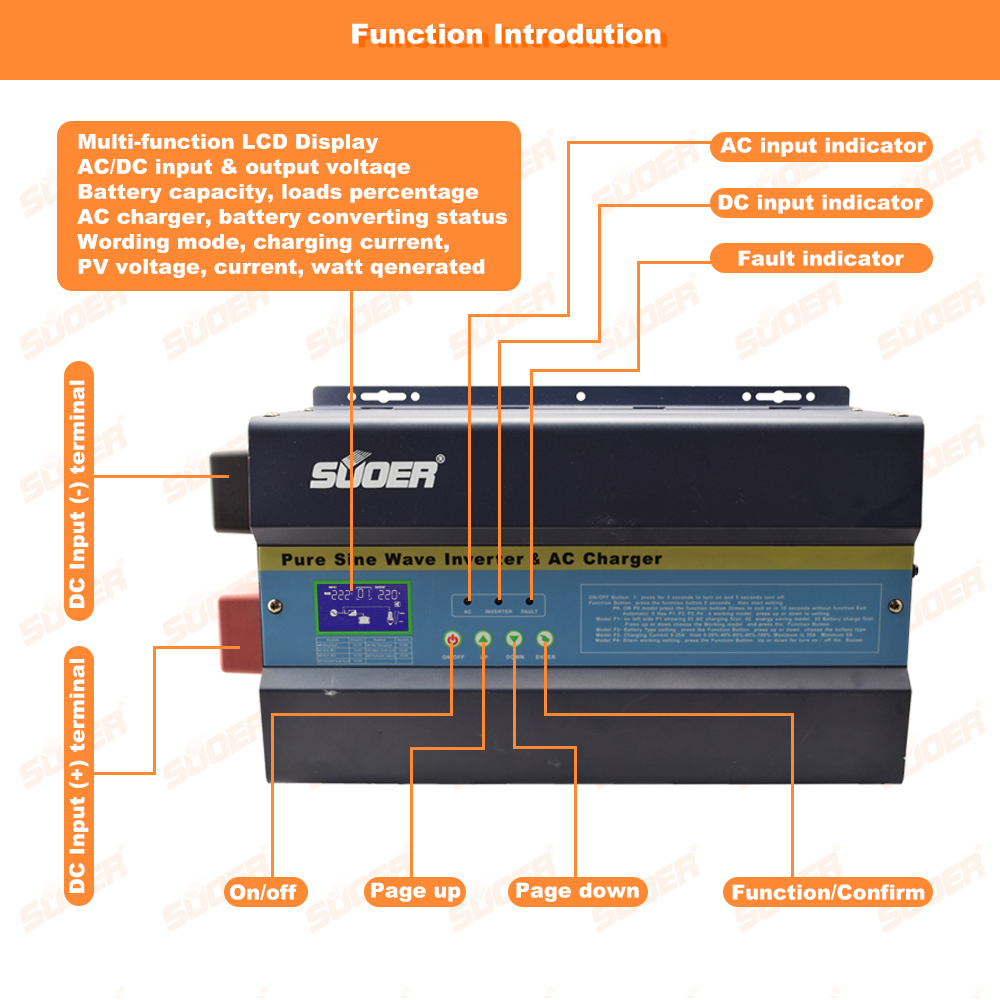

LED and LCD display with multi-function,Real time display of dynamic values.

Built-in automatic AC charger and automatic AC mains switcher. Switch time ≤5ms.

Built-in PWM solar charging controller,maximize the solar energy.

High Transfer efficiency is above 90％.

Continuous stable pure sine wave output with built-in AVR stablizer.

3 times surge power,excellent loading capability.

INQUIRE NOW

SEND ENQUIRY

Specifications

Model No		PL-3KP	PL-4KP	PL-5KP	PL-6KP
Capacity	Rated power	3KW	4KW	5KW	6KW
	Peak power	9KW	12KW	15KW	18KW
Input	Standard battery voltage	12/24/48VDC	24/48VDC
	AC input voltage range	175-275VAC
	AC input frequency	50Hz: 40-60Hz 60Hz: 55-65H
Output	Conversion efficiency	≥90%
	Output voltage	220VAC ±3%(battery model)
	Output frequency	50/60Hz±0.5Hz(battery model) Automatic tracking (mains mode)
	Output wave form	Pure sine wave
Other	Protect	With over - voltage, overload, low - voltage, high - temperature and short - circuit protection
	Display	LCD and LED display
	Cooling way	Intelligent speed control air cooling
	Communication	RS-232/USB/SNMP(optional)
AC charging	AC charge voltage	13.6-14.2VDC(12V)/27.2-28.4VDC(24V)/54.4-56.8VDC(48V)
	AC charge current	The charging current of 0-35a is adjustable
Working mode (optional)	01	AC priority mode
	02	Energy saving mode
	03	Battery priority mode
Solar charge controller	Charge current & discharge current	30A -50A (optional)	30A -60A (optional)
	Max solar input power	420W (12V) / 840W (24V)	1400W (24V) / 2800W (48V)
	Max input voltage range	30VDC(12V)/55VDC(24V) /80VDC(48V)
	Temperature compensation	4mv/℃
	Charging mode	PWM intelligent charging
	Protect	It has over charge, over discharge, overload, short circuit and solar reverse protection
The work environment	Temperature	0~50℃
	Humidity	＜95%(No dew)
Physical	Dimention,D x W x H(mm)	460 x 245 x 200	630 x 280 x 200
	Net weight (kg)	26	31.5	33.5	33.5
Packing	Dimention,L x W x H(mm)	530 x 335 x 255	740 x 355 x 275
	Gross weight (kg)	28.3	34.9	36.9	38.9
	Quantity Per Carton	1 set per carton

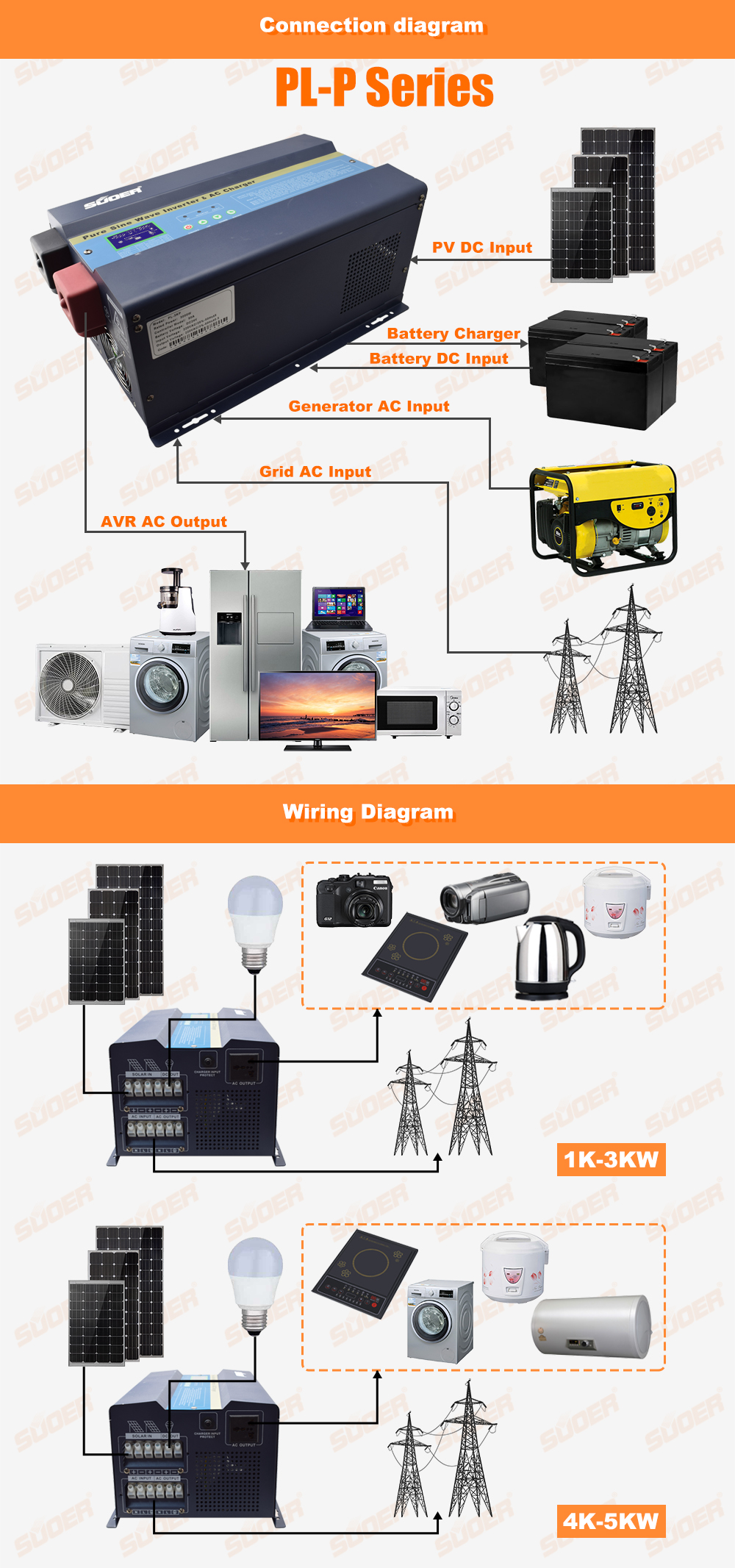

Off-grid Charger Solar Inverter, Low frequency pure sine wave inverter. Based on transformer technology,strong loading capacity,used for all kinds of home/office equipments,solar power system.
