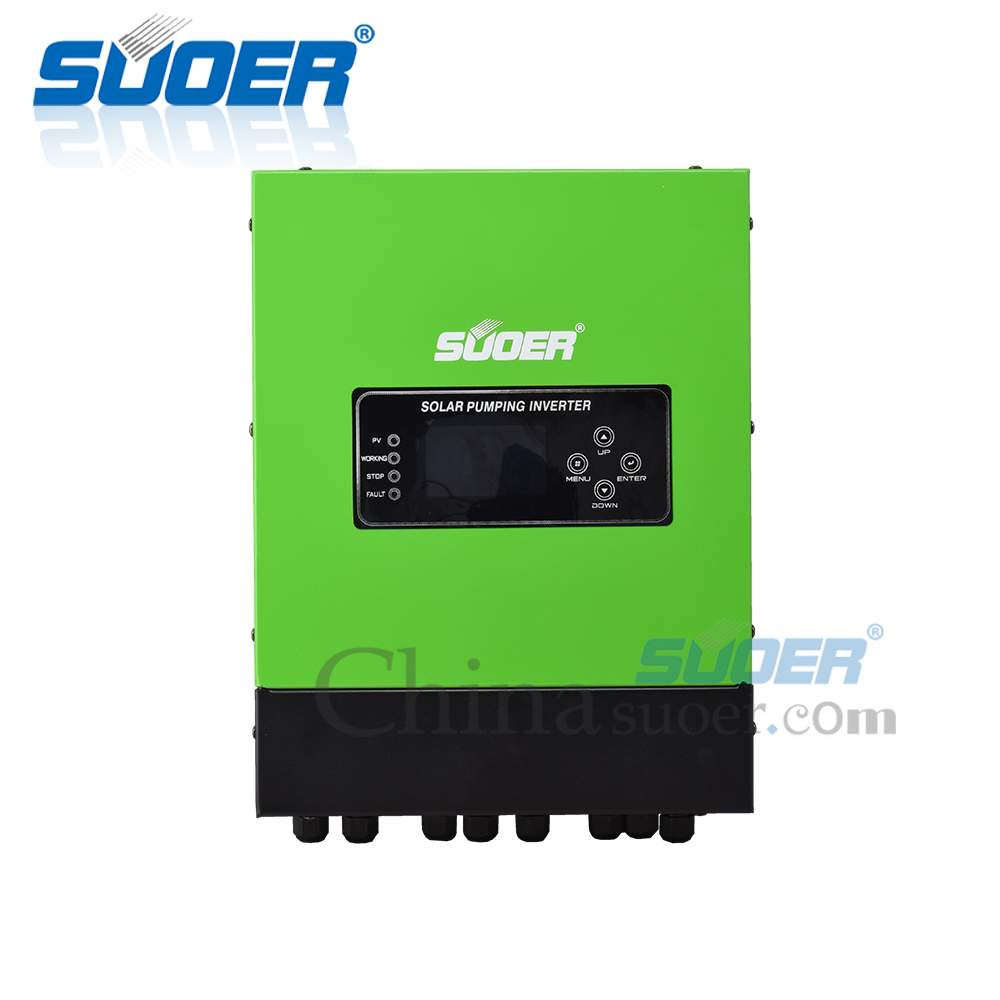

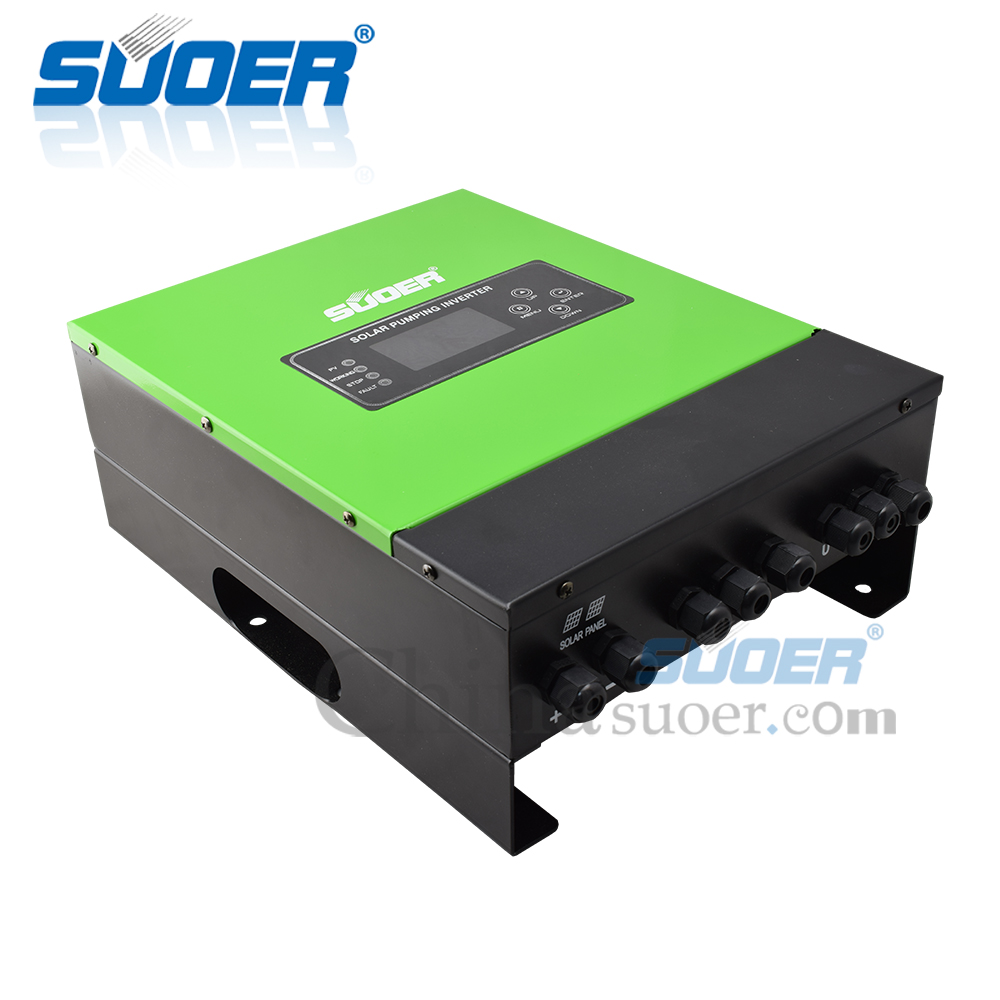

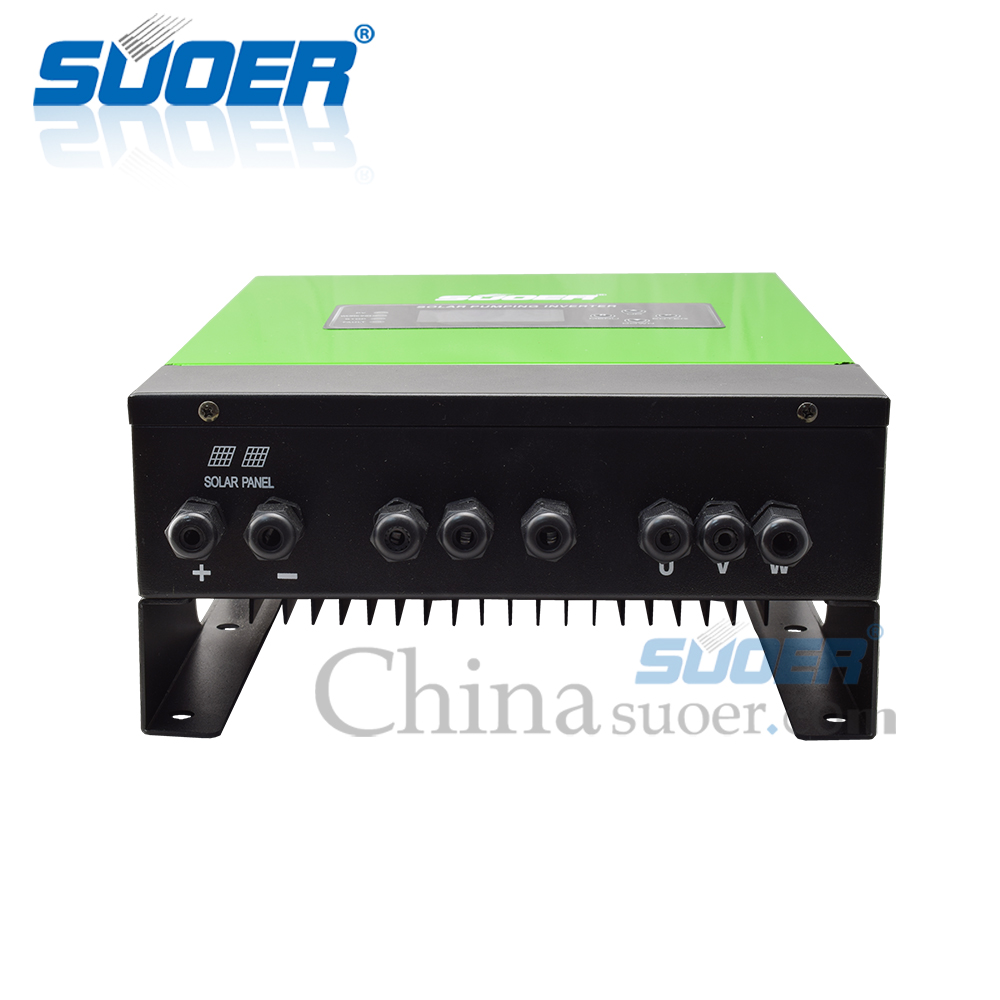

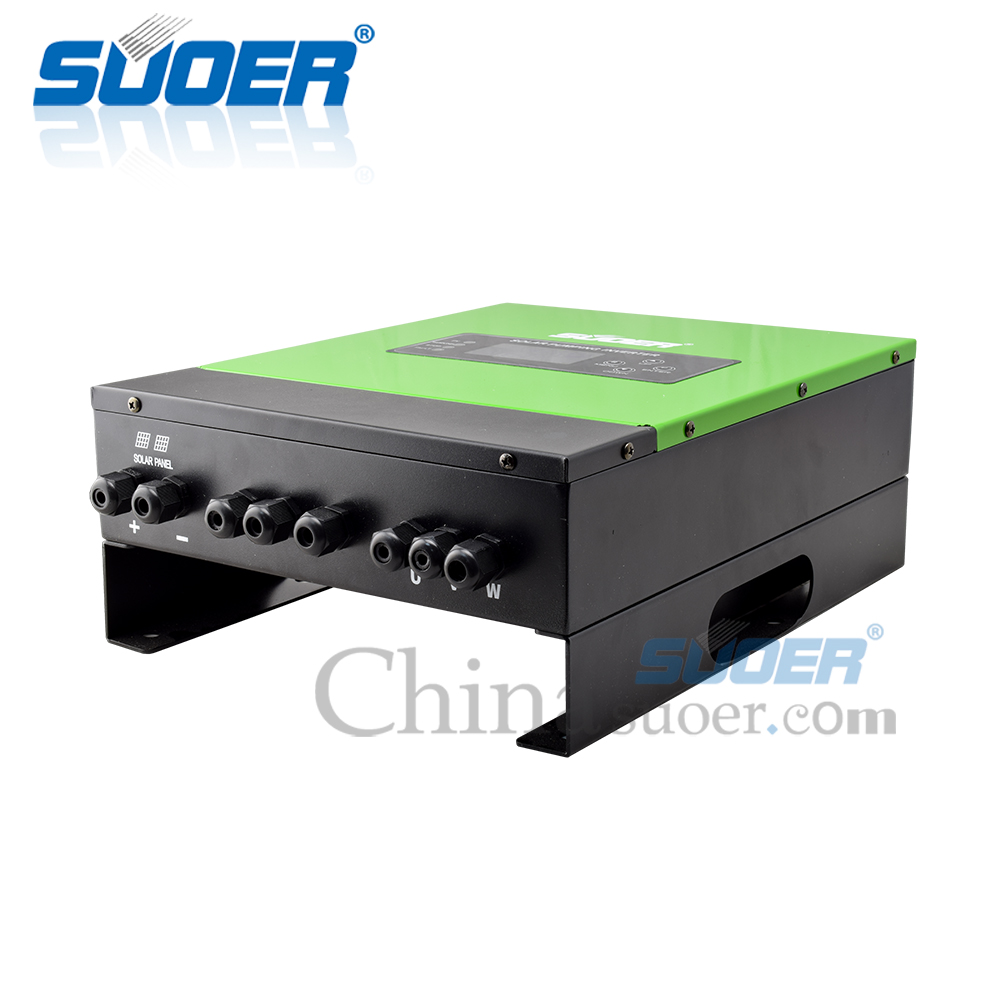

Suoer Factory Price 5.5Kw 380V Off Grid Hybrid Solar Water Pump Inverter

SOP-5K5H

Hybrid Photovoltaic Inverter

Features:

Solar panel solar pumping inverter, three phase AC pump and water storage device.

The solar pumping inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole, river, lake etc, to the storage device.

The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels. It will make the system to maximize efficiency to get the water as much as possible.

The solar pumping system fulfills concept of low carbon, energy conservation, environmental protection to improve the living standard in water-deficient area.

INQUIRE NOW

SEND ENQUIRY

Specifications

SOLAR PUMPING INVERTER
Model	SOP-750LS	SOP-1K1L	SOP-2K2L	SOP-5K5H	SOP-7K5H	SOP-8K5H	SOP-11KH	SOP-22KH
d.c. Input
d.c. Max. Input Voltage	450Vdc		880Vdc
Recommended MPPT Voltage	120~400Vdc	150~400Vdc	460~850Vdc
d.c. Max. Intput Current	7.5A	8.8A	5A	12A	16.3A		24.4A	49A
Max. MPPT Efficiency	>99%
Number of String	1		2		3			1
a.c. Output
Max. Motor Output Power	750W	1100W	2.2KW	5.5KW	7.5KW	8.5KW	11KW	22KW
Rated Output Voltage	220V , single phase		380~460Vac,three phase
Output Frequency Range	0~50/60Hz
Rated Output Current	7.2A	10A	6A	13A	18A		21A	42A
Other Parameters
Weight	9.5kg		13.9kg				19.9kg	31.5kg
Dimension(LWH)	350278179mm		420310229mm				360500176mm	460580251mm
Protection Class	l
Protection Level	IP65
Operating Temperature	-25℃~+60℃		﹣25℃+60℃; above 60℃ need derate operating
Cooling Way	Natural Cooling						Force Cooling
Display	LCD
Communication	RS485/GPRS
Altitude	3000m;above 3000m need derate operating
Noise Emission	＜60dB		＜50dB
Compliance	EN50178;IEC/EN62109-1

Solar pump application

1.Daily water using

2.Rural and town water supply

3.Agriculture imitation

4.Pasture animal husbandry

5.Deset control

6.Swimming pool

7.Desalinization of sea water

8.Scenic fountain
