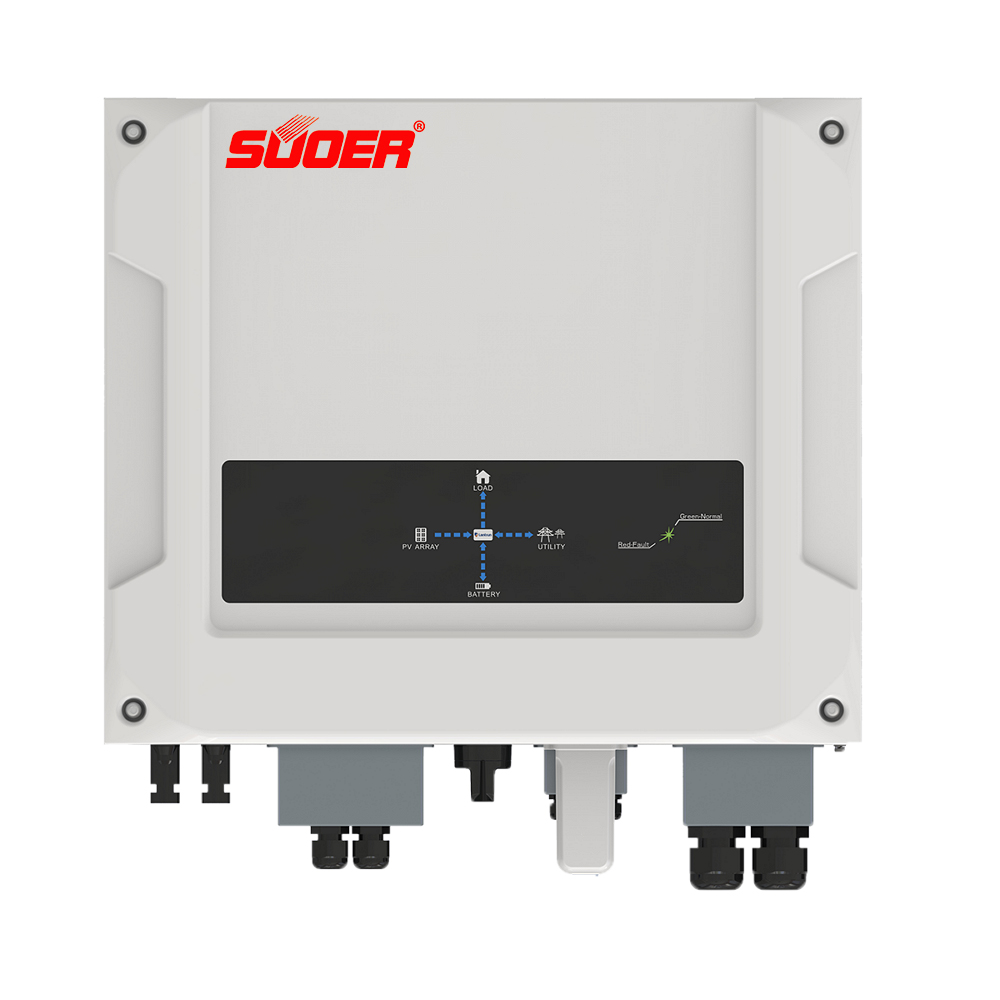

Suoer 5Kw Off Grid Inverter Hybrid Solar Energy Storage Inverter for Home Solar Power Inverter 5000w

HSI-5000

Products

Features:

Li-ion /Lead-acid battery

Operation: On-grid(5kW), Backup(3kW)

Charging and discharging(3kW)

Zero export to grid

U-disk for software updating

Without LCD, no risk of dust or water

Separate APP setting/monitoring

Wi-Fi/GPRS

Flexible local monitoring through APP, Pad or PC

Free communication choices through Wi-Fi, GPRS or RS485

Flexible monitor through Lantrun APP, Pad or PC

Fast trouble shooting through USB, webserver or Lantrun APP

INQUIRE NOW

SEND ENQUIRY

Specifications

Model Specifications	HSI-3600	HSI-4600	HSI-5000

Input Data (DC)
Max. DC power	3800W	5000W	5400W
Max. DC voltage	600V
Start voltage	100V
DC nominal voltage	360V
PV voltage range	100V-600V
MPPT voltage range	120V-550V
Max. input current per string of tracker A/tracker B	11A/11A
Number of independent MPP inputs	2
Output Data (AC)
Nominal AC output power	3600W	4600W	5000W
Max. AC apparent power	3600VA	4600VA	5000VA
Max. output current	16.4A	21.0A	22.8A
AC nominal voltage; range	220V/230V/240V; 180Vac-280Vac
AC grid frequency; range	50,60Hz;±5 Hz
Power factor at rate power	1
Power factor	0.8leading…0.8lagging
THDi	<3%
AC connection	Single phase
Battery
Battery type	Li-ion or Lead-acid
Norminal voltage	51.2V
Battery capacity	>=100Ah(depending requirement)
Energy	5.0kWh
Max. discharging /charging power	2500W / 2500W
Charging curve	3-stage adaptive with maintenance
Operating voltage range	46-57V
Max. charging/discharging current	50A / 50A
Backup Output
Output rate power	2500W
Output voltage	230Vac ±2%, 50Hz (60Hz Optional)±0.2%, THDv<3%(linear load)
Efficiency
Max. efficiency	97%	97.10%	97.10%
Euro - eta	96.50%	96.50%	96.50%
MPPT efficiency	99.50%	99.50%	99.50%
Protection Devices
DC reverse polarity protection	Yes
DC switch rating for each MPPT	Yes
Output over current protection	Yes
Output overvoltage protection-varistor	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Integrated all - pole sensitive leakage current monitoring unit	Yes
General Data
Dimensions (W / H / D)	*495420165mm*
Weight	24kg	24kg	24kg
Operating temperature range	-25...+60⁰C (-13...+ 140⁰F) With derating above 45⁰C（113⁰F）
Noise emission (typical)	≤ 25 dB(A)
Altitude	Up to 2000m（6560ft）Without power derating
Relative humidity	95%
Consumption: operating (standby) / night	<5W / < 0.5 W
Topology	Transformerless
Cooling concept	Natural
Environmental protection rating	IP65
Features
DC connection	H4/MC4
AC connection	Screw terminal
Display	LED
Interfaces: Wi-Fi/USB/GPRS/RS485	Yes/Yes/Opt/Opt
Warranty: 5 years / 10 years / 15 years	Yes/Opt/Opt
Certificates and approvals	CE,IEC 62109-1&2, VDE 0126-1-1,G83/2, AS4777&AS/NZS 3100

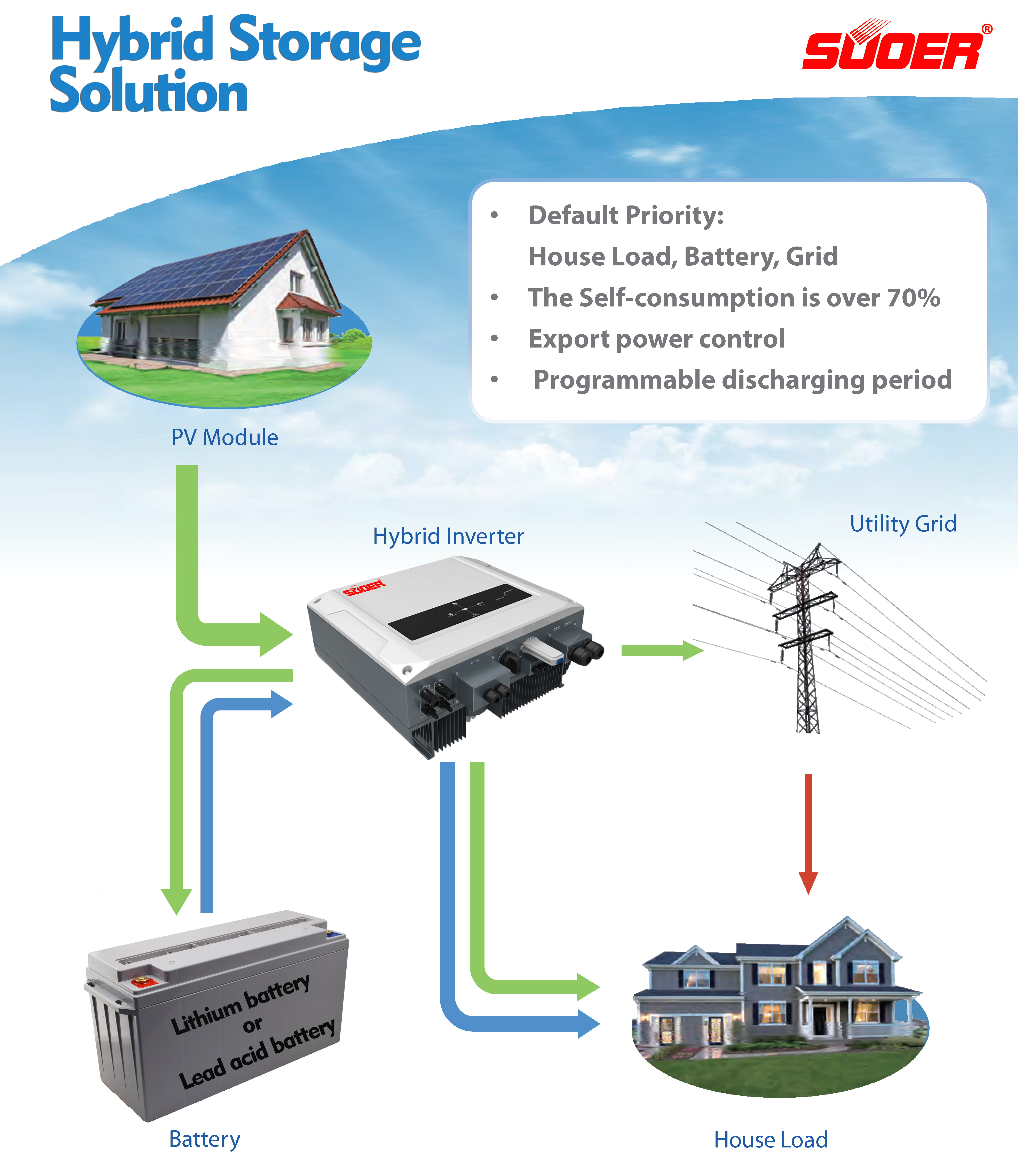

In the daylight, Hybrid energy storage system produces electricity through solar power and priory satisfy house loads, e.g. refrigerator, TV, surplus electricity will be stored into battery (either Lead-acid or Li battery), if there’s still extra power, it can be sold to electricity grid.
Your storage battery then release power at the time (e.g. 6p.m. to 8p.m.) that you have set in advance. That’s how the hybrid system helps to save peak-time electricity bill.
